Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZTE ZXDU68 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Output Power: | >500W | Output Type: | Single |
|---|---|---|---|
| Output Voltage: | 53.5V | Output Frequency: | 50-60 |
| Output Current: | -48 | Input Voltage: | 220V |
| Skype: | Poppylee7 | Port: | Shenzhen |
Highlights
High efficiency module with peak efficiency up to 96.3%, in the sleep mode, the output power of the rectifier is lower than 4W.
80V AC~300V AC wide input voltage, high adaptive to poor grid to protect battery.
The system can be remotely managed through a computer installed with Web explorer anywhere if Ethernet is available.
Managing Data in Batches Users can set the parameters in batches, copy records and upgrade programs via a USB disk.
QUY shortcuts of rectifier, convenient to fast query and fault location.
Provide dry contact,RJ45,RS232,RS485,USB interface.

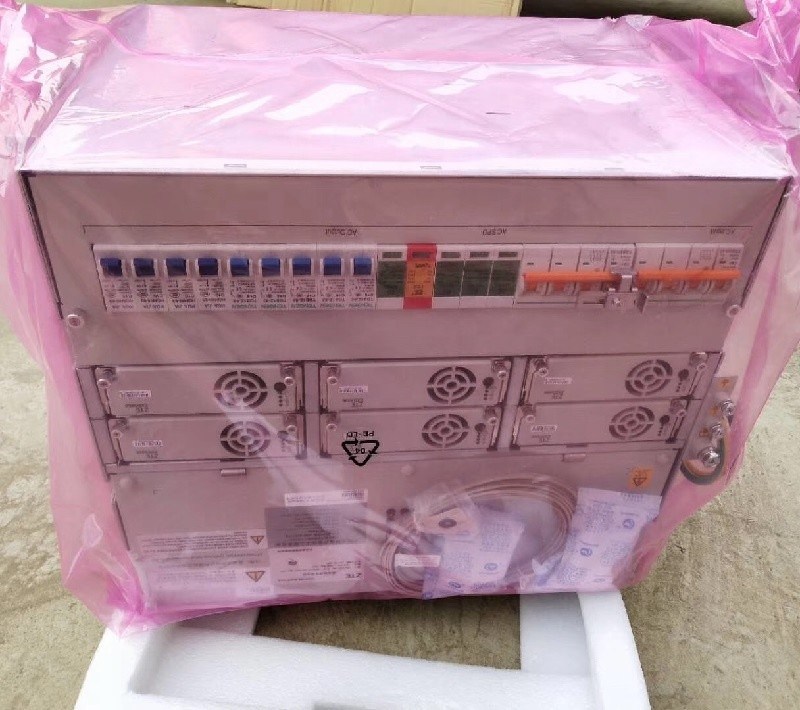

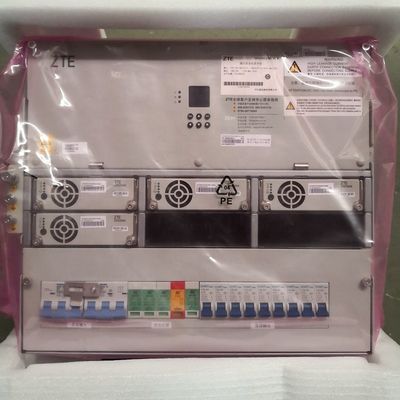

Embedded DC power system
| Parameters | Description |

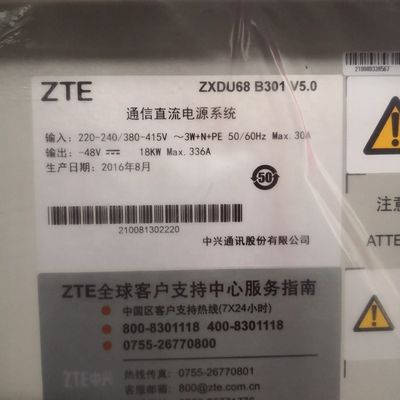

| Model Type | ZXDU68 B301( V5.0R11M03) |
| Rectifier module | ZXD3000 (V5.5), 6 maximum |
| Monitoring unit | CSU518B02 |
| AC input | |
| Input type | three-phase five-wire (L1/L2/L3/N/PE) |
| Input voltage range | 80V AC ~ 300V AC |
| Frequency | 45Hz~66Hz |
| Input power factor | ≥0.99 (30%~100% load) |
| AC SPD | Imax=40 kA |
| DC output | |
| Output voltage | -53.5 V (-42V ~ -58V adjustable) |
| Output power | 18kW (with rated load) |
| System efficiency | ≥95.5% (peak efficiency); ≥94.5%(at rated load); |
| Load distribution | LLVD1+ BLVD; 16p at most (Actual configuration is subject to the specified contract.) |
| Battery distribution | 4 × 125 A/1P MCBs |
| DC SPD | Imax=15 kA |
| Operation environment | |
| Operation temperature | -40℃~+75℃, |
| Storage temperature | -40℃~+85℃ |
| Humidity | 10% ~ 95% |
| Altitude | 0 to 3000 m: 100% output power; above 3000 m: The power derating percentage is 1% when the altitude increases by 100 m. |
| Structure | |
| Dimension | 9U ×19 inches× 360 mm (H × W × D) |
| Weight | Chassis weight: 27 kg; Rectifier weight: 2 kg/set |
| Standard | |
| Safety | IEC60950; GB4943 |
| EMC | IEC61000 |
| Others | |
| MTBF | ≥3.2 × 105 hours |
