Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | ZXD3000 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Output Power: | >500W | Output Type: | Single |
|---|---|---|---|
| Output Voltage: | 53.5V | Output Frequency: | 45-65 |
| Output Current: | 50 | Input Voltage: | 220V |
| Port: | Shenzhen |
ZTE ZXDU88 S402 (V6.0) system is a DC power supply system with large capacity, consisting of multiple racks and providing –48 VDC for switching equipment, data products etc.

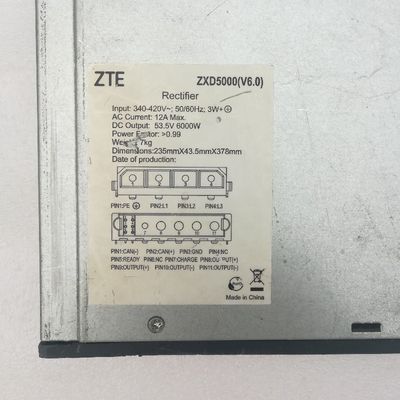

ZXD5000 rectifiers are installed in the rectifier rack (RECR), It uses advanced switching rectifier technology, with rated input three-phase AC 380VAC, and rated output power is 6kW. The rectifier peak efficiency is higher than 96.2%.
Features of Rectifier ZXD5000 Module:
High efficiency, saving more power
The peak efficiency of the module is higher than 96.2%,and in the sleep mode, the rectifier output power consumption is lower than 4W.
High power density, saving space and rental
The power density of the rectifier is 25.52W/in3 to save space, helping form a large-capacity power system up to 120kW in one rack.
High compatibility with Powerful expansion capacity
The full output is 360kW and the max configuration of ZXDU88 S402 system consists of four DC distribution racks, three rectifier racks and four AC distribution racks.
Digital design, high Reliability
Rectifier adopts DSP+MCU double digital circuit control and the system adopts CAN+RS485 double bus control. So the system is more reliable and the transmission speed is faster.
Application
Key Features: | Benefits: |
The hibernation power is less than 2W. | Saves electricity and reduces OPEX. |
Wide operating temperature of rectifier modules range from -40 to 70°C | Highly adaptable to adverse environment saves expenditure for air conditioners. |
Wide input voltage range from 80 to 300Vac | Adaptable to various and unstable power grids. |
THD is less than 2.8% | Minimal interference to equipments on the same commercial power supply. |
Space efficient cabinet with 400mm depth | Save 30% of space than that of the 600mm depth cabinet and reduces Capex |
Front access design | Easy maintenance, the system can be positioned next to wall to save space. |
RoHS conformed | Environmental-friendly |
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed ZTE product: 1 Year
The Support Contacts:
If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.
Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
