Features Gallery Product Description Request A Quote

Features

Specifications

Output Power: >500W

Output Type: Single

Input Voltage: 220V

Output Voltage: 53.5V

Output Frequency: 50-60

Output Current: -48

Port: Shenzhen

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: ZTE ZXDU58

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

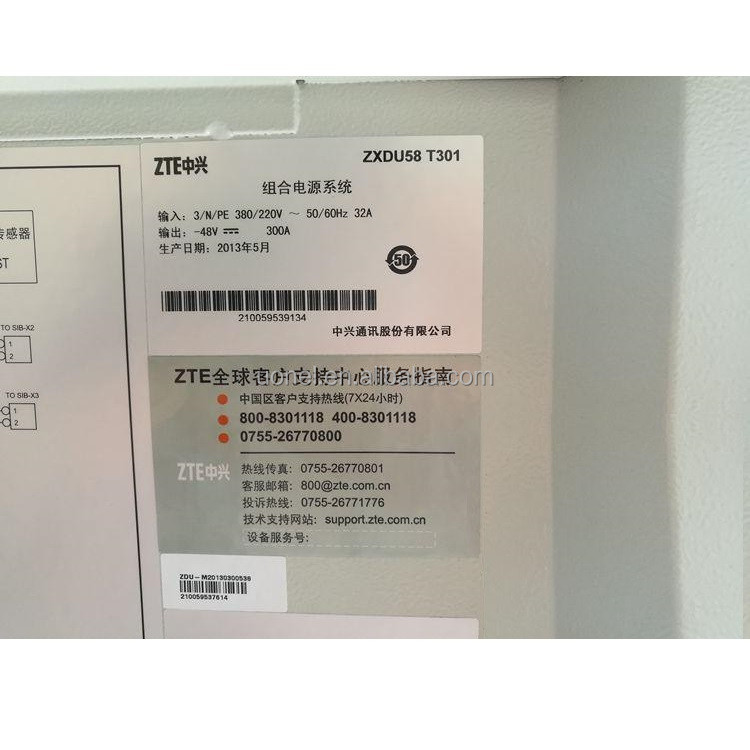

ZTE ZXDU58 T301 Rectifier System ZTE Power Supply

Product Description

ZTE ZXDU58 T301 Rectifier System ZTE Power Supply

Name: ZTE ZXDU58 T301 Rectifier System ZTE Power Supply
Brand: Uonel Co.Limtied
SKU: ZTE ZXDU58
Availability: InStock

ZXDU58 T301 Rectifier System

Nowadays, operators’ network power consumption is keeping rising. And the issues such as difficult to get site acquisition, higher maintenance cost, also restrict operators’ business development. Base on deeply understanding in telecom industry and power technology, ZTE developed ZXDU58 T301 series rectifier system to help operators reduce TCO.

Product Feature

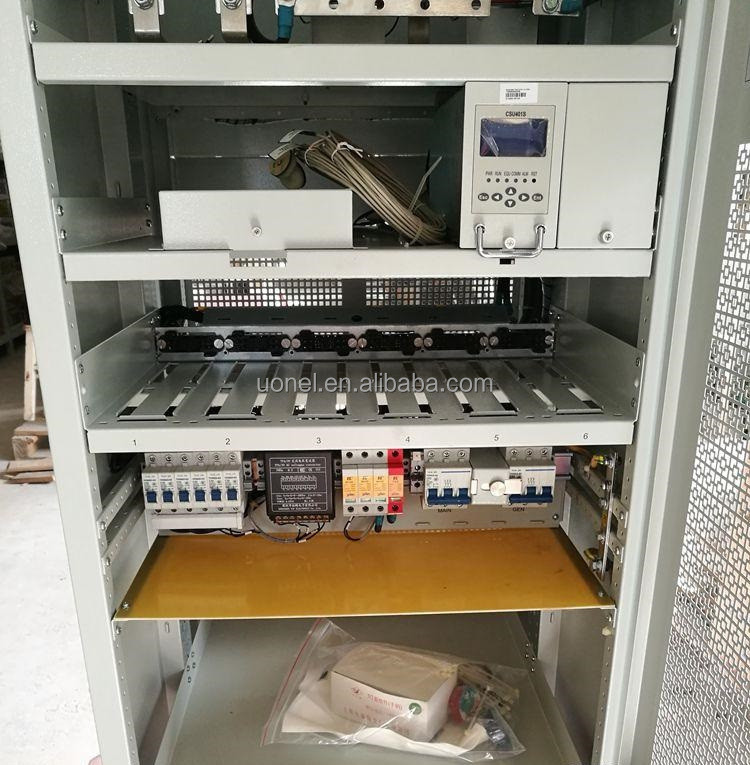

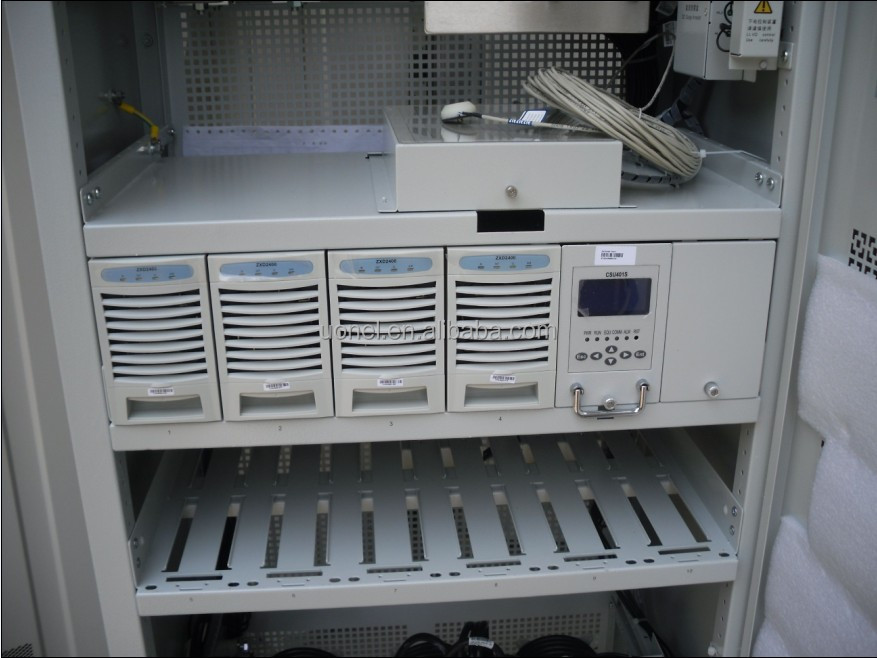

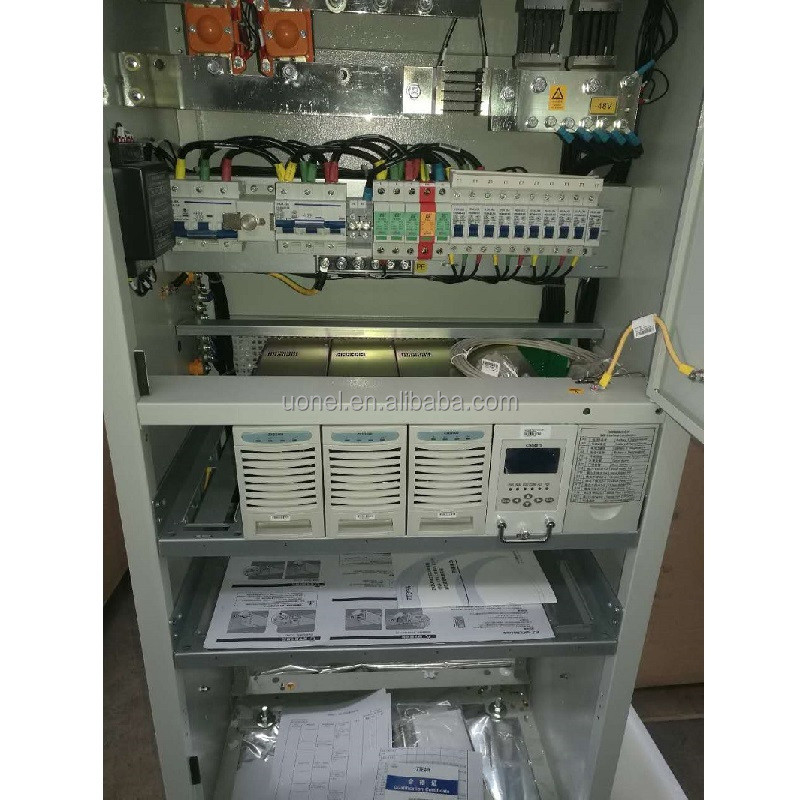

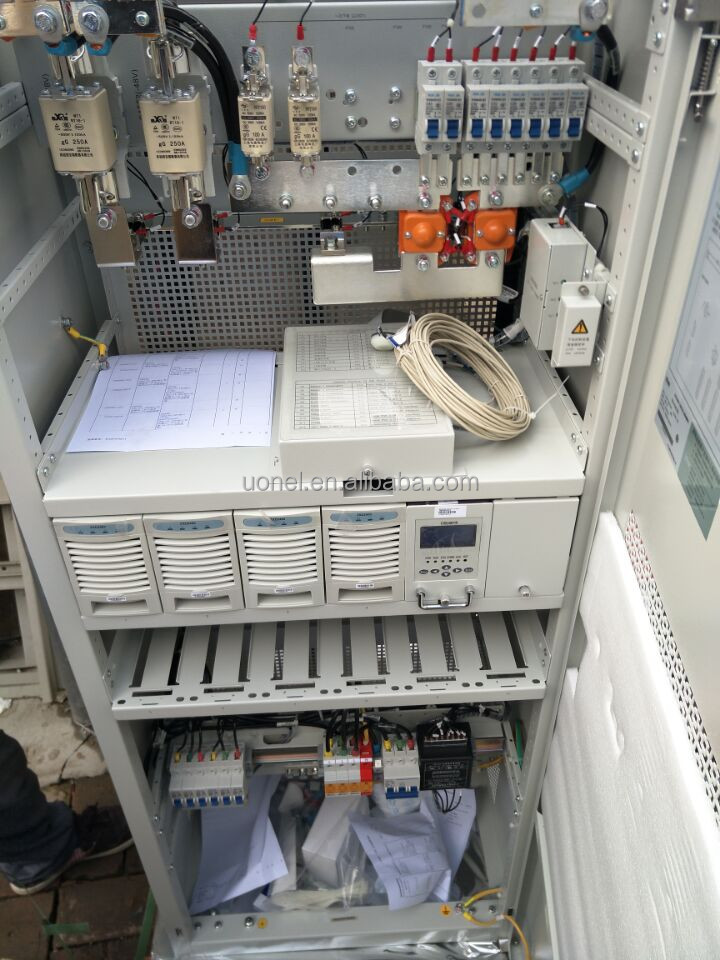

ZXDU58 T301 rectifier system adopts 30A rectifiers. It includes an integral AC and DC distribution with flexible combination of circuit breakers, monitoring unit and rectifiers. The maximum configured capacity is 300A (18kW) with 10 rectifier modules.

Rectifier efficiency is up to 94%
Wide operating temperature of rectifier modules range from -40 to 70°C
Wide input voltage range from 80 to 300Vac
THD is less than 2.8%

Space efficient cabinet with 400mm depth
Front access design
User experience
Low power consumption, reduce electricity expense up to 8%

Compact structure and front access design, save space up to 50%
-40~+70℃ working temperature range, saving temperature control system power consumption
80~300Vac input voltage range, strong grid adaptability and prolong battery lifespan

Warranty

Return Material Authorization (RMA) Process

Standard Hardware Warranty Policy:

Original new sealed ZTE product: 1 Year

The Support Contacts:

If your ZTE products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Company profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.

Our Services

Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
