Features

Specifications

Output Power: >500W

Output Type: Single

Input Voltage: 220V

Output Voltage: 53.5V

Output Frequency: 45-65

Output Current: -48

Size: 2000*600*600MM

Port: Shenzhen

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: ZTE ZXDU58

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

-48V/30A ZXDU58 B900 power system Up to 90A ZTE B900

Product Description

-48V/30A ZXDU58 B900 power system Up to 90A ZTE B900

Name: -48V/30A ZXDU58 B900 power system Up to 90A ZTE B900
Brand: Uonel Co.Limtied
SKU: ZTE ZXDU58
Availability: InStock

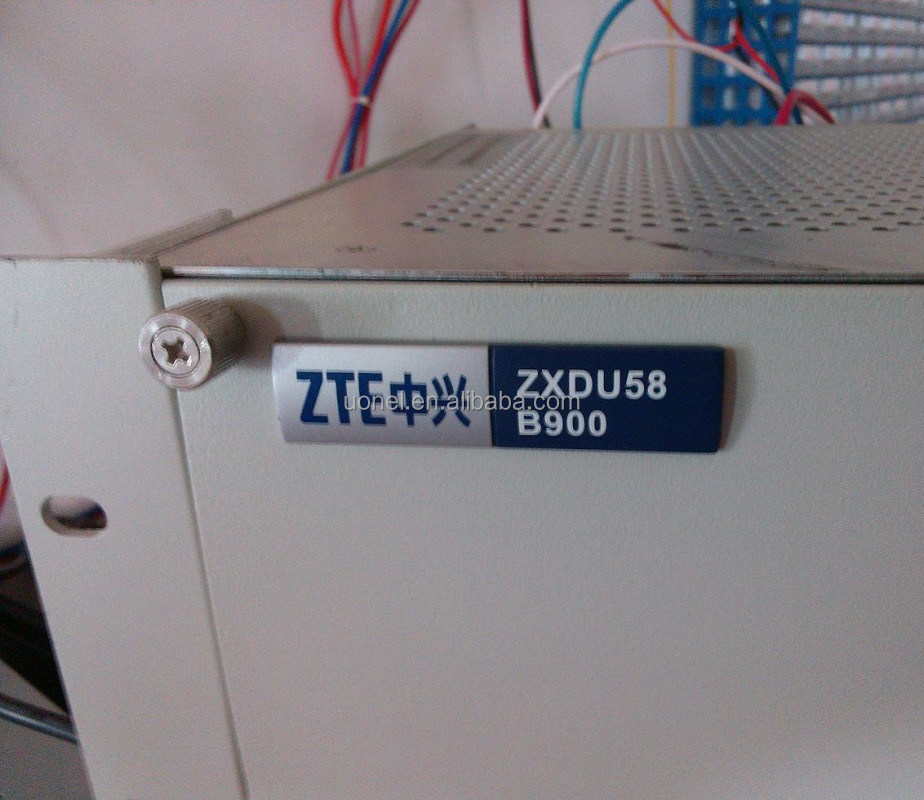

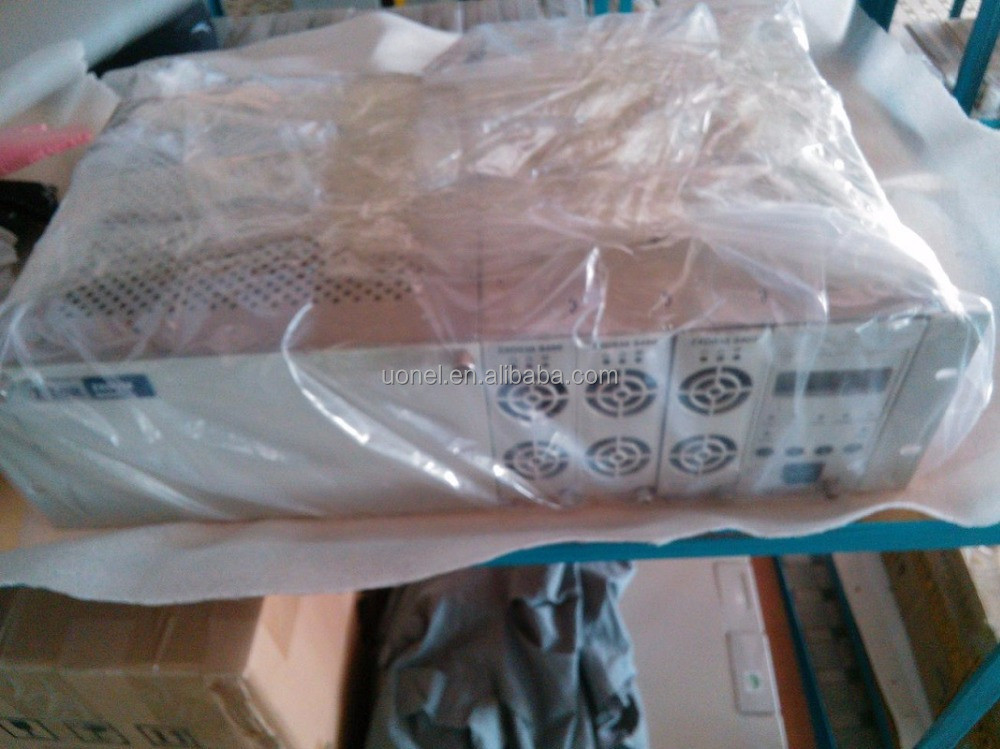

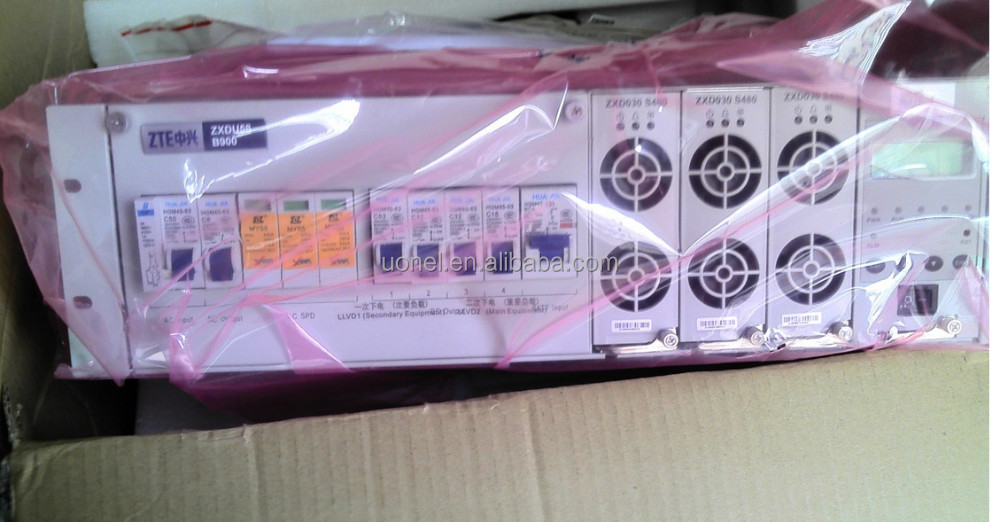

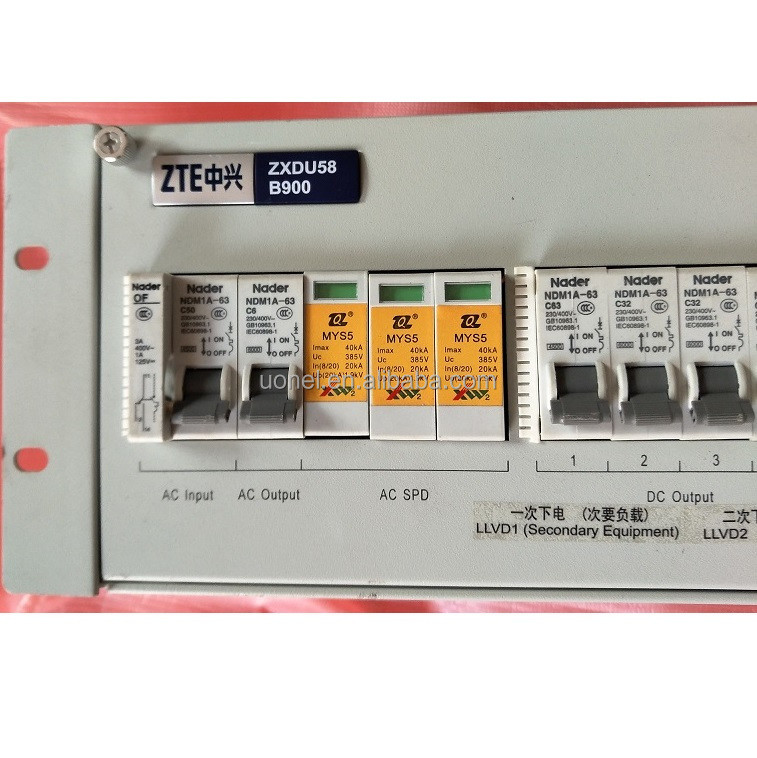

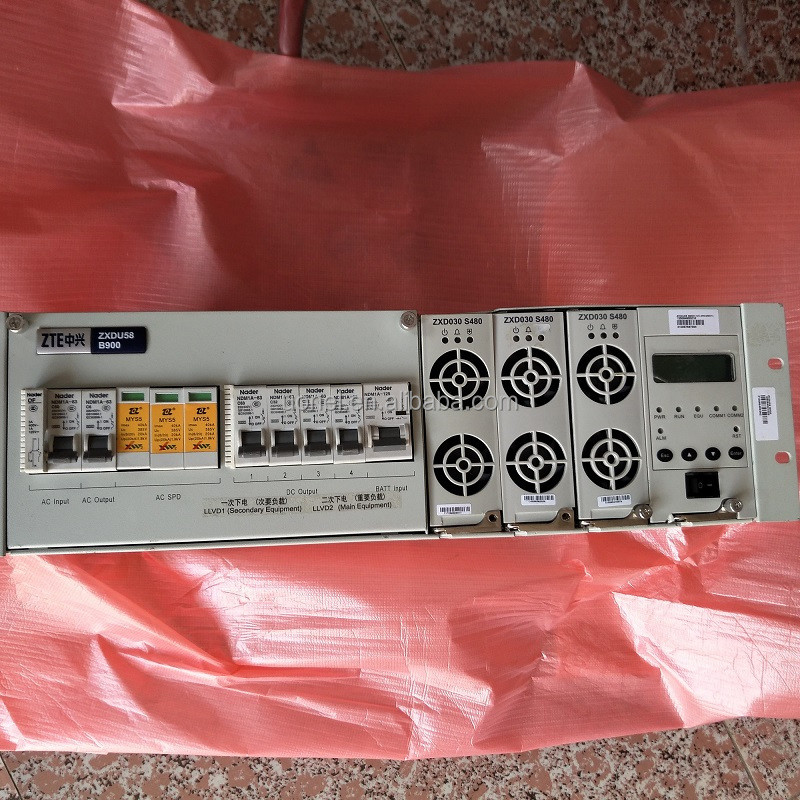

-48V/30A ZXDU58 B900 power system Up to 90A

ZXDU58 B900 is a high frequency switch-mode DC power system designed by ZTE. It is an embedded power system with 19" 3U dimension. It is suitable to install together with telecommunication equipment such as: access equipment, mobile communication equipment, transmission equipment, etc.

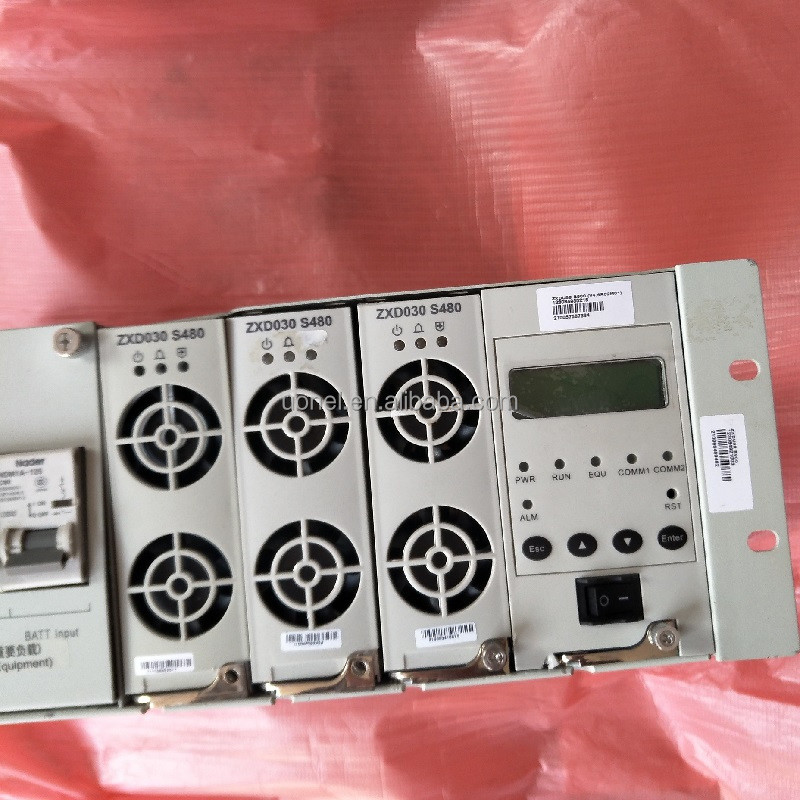

The system is designed capacity up to 90A with three 30A rectifier modules.

Product Feature

Application

GSM/CDMA mobile station
Microwave repeat station
Satellite BTS station
Transmission equipment

Key Features:	Benefits:
Power efficiency is up to 94%, and the hibernation power is less than 2W.	Saves electricity and reduces OPEX.
Wide operating temperature of rectifier modules range from -40 to 70℃	Highly adaptable to adverse environment saves expenditure for air conditioners.
Wide input voltage range from 85 to 300Vac	Adaptable to various and unstable power grids.
THD is less than 2.8%	Minimal interference to equipments on the same commercial power supply.
19 inch rack mounting	Can be installed in the equipment rack to save space
RoHS conformed	Environmental-friendly
Cater to the trend of “optical for copper”	Ideal power solution for FTTx

Delivery

Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.

Company profile

Uonel is one of the biggest Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.

We provide original new Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson with Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.

Our Services

Most of our technical engineers has considerable experience in company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
