Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | USG2110 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Type: | Wired |
|---|---|---|---|
| VPN Support: | Yes | Throughput: | 1Gbps |
| Simultaneous Sessions: | 750000 | Port: | SHENZHEN |
Huawei USG6300 Next-Generation Firewall USG6320-BDL-AC includes 8GE (RJ-45) ports with 2GB memory and IPS-AV-URL Function Group Update Service Subscribe 12 Months. It is designed for Small- to Medium-sized Businesses (SMBs), branch offices, and chain enterprises. It provides fine-grained service access control and service acceleration through context awareness by Application, Content, Time, User, Attack, or Location (ACTUAL).

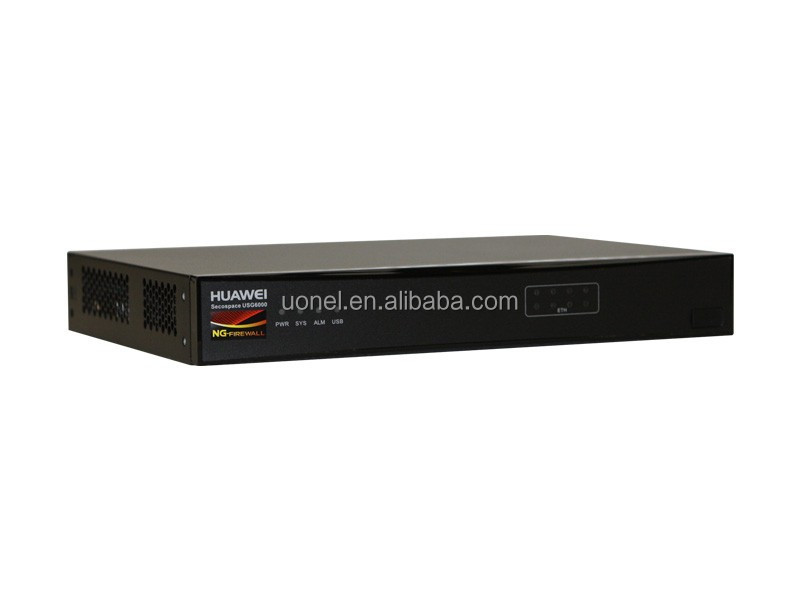

Figure 1 shows the appearance of Huawei USG6320-BDL-AC firewall.
Table 1 shows the Quick Specs.
Product Code | USG6320-BDL-AC |
4G LTE Data Card | Supported |
Console card | 1 (RJ45) |
USB 2.0 card | 1 |
Mandatory service ports | 8 x 10/100/1000M autosensing Ethernet electrical ports |
AC Power Supply | 100V to 240V |
Height | Desktop |
Dimensions (W x D x H) | 300 mm × 220 mm × 44.5 mm |
Features | NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam |
Figure 2 shows the front panel of Huawei USG6320-BDL-AC firewall.
Note:
1 | LED Area: PWR (Power), SYS (System), ALM (Alarm), USB LEDs. |
2 | One USB 2.0 Port |
Figure 3 shows the back panel of Huawei USG6320-BDL-AC firewall.
Note:
1 | One Console Port (RJ45 Only) |
2 | 8 x 10/100/1000M autosensing Ethernet electrical ports |
3 | Reset Button |
Table 2 shows the recommended elements for the Huawei USG6320-BDL-AC firewall.
Category | Model | Description |
Business Module Group | WSIC-8GE | Huawei SVN5800 Secure Access Gateways 8GE Electric Ports Interface Card |
WSIC-8GEF | Huawei 8GE Optical Ports Interface Card for USG6600 Next-Generation Firewall. | |
WSIC-2XG8GE | Huawei 2*10GE Optical Ports+8GE Electric Ports Interface Card for USG6300Next-Generation Firewall. | |
Hard disk Group | SM-HDD-SAS300G-B | SM-HDD-SAS300G-B Huawei 300GB 10K RPM SAS Hard Disk for 1U rack Gateway |
Option Power Group | Power-AC-B | Huawei Power-AC-B 170W AC power module |
Optical Transmitter Module Collection | SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
S-SFP-GE-LH40-SM1310 | Huawei AR G3 Optical Transceiver ,eSFP,GE,Single-mode Module(1310nm,40km,LC) | |
eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module 850nm,0.5km,LC | |
Funtion License | LIC-VSYS-10-USG6000 | Huawei LIC-VSYS-10-USG6000 Quantity of Virtual Firewall (10 Vsys) Software/License |
LIC-SSL-100-USG6000 | Huawei Software/License: Quantity of SSL VPN Concurrent Users License (100 Users) | |
NGFW License | LIC-IPS-12-USG6300-01 | Huawei Software/License: IPS Update Service Subscribe for 12 Months (Applies to USG6310/20) |
LIC-URL-12-USG6300-01 | Huawei URL Filtering Update Service Subscribe for 12 Months(Applies to USG6310/20) Software/License | |
LIC-AV-12-USG6300-01 | Huawei Software/License: Anti-Virus Update Service Subscribe for 12 Months (Applies to USG6310/20) | |
Basic License | LIC-CONTENT | Huawei LIC-CONTENT Content Filtering Function Software/License |
Table 3 shows the comparison of Huawei USG6380-BDL-AC and USG6320-BDL-AC firewalls.
Models | USG6380-BDL-AC | USG6320-BDL-AC |
Mandatory service ports | 4 x 10GE optical ports, 8 x 10/100/1000M autosensing Ethernet electrical ports | 8 x 10/100/1000M autosensing Ethernet electrical ports |
Expansion slot | 2 × WSIC | None |
Hard disk | Optional hot-swappable 300GB 2.5-inch SAS hard disks | Not supported |
Redundant Power Supply | Optional | None |
Features | NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention,bandwidth management, anti-DDoS, URL filtering, and anti-spam | |
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:
Our FREE Huawei Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed Huawei product: 1 Year
The Support Contacts:
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
