Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | USG2110 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Products Status: | Stock | Type: | Wired |
|---|---|---|---|
| VPN Support: | Yes | Throughput: | 1Gbps |
| Simultaneous Sessions: | 750000 | Port: | SHENZHEN |
The Huawei USG6350-AC next-generation firewall provides comprehensive protection in small- to medium-sized enterprise networks, ideal solution for branch locations. It provides fine-grained service access control and service acceleration through context awareness by Application, Content, Time, User, Attack, or Location (ACTUAL).

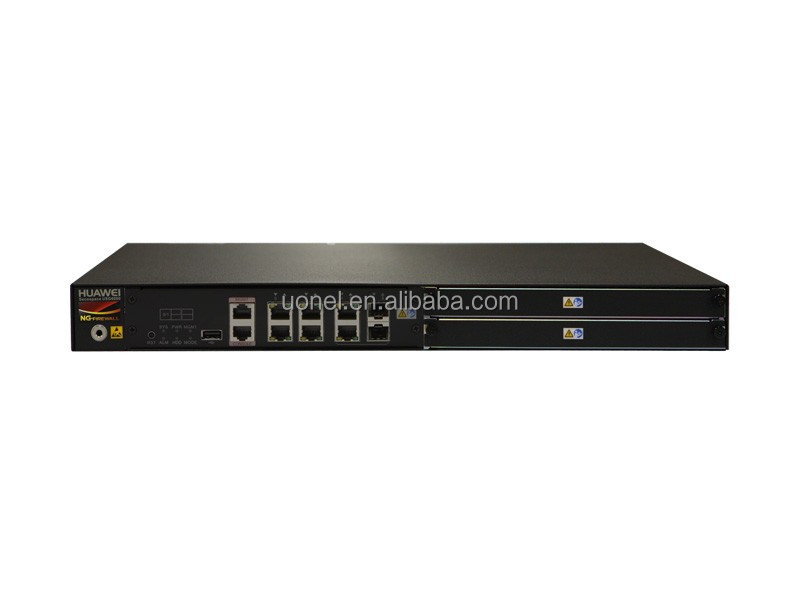

Figure 1 shows the appearance of Huawei USG6350-AC firewall.
Table 1 shows the Quick Specs.
Product Code | USG6350-AC |
Mandatory service ports | 2 x GE Combo ports, 4 x 10/100/1000M autosensing Ethernet electrical ports |
Expansion slot | 2×WSIC |
Hard disk | Optional hot-swappable 300GB 2.5-inch SAS hard disks |
AC Power Supply | 100V to 240V |
Height | 1 U |
Dimensions (W x D x H) | 442mm×421mm×44.4mm |
Features | NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam |
Figure 2 shows the front panel of Huawei USG6350 -AC firewall.
Note:
1 | ESD Jack | 5 | 8 × 10/100/1000M Autosensing Ethernet Electrical Ports |
2 | RST Button | 6 | 2 x Expansion Slots |
3 | One USB 2.0 Ports | 7 | One Out-of-band Management Port |
4 | One Console Port | 8 | Slot Numbering Layout and Indicator Area |
Figure 3 shows the back panel of Huawei USG6350-AC firewall.
This is a Schematic diagram, not a real product.
Note:
1 | Hard Drive Assembly (Optional) |
2 | Power Module |
3 | Slot for Optional Power Module |
Table 2 shows the recommended elements for the Huawei USG6350- AC firewall.
Category | Model | Description |
Business Module Group | WSIC-8GE | Huawei SVN5800 Secure Access Gateways 8GE Electric Ports Interface Card |
WSIC-8GEF | Huawei 8GE Optical Ports Interface Card for USG6600 Next-Generation Firewall. | |
WSIC-2XG8GE | Huawei 2*10GE Optical Ports+8GE Electric Ports Interface Card for USG6300 Next-Generation Firewall. | |
Hard disk Group | SM-HDD-SAS300G-B | Huawei 300GB 10K RPM SAS Hard Disk for 1U rack Gateway |
Option Power Group | Power-AC-B | Huawei Power-AC-B 170W AC power module |
Optical Transmitter Module Collection | SFP-GE-LX-SM1310 | Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,10km,LC) |
S-SFP-GE-LH40-SM1310 | Huawei AR G3 Optical Transceiver,eSFP,GE,Single-mode Module(1310nm,4 0km, LC) | |
eSFP-GE-SX-MM850 | Optical Transceiver,eSFP,GE,Multi-mode Module 850nm,0.5km,LC | |
Funtion License | LIC-VSYS-10-USG6000 | Huawei Quantity of Virtual Firewall (10 Vsys) Software/License |
LIC-SSL-100-USG6000 | Huawei Software/License: Quantity of SSL VPN Concurrent Users License (100 Users) | |
NGFW License | LIC-IPS-12-USG6300-02 | Huawei IPS Update Service Subscribe for 12 Months(Applies to USG6330/50/60) license. |
LIC-URL-12-USG6300-02 | Huawei URL Filtering Update Service Subscribe for 12 Months(Applies to USG6330/50/60) license. | |
LIC-AV-12-USG6300-02 | Huawei Anti-Virus Update Service Subscribe for 12 Months(Applies to USG6330/50/60) license. | |
Basic License | LIC-CONTENT | Huawei LIC-CONTENT Content Filtering Function Software/License |
Table 3 shows the comparison of Huawei USG6380-AC and USG6350 -AC firewalls.
Models | USG6380-AC | USG6350-AC |
Mandatory service ports | 4 x 10GE optical ports, 8 x 10/100/1000M autosensing Ethernet electrical ports | 2 x GE Combo ports, 8 x 10/100/1000M autosensing Ethernet electrical ports |
Expansion slot | 2 × WSIC | 2 × WSIC |
Hard disk | Optional hot-swappable 300GB 2.5-inch SAS hard disks | Optional hot-swappable 300GB 2.5-inch SAS hard disks |
Redundant Power Supply | Optional | None |
Features | NAT, application-specific access control, VPN, intrusion prevention, antivirus, data leak prevention, bandwidth management, anti-DDoS, URL filtering, and anti-spam | |
Cargo will be delivered within 1 day after payment arrived. Tracking Number will be offered once delivery done.
| Delivery Options | Estimated Delivery Time |
|---|---|
| DHL | 3-5 business days |
| Fedex | 3-5 business days |
| By Sea | 10-20 business days |
Notice:
Above mentioned information are just for your reference only,we will keep you posted for the tracking delivery schedule.There are two delivery options available for by air and by sea:
Deliver to port:
Uonel is responsible for transporting goods to port. All subsequent customs and transportation fees are the
responsibility of the buyer. Uonel will recommend trustworthy local freight forwarders to you.Uonel can facilitate the progress under buyer's permission and at buyer's expense.
Deliver to door:
Uonel will quote all destination charge prior once we have confirmed order.
Uonel is responsible for transporting goods to door after you have made the payment.
100% Low Price Guarantee:
Uonel provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are ORIGINAL NEW and GENUINE only.
Free Technical Support:
Our FREE Huawei Expert Consultancy Support is over the phone, by chat, by email or by login remotely.
100% Money Back Guarantee:
You can contact our customer service team to exchange or return any product that you bought from us.
Flexible Secure Payment & Shipment:
Verified authorization: Mcafee Secure, VeriSign Secured
Return Material Authorization (RMA) Process
Standard Hardware Warranty Policy:
Original new sealed Huawei product: 1 Year
The Support Contacts:
If your Huawei products failed, you must contact your sales representative to verify product failure. If the problem still can't correct by remote support methods i.e. email or phone support, the RMA procedure will issue.
Uonel is one of the biggest Huawei Network Hardware distributor in china, founded in 2008. We are a global provider of netwotking products with more than 5000 customers.
We provide original new Huawei Routers,Switches,Firewalls,Wireless APs & controllers,OLTs,GPON modems,optical transceivers.Our company have more than $5million Huawei products in stock.
Most of our technical engineers had work exprience in Huawei company,we can provide network design&planning,configration,troubleshooting,maintenance and training service in world wide.
