DWDM OptiXtrans DC908 TMN1OLS01 TMN1OLS02 FOADM Line Board TMN1OLS

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OptiXtrans DC908

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	Transmission Parts	Model:	TMN1OLS01 TMN1OLS02
OptiXtrans DC908 Dimensions:	86.1 X 442 X 500 Mm	Chassis:	2 U
Number Of C-band Wavelengths:	120	Integration (T/U):	4.8 Tbit/s
Chassis Capacity:	9.6 Tbit/s	Max. Line Rate Per Wavelength:	600-800 Gbit/s

Product Introduction

03033FSX TMN1OLS01 FOADM Line Board(Super C,Gain15~23dB,Max 22.5dBm,Gain15~23dB,MAX 22.5dBm)

03033PKE TMN1OLS02 FOADM Line
Board(Super C,Gain15~23dB,Max 22.5dBm,Gain16~25dB,MAX 23.8dBm)

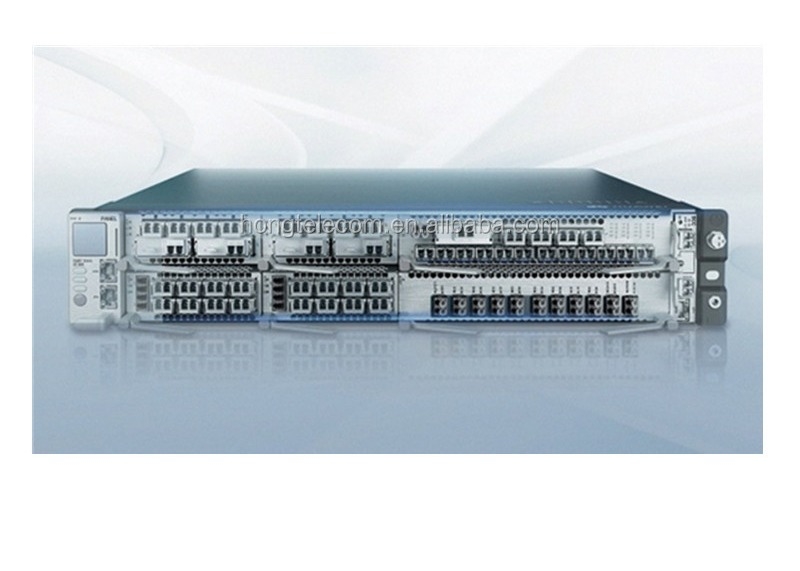

Huawei OptiXtrans DC908

An optical-electrical Wavelength Division Multiplexing (WDM) transmission device designed for Data Center Interconnect (DCI) and ready for the toughest challenges of the intelligent era.

OptiXtrans DC908 features:

Simplified deployment, from scratch to completion in just eight minutes;

Ultra-broadband and high integration, with 48T per fiber (sufficient for the next five years);

Intelligent, proactive Operations and Maintenance (O&M) that’s AI ready.

Product Specification

Parameter			Huawei OptiXtrans DC908 Description
Chassis	Dimensions (H x W x D)	86.1 mm x 442 mm x 500 mm
		Maximum Capacity	9.6 Tbit/s
		Number of Service Board Slots	8
		Applicable Cabinet	19-inch cabinet
Line-Side Port	Rate (Programmable)	• 100 Gbit/s (PDM_QPSK, PDM_wDCM_QPSK)
				• 200 Gbit/s (PDM_16QAM, PDM_16QAM-H, PDM_e16QAM, PDM_QPSK)
				• 400 Gbit/s (PDM_16QAM)
				• 600 Gbit/s (PDM_64QAM)
				• 800 Gbit/s (PDM_64QAM)
		Optical Module	• Wavelength-tunable optical module MSA
		Optical Module		• Wavelength-tunable and pluggable CFP2
Client-Side Port	Access Service Type	10 GE LAN, 10 GE WAN, 40 GE, 100 GE, 400 GE, OTU4, OTU2, OTU2e, STM-64, FC800, FC1200, FC1600, and FC3200
		Optical Module	• Pluggable SFP+
		Optical Module		• Pluggable QSFP28, QSFP+, and QSFP-DD
Optical Power Management			ALS, AGC, eALC, APE, and IPA
Maximum Number of Wavelengths			Fixed grid: 120 wavelengths @ 50 GHz
Channel Spacing			Fixed grid: 50 GHz, 75 GHz, 100 GHz, 150 GHz
Center Frequency Range			190.7 THz to 196.65 THz
Center Wavelength Range			1524.50 nm to 1572.06 nm
Protection			• Optical line protection
				• Intra-board 1 + 1 protection
				• Client 1 + 1 protection
Management Interface			CLI, GUI, SNMP, NCE-T, and NETCONF
Encryption Algorithm			AES-256
O&M Features			• Intuitive one-click deployment
				• Proactive O&M with resource and health prediction for fast and accurate troubleshooting
				• O&M LCD information display
Reliability			1 + 1 control board protection
Power Supply	Backup	1 + 1 power supply backup
		AC	• Rated voltage range:
				100 V AC to 120 V AC (50/60 Hz)
				200 V AC to 240 V AC (50/60 Hz)
				• Maximum voltage range: 90 V AC to 264 V AC (47 Hz to 63 Hz)
		High-Voltage DC	• Rated voltage: 240 V HVDC
		High-Voltage DC		• Maximum voltage range: 192 V HVDC to 288 V HVDC
		DC	• Rated voltage: –48 V DC
		DC		• Maximum voltage range: –40 V DC to –72 V DC
Heat Dissipation			• Front-to-rear air flow
Heat Dissipation				• 2 + 1 fan tray assembly backup
