Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OptiXtrans E9624 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| OptiXtrans E9624 Dimensions: | 747.2 (H) X 442 (W) X 295 (D) | Max. Rate Per Channel: | 400G Bit/s (OTUC4) |
|---|

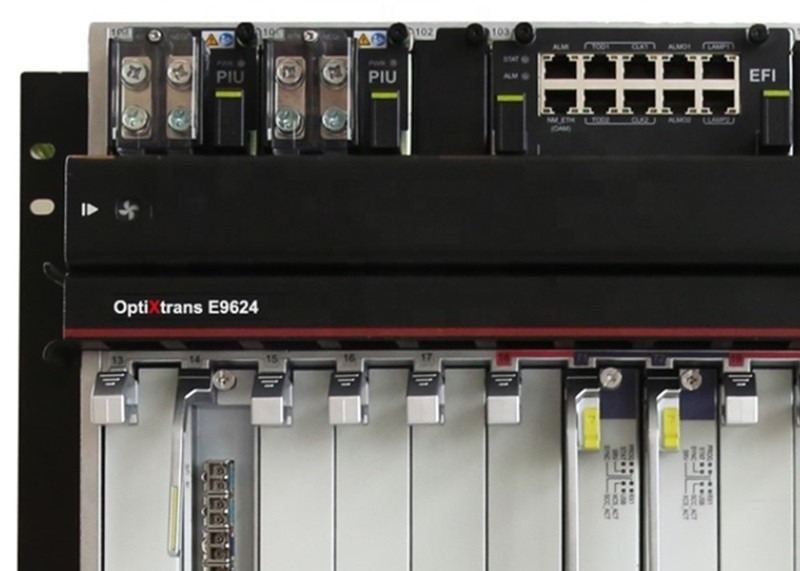

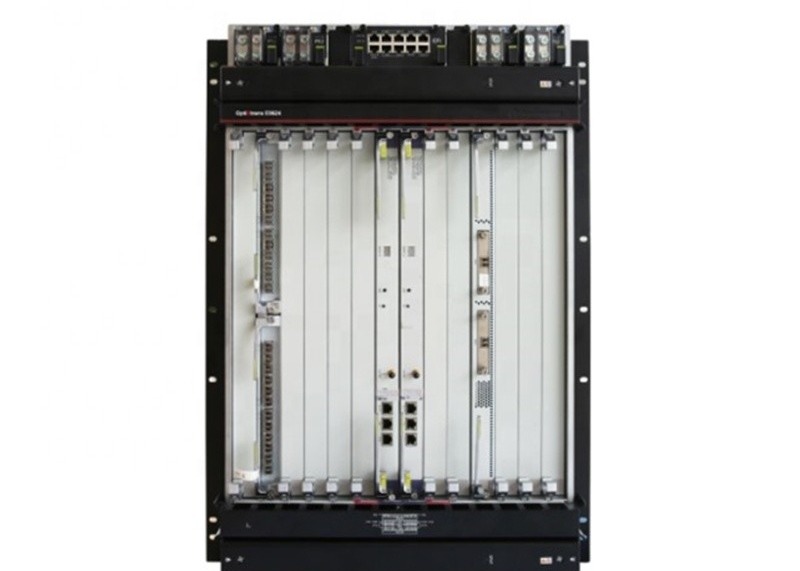

The huawei OptiXtrans E9624
Subrack dimensions (mm) | 747.2 (H) x 442 (W) x 295 (D) |
Suitable cabinet | * ETSI 300/600 cabinets, such as A63B * 19-inch cabinet |
Max. number of slots for service boards | 1:1 cross-connect mode: 12 large slots or 24 small slots 1:3 cross-connect mode: 10 large slots or 20 small slots |
Max. number of wavelengths | * Fixed grid: 96 wavelengths @50 GHz grid * Flex grid: The maximum number of wavelengths is related to the width of the flex channel. |
Wavelength range | DWDM system: 1524.50 nm to 1572.06 nm (super C-band) CWDM system: 1471 nm to 1611 nm (S+C+L Band) |
Max. rate per channel | 400G bit/s (OTUC4) |
Service type | Synchronous digital hierarchy (SDH)/synchronous optical network (SONET), Ethernet, SAN, OTN, Video |
Huawei OSN 1800
Huawei OSN 8800
Huawei BWS 1600G
TN13LSXT02
TN58NS4T51
SSE2OBU03
>>> Click Here To Get Full Product Catalog
Hong Telecom Equipment Service LTD (HongTelecom) is formal distributor of Huawei, ZTE and Emerson. Our team come from Huawei, ZTE, Emerson, CISCO, Alcatel, Ericsson, Fiberhome mostly. So we have established very good cooperative relationship with Huawei, Ericsson, Nokia, NSN, ZTE, Vertiv, Emerson, Fiberhome, Cisco, Juniper, HPE, DELL, Alcatel-Lucent, Nortel, H3C. We can provide one-stop purchasing platform for our customer with very good price and very fast delivery.
Hong Telecom Equipment Service LTD (HongTelecom) is a leading professional equipment distributor and service provider in telecommunication infrastructure and solution field, and now is extending our business to ICT (Information and Communication Technology) field.
HongTelecom offer full range of telecom infrastructure products, our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.
We have never stopped developing and actively participated in the training of Huawei and ZTE. We have passed many examinations and obtained Career Certification.
Our warehouses are located in Shenzhen, Shandong, Guangzhou and other places in China. The inventory value is over 5 million us dollars, occupies an area of 500㎡. Our export volumes is 1 million per month. We export products to Europe, America, the Middle East and Asia, etc.
Strict quality control is performed in every procedure from material sourcing, processing and testing to packing.We are capable to provide our business partners bestselling products.
1. Original Carton Package.
2. As customers' requirement.
1. 5-10 Working days after received the payment.
2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )
>>> Click Here To Get More Information From Us Now
Contact Person: Mr. Leo yang
Tel: +86 15684227158
