Name: 03053441 SL91MD1A 03053442 SL91MD1B Microwave RTN 980L board SL91MD1
Brand: Uonel Co.Limtied
SKU: RTN 980L
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model: SL91MD1B SL91MD1A

RTN 980L Chassis: 5U

Radio Directions (Long Haul): 16

RF Configuration Mode 2: N+1 Protection (N ≤ 11)

RF Configuration Mode 1: N+0 Non-protection

RF Configuration Mode 3: 1+1 FD Protection

RF Configuration Mode 4: XPIC Configuration

Frequency Band: 5/L6/U6/7/8/11 GHz

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: RTN 980L

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

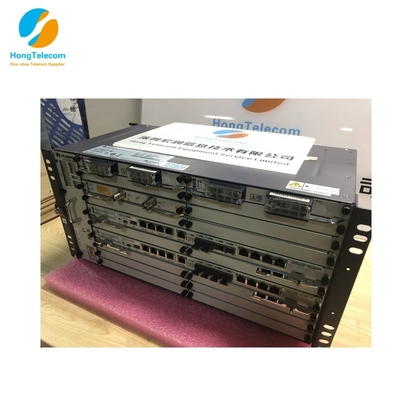

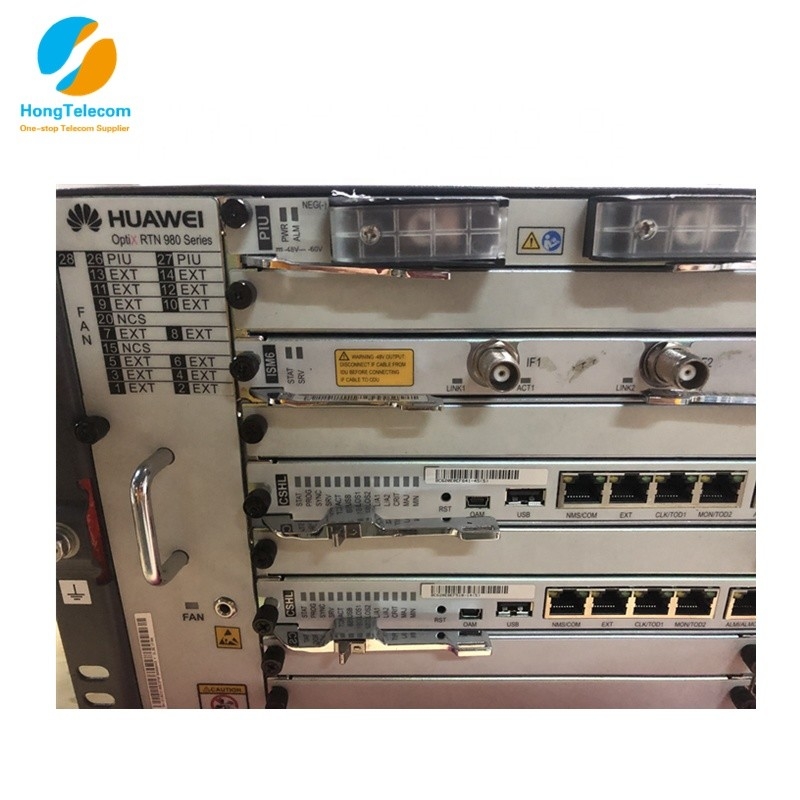

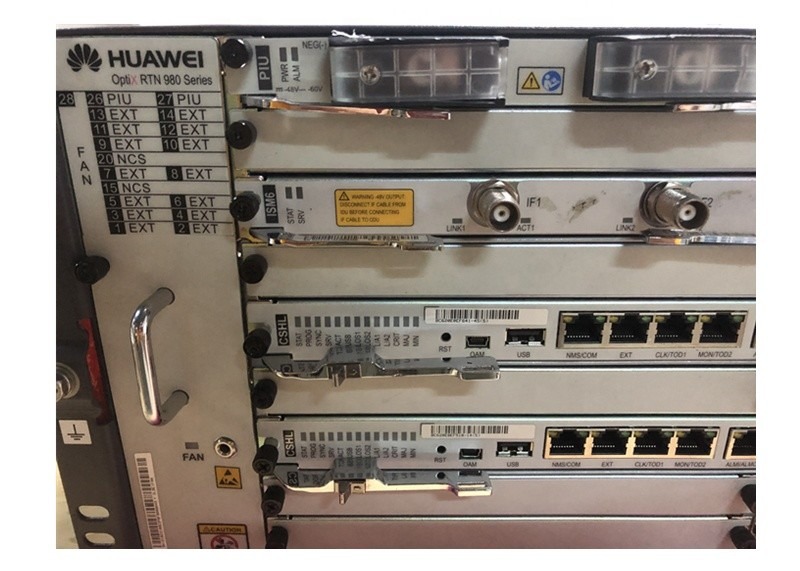

03053441 SL91MD1A 03053442 SL91MD1B Microwave RTN 980L board SL91MD1

Product Description

Product Overview

03053441 SL91MD1A: 32 Channels Smart E1 Interface Processing Board (75ohm) 03053442 SL91MD1B: 32 Channels Smart E1 Interface Processing Board (120ohm)

Device Attributes

BOM	Model	SFP Module Collection (STM-1&STM-4)
34100104	STM1E-SFP02	Electrical Active Module-Copper Transceiver,SFP,STM-1e
34060287	SFP-FE-SX-MM1310	SFP,1310nm,STM1,-19~-14dBm,-30dBm,LC,MM,2km
34060276	eSFP-FE-LX-SM1310	eSFP,1310nm,STM1,-15~-8dBm,-28dBm,LC,SM,15km
34060281	eSFP-FE-LH40-SM1310	Optical Transceiver,eSFP,1310nm,STM1,-5~0dBm,-37dBm,LC,SM,40km
34060282	eSFP-FE-LH80-SM1550	Optical Transceiver,eSFP,1550nm,STM1,-5~0dBm,-37dBm,LC,SM,80km
34060277	eSFP-1310nm-S-4.1/ESCON SM/DVB ASI SM	eSFP,1310nm,STM4,-15~-8dBm,-30dBm,LC,SM,15km
34060280	eSFP-1310nm-L-4.1	Optical Transceiver,eSFP,1310nm,STM4,-3~2dBm,-30dBm,LC,SM,40km
34060284	eSFP-1550nm-L-4.2	Optical Transceiver,eSFP,1550nm,STM4,-3~2dBm,-30dBm,LC,SM,80km

Technical Specifications

IDU 980L
The IDU 980L is the indoor unit of the OptiX RTN 980L Long Haul system. It receives and multiplexes services, performs switching and IF processing of services, and provides system control and communication functions.

IDU 980L Item	Description
Chassis height	5U
Pluggable	Supported
The maximum number of radio directions (Long Haul)	16
RF configuration mode (Long Haul)	N+0 non-protection N+1 protection (N ≤ 11) 1+1 FD protection XPIC configuration
Service interface type	E1 interface STM-1 optical/electrical interface STM-4 optical interface FE optical/electrical interface GE optical/electrical interface 2.5 GE optical interface 10 GE optical interface

RFU
An RFU is the transceiver of the OptiX RTN 980L Long Haul system. It performs functions such as frequency conversion and amplification of signals.

RFUs are available in two types according to support space diversity receiver or not:
1) RFU-SD: space diversity (SD) receiver and IF combination supported. It provides three RF ports: Tx, Main Rx and SD Rx.
2)RFU-NonSD: SD not supported. It provides two RF ports: Tx and Rx. It provides a cost-effective solution for scenarios with relatively good propagation conditions.

RFU supported by the OptiX RTN 980L

Item	Description
Series type name	XMC-LH
Frequency band	5/L6/U6/7/8/11 GHz
Modulation scheme	QPSK/16QAM/32QAM/64QAM/128QAM/256QAM/512QAM/1024QAM/2048QAM
Channel spacing	28/40/56 MHz (5/U6/8/11 GHz) 28/56 MHz (L6/7 GHz)

Packing & Delivery

Delivery

1. 3-7 Working days after received the payment.

2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )

Packing

1. Original Carton Package.

2. As customers' requirement.
