Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |

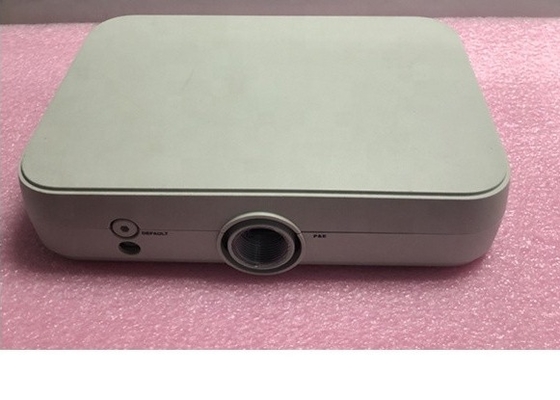

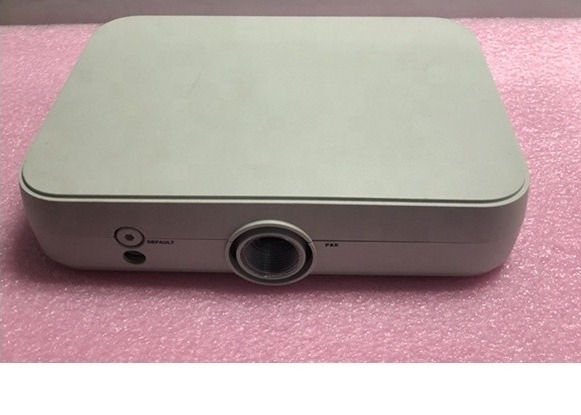

| Low Site: | 02310XXJ, SLEMSITE17 | High Site: | 02310XXK, SLEMSITE18 |
|---|
We can provide more accessories of RTN 380:
SLEMSITE01 RTN 380 Low site(250Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE02 RTN 380 High site (250Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE03 RTN 380 Low site (500Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE04 RTN 380 High site (500Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE05 RTN 380 Low site (1000Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE06 RTN 380 High site (1000Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE07 RTN 380 Low site (2000Mbps capacity, 1GE interface, 500MHz channel space)
SLEMSITE08 RTN 380 High site (2000Mbps capacity, 1GE interface, 500MHz channel space)
SLEMSITE09 RTN 380 Low site (250Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE10 RTN 380 High site (250Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE11 RTN 380 Low site (500Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE12 RTN 380 High site (500Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE13 RTN 380 Low site (1000Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE14 RTN 380 High site (1000Mbps capacity, 1GE interface, 250MHz channel space)
SLEMSITE15 RTN 380 Low site (2000Mbps capacity, 1GE interface, 500MHz channel space)
SLEMSITE16 RTN 380 High site (2000Mbps capacity, 1GE interface, 500MHz channel space）
RTN300 series of new generation of outdoor IP microwave transmission system
Huawei RTN300 series, is a highly integrated full-outdoor microwave products. Including RTN310, RTN360, RTN380 three products. RTN300 series is the microwave equipment, all the features are integrated in an outdoor box, to achieve zero-site full outdoor installation;
The RTN310 is a full-band microwave in the conventional frequency range and requires the use of a conventional frequency band. The RTN360 is a V-band microwave, the RTN380 is an E-band microwave, and the E / V-band is a free band in most countries. Light-charged band. As a result, the RTN300 Series provides enterprise customers with a complete outdoor microwave transmission solution with low network costs and low operating costs.
HUAWEI RTN310
HUAWEI RTN360
HUAWEI RTN380
RTN310 | RTN360 | RTN380 | |||
Support frequency | 13/15/18/23/38GHz | 59-64GHz | 71-86GHz | ||
Channel spacing | 7/14/28/56MHz | 200MHz | 62.5/125/250/500/750MHz | ||
Modulation mode | QPSK Strong~2048QAM Light | 160QAM | QPSK Strong~64 QAM | ||
Throughput | 2Gbps Max | 400Mbps | 4Gbps Max | ||
Business interface | GE | GE | GE, CPRI interface | ||
USB interface | Support | Support | Support | ||
Working environment | Working temperature : -35℃~+55℃ Relative humidity: 5%~100% | ||||
Power supply range | Support Ethernet power supply; Support DC power : -38.4V ~ -57.6V | ||||
Weight | 6kg | 2.5kg | 3.8kg | ||
HUAWEI RTN905
HUAWEI RTN910
HUAWEI RTN950A
HUAWEI RTN980
Shenzhen Hong Telecom Equipment Limited, formal distributor of Huawei, ZTE, Cisco, Fiberhome, H3C,Ericsson, Alcatel Lucent and Emerson, we provide complete series of Huawei,ZTE and Emerson.
Comparing with Huawei & ZTE & Cisco & Fiberhome & H3C & Ericsson & Alcatel Lucent & Emerson, we can provide Plenty of Stock, Fast Delivery, Better price, and original guarantee.
1. 5-10 Working days after received the payment.
2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )
1. Original Carton Package.
2. As customers' requirement.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
