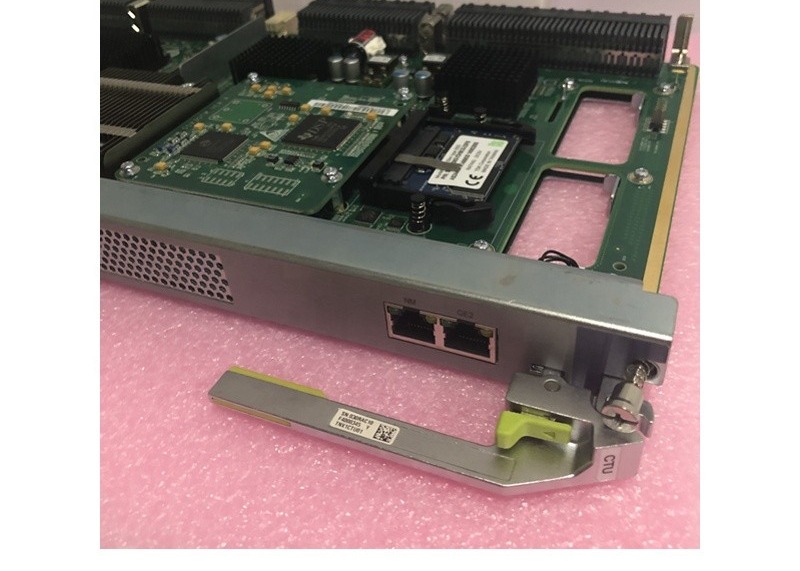

DWDM OSN 9800 P32 System Control and Communication Boards CTU TMP1CTU

Negotiable
MOQ
Negotiable
Price
DWDM OSN 9800 P32 System Control and Communication Boards CTU TMP1CTU
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Racks & Enclosure
Model: TMP1CTU
Dimensions (H X W X D): 1390 Mm (54.7 In.) X 496 Mm (19.5 In.) X 315 Mm (12.4 In.)
Weight: 82 Kg (180.8 Lb.)
Standard Working Voltage: -48 V Or -60 V DC Power Input
Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OSN 9800 P32
Payment & Shipping Terms
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Product Description
Product Introduction





DWDM OSN 9800 P32 System Control and Communication Boards CTU TMP1CTU




The huawei Optix OSN 9800 P32

Product Specifications

Subrack dimensions (mm)
1390 (H) x 496 (W) x 315 (D) (without cabinet)
Suitable cabinet
ETSI 300 cabinets, such as A63B
Max. number of slots for service boards
32
Max. number of wavelengths
Fixed grid: 96 wavelengths @50 GHz grid
Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Wavelength range
DWDM system: 1529.16 nm to 1567.13 nm (extend C-band, ITU-T G.694.1)
Synchronization
 * Synchronous Ethernet clock
* IEEE 1588v2
* ITU-T G.8275.1
Power Supply
 * Nominal working voltage:-48V DC/-60V DC

* Working voltage range:
* -48 V DC: -40 V to -57.6 V
* -60 V DC: -48 V to -72 V
