Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | RTN 380 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | RTN380 81G | Dimensions (H X W X D): | 265 Mm X 265 Mm X 65 Mm |
|---|---|---|---|
| Microwave Type 1: | IP Microwave Over Native Ethernet | Microwave Type 2: | Microwave Carrying CPRI Services |
| Frequency Bands: | 71-76 GHz And 81-86 GHz | Channel Spacing: | 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, And 750 MHz |
| RF Configuration Mode 1: | 1+0 Mode | RF Configuration Mode 2: | 2+0 Mode |
| RF Configuration Mode 3: | 1+1 HSB Mode | RF Configuration Mode 4: | Multi-directional Mode |

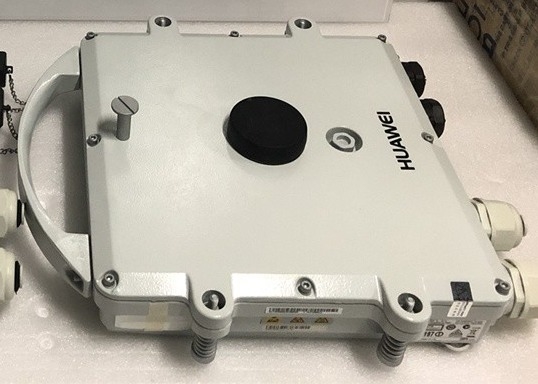

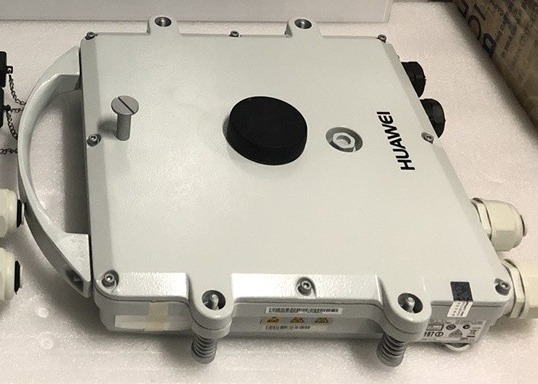

OptiX RTN 380 (RTN 380 for short) is a full-outdoor E-band microwave transmission equipment.
Network Positioning
The RTN 380 can provide large-capacity backhaul microwave links or aggregation links on a mobile communications network or a private network, or substitute for optical fibers to transmit CPRI signals between baseband units (BBUs) and remote radio units (RRUs) in a distributed base station system to achieve longer transmission of RRUs.
As E-band full outdoor radio equipment, the RTN 380 has the following characteristics:
* The RTN 380 operates at 71-76 GHz or 81-86 GHz frequency bands. It features large capacity, low inter-site interference, and rich frequency spectrum resources, as compared with radio equipment that operates at 6-42 GHz frequency bands. Therefore, RTN 380s can form a backhaul network for base stations densely deployed in a city and provide large-capacity backhaul links for aggregation sites. In addition, the RTN 380 can provide high-bandwidth microwave links for transmitting Ethernet services on a metro optical Ethernet in areas where optical fibers are difficult to lay out.
* As compact full outdoor radio equipment, the RTN 380 integrates all functions in a chassis and does not need an extra installation site. Therefore, it allows carriers to construct and operate networks at lower costs than traditional split radio equipment.
* On a mobile communications network, RTN 380s are mainly used to:
Provide large-capacity backhaul microwave links for 3G/LTE base stations especially those that are densely deployed in urban areas.
* Provide large-capacity aggregation links for 3G/LTE base stations and implement multi-direction aggregation when working with OptiX RTN 900s.
* Provide microwave links between BBUs and RRUs in a distributed base station system to transmit CPRI signals to achieve longer transmission of RRUs.
* Work with the CSG to provide a microwave channel solution for transparent transmission on the IP RAN.
* Work with OptiX RTN 900 to implement the Super Dual Band solution through EPLA. This solution provides high-bandwidth, long-distance, and high-availability backhaul links.
HUAWEI RTN310
HUAWEI RTN360
HUAWEI RTN380
RTN310 | RTN360 | RTN380 | |||
Support frequency | 13/15/18/23/38GHz | 59-64GHz | 71-86GHz | ||
Channel spacing | 7/14/28/56MHz | 200MHz | 62.5/125/250/500/750MHz | ||
Modulation mode | QPSK Strong~2048QAM Light | 160QAM | QPSK Strong~64 QAM | ||
Throughput | 2Gbps Max | 400Mbps | 4Gbps Max | ||
Business interface | GE | GE | GE, CPRI interface | ||
USB interface | Support | Support | Support | ||
Working environment | Working temperature : -35℃~+55℃ Relative humidity: 5%~100% | ||||
Power supply range | Support Ethernet power supply; Support DC power : -38.4V ~ -57.6V | ||||
Weight | 6kg | 2.5kg | 3.8kg | ||
RTN 380 specifications meet the high bandwidth requirements in E-Band microwave transmission. RTN 380 also has unique advantages in maintenance capabilities.
Item | Specifications |
Microwave types | IP microwave over Native Ethernet Microwave carrying common public radio interface (CPRI) services |
Frequency bands | 71-76 GHz and 81-86 GHz |
Channel spacing | 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, and 750 MHz |
Modulation schemes | QPSK Strong, QPSK, 16QAM Strong, 16QAM, 32QAM, and 64QAM |
RF configuration modes | 1+0 mode 2+0 mode 1+1 HSB mode Multi-directional mode |
Channel configuration modes | Adjacent channel alternate polarization (ACAP) Adjacent channel co-polarized (ACCP) Co-channel dual polarization (CCDP) |
AMAC | Supported |
ATPC | Supported |
Super Dual Band | Supported |
Service ports | When Ethernet services are transmitted, 2xFE/GE optical ports and 2xGE electrical ports are supported, one of the electrical ports supporting PoE. When CPRI services are transmitted, 1xCPRI port is supported. |
Service types | 1.Ethernet services E-Line services: based on port, port+VLAN, port+QinQ E-LAN services: based on 802.1d bridge, 802.1q bridge, and 802.1ad bridge A maximum of one E-LAN service is supported. 2.CPRI services |
Clock features | 1.Supported clock sources: Microwave link clock Synchronous Ethernet clock 2.IEEE 1588v2 time synchronization |
Power supply modes | PoE, which supports power supply through the PI, or other PSE equipment |
Dimensions (H x W x D) | 265 mm x 265 mm x 65 mm |
Antennas | Dish antennas and flat antennas * Dish antennas: available in diameters of 0.2 m, 0.3 m, and 0.6 m * Flat antennas: available in models providing equivalent gain of dish antennas with diameters of 0.3 m |
HUAWEI RTN905
HUAWEI RTN910
HUAWEI RTN950A
HUAWEI RTN980
