Name: OptiXtrans E9600 Intelligent Optical Transmission MS-OTN Platform OptiXtrans E9624
Brand: Uonel Co.Limtied
SKU: OptiXtrans E9624
Availability: InStock

OptiXtrans E9600 Intelligent Optical Transmission MS-OTN Platform OptiXtrans E9624

Negotiable

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Model: OptiXtrans E9624

OptiXtrans DC908 Dimensions: 747.2 X 442 X 295 Mm

Number Of Service Slots: 12/24

Rate Per Channel (maximum): 100G/200G/400G/600G

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: OptiXtrans E9624

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

OptiXtrans E9600 Intelligent Optical Transmission MS-OTN Platform OptiXtrans E9624

Product Description

Product Introduction

OptiXtrans E9600 Intelligent Optical Transmission MS-OTN Platform OptiXtrans E9624

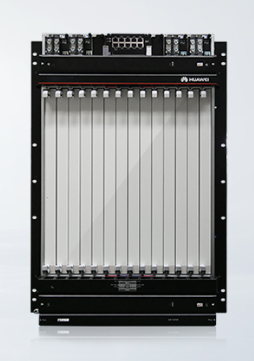

Product Appearance

OptiXtrans E9600

OptiXtrans E9600 is a large-capacity, intelligent, optical-electrical integrated, next generation Multi-Service Optical Transport Network (MS-OTN) platform for enterprise all-optical networking 2.0 (ON2.0).

The new-generation terabit cross-connect chip can process OTN, Virtual Circuit (VC), and packet services of different
granularities and smoothly evolve to OTN+. With 7 nm technology, high integration, and low power consumption, access of services is supported at any rate, from 100 Mbit/s to 400 GE. Per-wavelength capacity can be adjusted between 100 Gbit/s to 800 Gbit/s as needed. AI-enabled Operations and Maintenance (O&M) achieves autonomous-driving networks to cope with the increase in network scale and O&M complexity.

Product Specification

Parameters	OptiXtrans E9612	OptiXtrans E9624
Dimensions (H x W x D)	347.2 x 442 x 291 mm	747.2 x 442 x 295 mm
Number of Service Slots	13	12/24
Cross-connect Type	N/A	ODUk/PKT/VC
Cross-connect Capability	N/A	1:1 mode: 4.8T/2.4T/1.92T
Cross-connect Capability	N/A		1:3 mode: 10T/2T/1.6T
Channel Spacing	100 GHz fixed grid for 48/60 wavelengths
		50 GHz fixed grid for 96/120 wavelengths
		37.5 GHz to 400 GHz flex grid
Rate per Channel (maximum)	100G/200G/400G/600G
Services	SDH/SONET, Ethernet, SAN, OTN, Video, PDH (E1 & TPS)
Wavelength Range	DWDM: 1524.50 nm to 1572.06 nm (C band, ITU-T G.694.1)
Power Supply	–48 V DC/–60 V DC
