RTN 980L Integrated LH Assistant Channel Interface Board 03020RES SL9D000AUX01

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OptiX RTN 980L

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Model:	SL9D000AUX01	RTN 980L Chassis:	5U
Radio Directions (Long Haul):	16	RF Configuration Mode 2:	N+1 Protection (N ≤ 11)
RF Configuration Mode 1:	N+0 Non-protection	RF Configuration Mode 3:	1+1 FD Protection
RF Configuration Mode 4:	XPIC Configuration	RFU TYPE:	XMC-LH
Frequency Band:	5/L6/U6/7/8/11 GHz

Product Overview

03020RES SL9D000AUX01 Assistant Channel Interface Board

BOM	Model	SFP Module Collection (STM-1&STM-4)
34100104	STM1E-SFP02	Electrical Active Module-Copper Transceiver,SFP,STM-1e
34060287	SFP-FE-SX-MM1310	SFP,1310nm,STM1,-19~-14dBm,-30dBm,LC,MM,2km
34060276	eSFP-FE-LX-SM1310	eSFP,1310nm,STM1,-15~-8dBm,-28dBm,LC,SM,15km
34060281	eSFP-FE-LH40-SM1310	Optical Transceiver,eSFP,1310nm,STM1,-5~0dBm,-37dBm,LC,SM,40km
34060282	eSFP-FE-LH80-SM1550	Optical Transceiver,eSFP,1550nm,STM1,-5~0dBm,-37dBm,LC,SM,80km
34060277	eSFP-1310nm-S-4.1/ESCON SM/DVB ASI SM	eSFP,1310nm,STM4,-15~-8dBm,-30dBm,LC,SM,15km
34060280	eSFP-1310nm-L-4.1	Optical Transceiver,eSFP,1310nm,STM4,-3~2dBm,-30dBm,LC,SM,40km
34060284	eSFP-1550nm-L-4.2	Optical Transceiver,eSFP,1550nm,STM4,-3~2dBm,-30dBm,LC,SM,80km

Technical Specifications

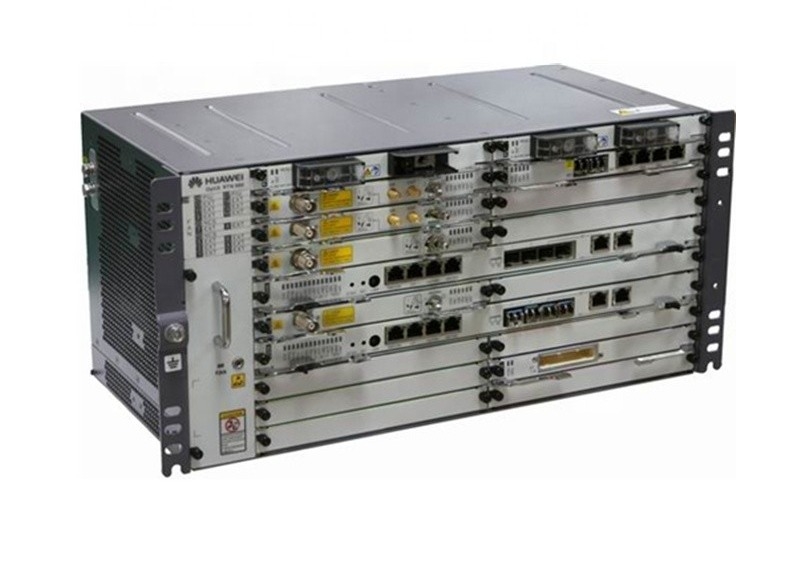

IDU 980L
The IDU 980L is the indoor unit of the OptiX RTN 980L Long Haul system. It receives and multiplexes services, performs switching and IF processing of services, and provides system control and communication functions.

IDU 980L Item	Description
Chassis height	5U
Pluggable	Supported
The maximum number of radio directions (Long Haul)	16
RF configuration mode (Long Haul)	N+0 non-protection N+1 protection (N ≤ 11) 1+1 FD protection XPIC configuration
Service interface type	E1 interface STM-1 optical/electrical interface STM-4 optical interface FE optical/electrical interface GE optical/electrical interface 2.5 GE optical interface 10 GE optical interface

RFU
An RFU is the transceiver of the OptiX RTN 980L Long Haul system. It performs functions such as frequency conversion and amplification of signals.

RFUs are available in two types according to support space diversity receiver or not:
1) RFU-SD: space diversity (SD) receiver and IF combination supported. It provides three RF ports: Tx, Main Rx and SD Rx.
2)RFU-NonSD: SD not supported. It provides two RF ports: Tx and Rx. It provides a cost-effective solution for scenarios with relatively good propagation conditions.

RFU supported by the OptiX RTN 980L

Item	Description
Series type name	XMC-LH
Frequency band	5/L6/U6/7/8/11 GHz
Modulation scheme	QPSK/16QAM/32QAM/64QAM/128QAM/256QAM/512QAM/1024QAM/2048QAM
Channel spacing	28/40/56 MHz (5/U6/8/11 GHz) 28/56 MHz (L6/7 GHz)
