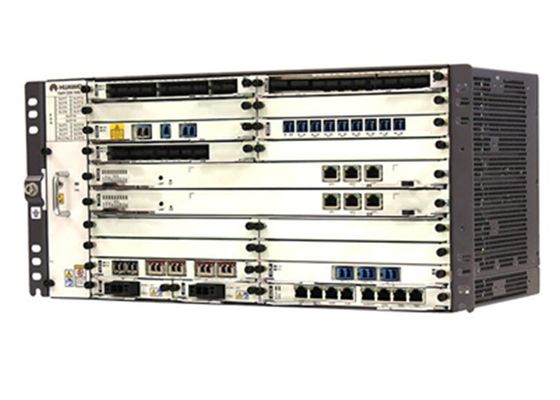

WDM OSN 1800 V enhanced assembly chassis (5U, AC, with disk cartridge) 02300803 TNFK04AFB

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OSN 1800 V

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Model:	TNFK04AFB	OSN1800 V Dimension:	221(H)442(W)224(D)mm
Max CWDM:	8 Wave	Max DWDM:	40 Wave
AC Power:	110~220V	DC Power:	-48/-60V( Support 1+1)

02300803 TNFK04AFB Group enhanced assembly chassis (5U, AC, with disk cartridge)

Device Attributes

Part Number	Model	Description
Main Equipment
Case
02300802	TNFK03AFB	Packet Enhanced Assembly Chassis(5U,DC,with Fiber Storage)
02300803	TNFK04AFB	Packet Enhanced Assembly Chassis(5U,AC,with Fiber Storage)
02301517	TNFK17AFB	Packet Enhanced Assembly Chassis(5U,AC,1500W,with Fiber Storage)
02300783	TNFK01AFB	Packet Enhanced Assembly Chassis(5U,DC)
02300801	TNFK02AFB	Packet Enhanced Assembly Chassis(5U,AC)
02113354	TNFBDCCASE02	Case-II(2U,Fan) with fiber storage
02112894	TNF-Case-II	Case-II(2U,Fan)
02113356	TNFBACCASE02	AC Case-II(2U) with fiber storage
Packet License
88031SYV	TNFSTPASST01	TP-Assist Basic Function Fee(Per subrack)
82600798	NSDSMPLSTP02	OptiX OSN 1800/1832 PACKET Function Fee(Contain MPLS-TP Function,Per Subrack)
82600796	NSDSPKTENC02	OptiX OSN 1800 Platform,Universal Line Card Packet Encapsulation Ability fee(Per Unit)
88031XCQ	TNVS0100GE01	Packet Service License(Per 100GE Port)
88031LPF	TN5S0010GE01	Packet Service License(Per 10GE Port)
88031LPH	TN5S0000GE01	Packet Service License(Per GE Port)

OptiX OSN 1800 V is a new generation of packet enhanced multi service optical transport platform, 5U high integration to fill the needs of the metropolitan device configuration.

Support OTN/PKT unified switching function, Ethernet, TDM, line 2M~10G full service access, and integrated MPLS-TP function, solve the metropolitan area network following fiber resources shortage, as enterprise network, campus network, data center network provides a low cost and high efficiency multi service broadband access solutions

	OSN 1800 V
Device Size	221(H)442(W)224(D)mm
Business Slot	AD Slot: 12 ; DC Slot: 14
Capacity	OTN: 800G ODUK( K=0,1,2,2e,flex )
Max Wave	CWDM: 8 Wave ; DWDM: 40 Wave
Single channel maximum rate	100 Gbits/s (OTU4)
Install mode	19''/23'' Cabinet , ETSI 300mm/600mm cabinet
Power supply mode	AC: 110-220V OR DC: -48/-60V (Support 1+1 backup power input )
