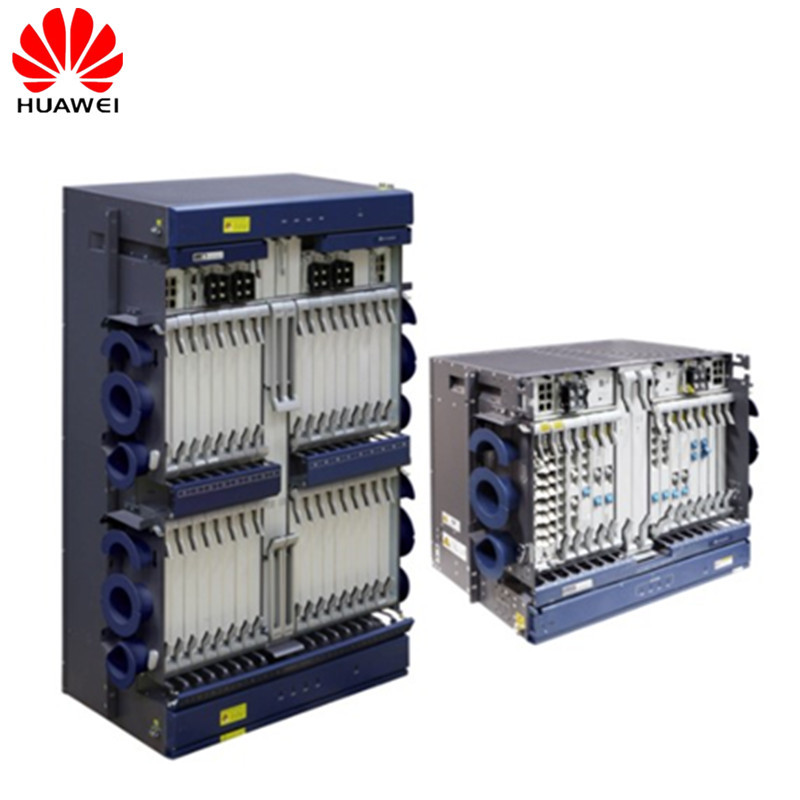

DWDM OSN 8800 Universal Platform Subrack OSN8800 UPS

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OSN 8800 UPS

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

OSN8800 UPS Dimensions:	498 Mm (W)x295 Mm (D)x450 Mm (H)	Weight (empty Subrack):	18 Kg (39.6 Lb.)
Slots For Service Boards:	16	Optical Switch:	1 To 20-degree ROADM
Wavelength (max):	DWDM: 96-ch	Max. Rate Per Channel:	200 Gbit/s (OTUC2)
Line Rate:	2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 200 Gbit/s	Nominal Working Voltage:	-48 V DC/-60 V DC
Maximum Subrack Power Consumption:	2400W	Mean Time To Repair (MTTR):	4 Hours

our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

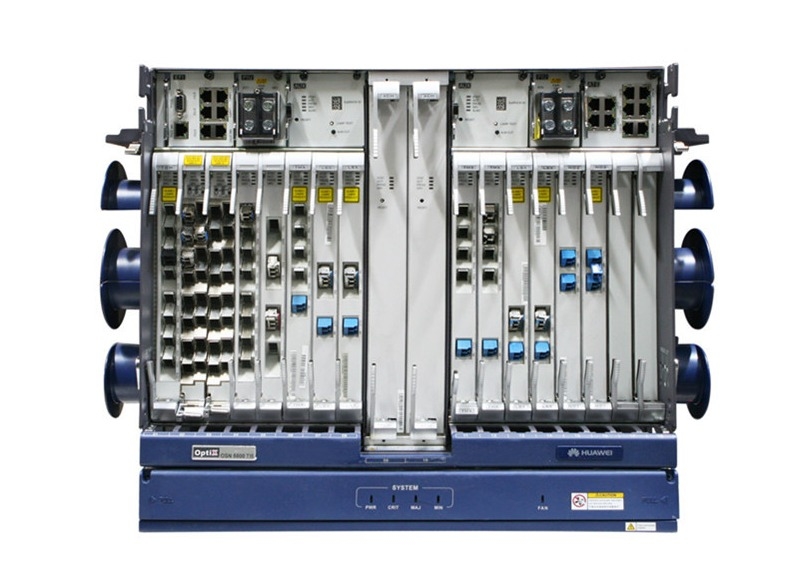

DWDM OSN 8800 Universal Platform Subrack OSN8800 UPS

The OptiX OSN 8800 universal platform subrack can be installed in an N63B, N66B, or 19-inch cabinet. The subrack has 16 service slots.

Subracks are the basic working units of the OptiX OSN 8800 universal platform subrack. The OptiX OSN 8800 universal platform subrack can operate with an independent DC or AC power supply. A universal platform subrack supports two mounting options: ETSI cabinet mounting and 19-inch rack mounting

1. LAMP TEST Button

2. Indicator/Interface area

3. RESET Button
4. SubRACK_ID LED indicator

5. Board area

6. Fiber cabling area
7. Fan tray assembly

8. Air filter

9. Mounting ear
10. Fiber spool

Product Specification

The Huawei OSN 8800 Universal Platform Subrack Specifications:

OptiX OSN 8800 UPS	Specifications
Dimensions (mm)	442 (W) x 295 (D) x 397 (H)
Number of slots for service boards	16
Optical Switch	1 to 20-degree ROADM
Wavelength (max)	DWDM: 96-ch
Center wavelength range	DWDM: 1529.16 nm to 1567.13 nm (extended C-band, ITU-T G.694.1)
Max. rate per channel	200 Gbit/s (OTUC2)
Service types supported	SDH, SONET, Ethernet, SAN, OTN, Video
Line rate	2.5 Gbit/s, 10 Gbit/s, 40 Gbit/s, 200 Gbit/s
Supported pluggable optical modules	eSFP, SFP+, XFP, CFP
Topology	Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring, mesh
Network level protection (OTN)	Optical line protection, intra-board 1+1 protection, client 1+1 protection, SW SNCP, OWSP
Equipment level protection	Power redundancy, fan redundancy, system control and communication board redundancy
Optical power management	ALS, AGC, ALC, APE, IPA, OPA
Synchronization	Synchronous Ethernet clock IEEE 1588v2 2 Mbit/s or 2 MHz (with the SSM function), ITU-T G.703-compliant external clock source External time source (1PPS+TOD)
ASON	An OTN network supports the Optical-Layer ASON
Submarine Features	Supports application of extended C band in submarine scenarios.
Nominal working voltage	-48 V DC/-60 V DC
Operation environment	Subrack temperature: Long-term operation: 5°C (41 °F) to 45°C (113 °F) Short-term operation: -5°C (23 °F) to 55°C (131 °F) Relative humidity: Long-term operation: 5% to 85% Short-term operation: 5% to 95%
