Microwave RTN 620 IDU RTN620

Negotiable
MOQ
Negotiable
Price
Microwave RTN 620 IDU RTN620
Features Gallery Product Description Request A Quote
Features
Specifications
RTN620: 2U Rack
Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: RTN620
Payment & Shipping Terms
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Product Description
Product Description

 Network Application

The OptiX RTN 600 radio transmission system is a short haul digital microwave transmission system developed by Huawei Technologies Co., Ltd.
Each radio frequency (RF) carrier of the RTN 600 system can transmit 4/8/16xE1 or 1xSTM-1.
The RTN 600 can provide back haul links in a private network or a mobile telecommunication network, and can also network with optical transmission systems.

Components

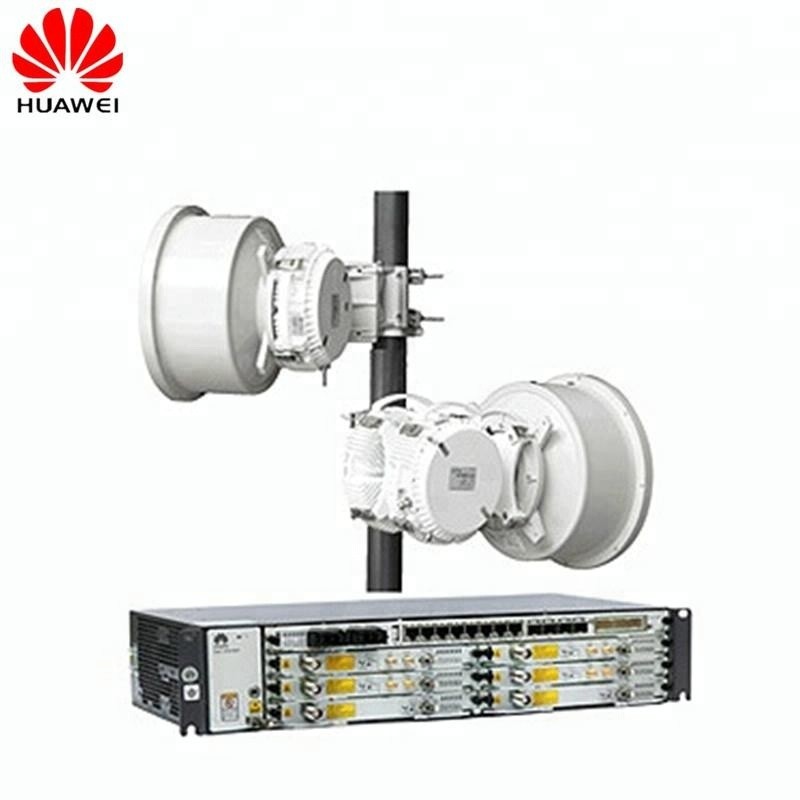

The OptiX RTN 600 adopts a split structure. The system consists of the indoor unit (IDU) and the outdoor unit (ODU). An ODU is connected to an IDU through a coaxial cable.

The IDU has two types as follows:
1. IDU 610: 1U; one IF board; supporting 1+0 non-protection configuration.
2. IDU 620: 2U; one to four IF boards; supporting 1+0 non-protection configuration and 1+1 configuration.


Microwave RTN 620 IDU RTN620 0
Interface Type
Specifications
IDU 610
IDU 620
PDH interface
75/120-ohm E1 interface
16
64
SDH interface
STM-1 optical interface: Ie-1,
S-1.1, L-1.1, L-1.2
2a


8b

STM-1 optical interface: Ie-1,
S-1.1, L-1.1, L-1.2
2a
8b
Ethernet service
interface
10M/100M BASE-T(x)
interface
4
16
External clock
interface
75-ohm 2048 kHz/ or 2048
kbit/s external clock interface
1
2
Auxiliary interface
Orderwire interface
1
1

Wayside (WS) interface (the external clock interface)
1
2

RS232 asynchronous data interface
1
1
Management
interface
10/100BASE-T(x) NM
interface
1
1

10/100BASE-T(x) NE
cascade interface
1
1

Management serial port
1
1
Alarm interface
Alarm input/out interface
6 inputs + 2 outputs
6 inputs + 2 outputs
