Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | BWS 1600G |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| DC Input Voltage: | -48V /-60V DC | Voltage Range: | -38.4V To -57.6V DC OR -48V To -70V DC |
|---|

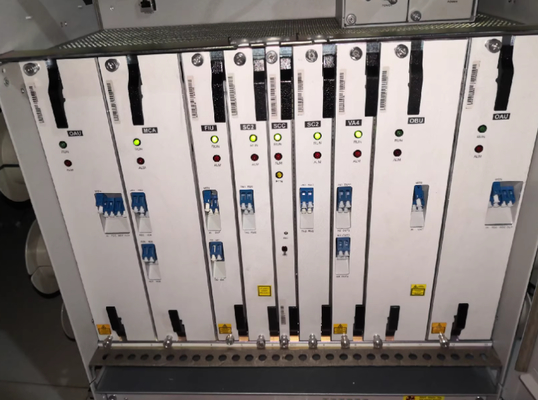

We can offer all boards of HUAWEI BWS 1600G , below are some for your reference:
SSEB3RACK23 N63B ETSI remote pump special cabinet (2200 * 600 * 300mm), the double sub frame
SSTB0FRAME01 High Enclosure (400)
SSCE3PWR HUB Power Distribution Box (for 19 "Enclosure)
SOHO-S1008A-8 8-port 10 / 100M Ethernet switch
SSE3D4003 40 wave-demultiplexing unit (C-odd wave, 196.05 to 192.15 THz, 100 GHz, heated AWG, LC)
SSE3ITL01 C-band comb filter unit (dual module, 100/50 GHz)
SSE2WSD9C01 9-Port Wavelength Selective Switching Wave Board (C Band, 196.05THz ~ 192.10THz, 50GHz)
SSE2FIU06 Optical Fiber Line Interface Unit (C / 1510 WDM, Use Together With HBA)
SSE1DCP01 Two-channel protection board
SSE2SCS01 synchronous optical channel separation board, 1550nm / 1310nm optical splitter (1: 1)
SSE1MCA01 8-channel spectral analysis unit (C-band, LC / PC)
SSE2MWA02 monitoring wavelength access board, four-channel monitoring wavelength access
SSE1WMU01 2-channel wavelength detection unit (C-band, LC / PC)
SSE5OPUC03C C-band optical preamplifier unit (23dB gain, 15dBm output)
SSE2HBA high-power amplifier unit, the maximum gain of 29dB and 35dB can be allocated
SSE-RGU (48 Cores Single Fiber) 48-core single-fiber buried RGU unit
SSE-DCM(1)-C-652(1km) Dispersion compensating fiber-1525~1565nm(compensatingG.652optical fiber)--14.4~-18.4ps/nm@1545nm(compensating1km)-2.0dB-0.1dB.-0.3ps-LC/UPC-237*266*43mm
The OptiX BWS 1600G Backbone DWDM Optical Transmission System features high speed and large capacity. It is mainly used in national backbone or provincial backbone for long distance and high capacity transmission. The OptiX BWS 1600G connects to the optical switching equipment, Metro DWDM equipment, SDH equipment, or router in an optical network. Currently, the OptiX BWS 1600G can multiplex a maximum of 192 wavelengths into a single optical fiber. That is, the OptiX BWS 1600G is able to transmit 192 wavelengths at the same time. The maximum rate for each wavelength is 10 Gbit/s. A pair of fibers provides the maximum total transmission capacity of 1920 Gbit/s in two directions. The maximum rate of one wavelength can reach 40 Gbit/s.
Network Application
The flexible networking is realized by using:
1.Reliable multiplexer/demultiplexer
2.Erbium-doped optical fiber amplifier
3.Raman amplifier
4.Channel equalization technology
5.SuperWDM technology
6.Dispersion compensation technology
7.Universal and centralized network management system
8.Reconfigurable Optical Add/Drop Multiplexer technology
9.Extended C band technology
