03031GGX TN58NS4T61 100Gbit/s Line Service Processing Board OSN 8800 TN58NS4

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OptiX OSN 8800

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Model Number:	TN58NS4T61	OSN 8800 T16 Dimensions (mm):	498 (W) X 295 (D) X 450 (H)
OSN 8800 T32 Dimensions (mm):	498 (W) X 295 (D) X 900 (H)	OSN 8800 T64 Dimensions (mm):	498 (W) X 580 (D) X 900 (H)
DWDM Wavelength:	80-ch (max)	CWDM Wavelength:	8-ch (max)
Max. Rate Per Channel:	100Gbit/s (OTU4)	Service Types Supported:	SDH, SONET, Ethernet, SAN, OTN, Video
Max. Capacity Per PID Group:	200 Gbit/s	Optical Power Management:	ALS, AGC, ALC, APE, IPA, OPA

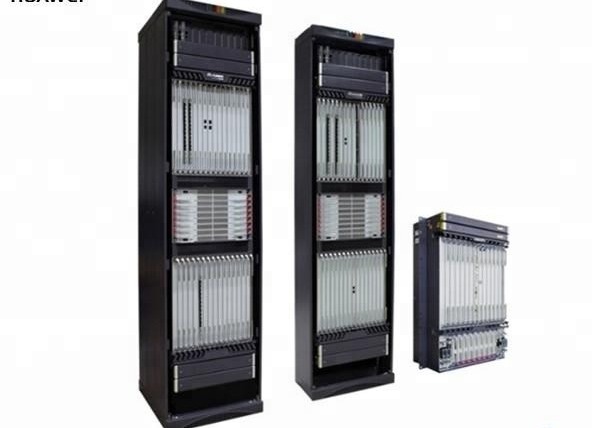

the OptiX OSN 8800 T64 / T32 / T16 can be configured as a complete OTN end-to-end network. It can also be used with the OptiX BWS 1600G, OptiX OSN 1800, OptiX OSN 9800, and with NG-SDH / PTN or Datacom Equipment, mixed network, to achieve a complete transmission solution.

1. Support the mass IP service access, centralized scheduling and management, eliminating the previous multi-sub-assembly of the network; save 80 / 100G or 32/64 * 100G; % Of the footprint, 55% reduction in power per unit bandwidth, eliminating the ODF fiber switch, high reliability.

2. 3.2T / 6.4T-bit non-blocking electrical cross-connect capacity to support complex networking, mass business centralized scheduling; support 2/4/9/20-dimensional ROADM optical cross-linking; support optical hybrid cross, flexible wavelength / sub-wavelength level Business cross-scheduling, rapid business deployment, lower CAPEX. The CDC ROADM (Colorless & Directionless & Gridless ROADM), the industry's first compact architecture, simplifies the configuration of optical ASON nodes.

3. Mature commercial 80 * 100G system, unlimited bandwidth transmission; the industry's only OCH & ODUk photoelectric double intelligent, photoelectric linkage of the new model, with higher reliability.

4. MS-OTN features, centralized cross-board unified support for OTN / SDH / PKT cross; OTN, SDH and PKT business flexible combination to enhance the board and bandwidth efficiency.

5. Support submarine cable transmission, the leading 100G submarine cable program, support 100G without electricity relay 7000 km transmission.

6. Provide 2M, 1588 V2 and synchronous Ethernet clock transmission, fully meet the WCDMA, TD-SCDMA, CDMA2000 and LTE / LTE-A clock accuracy requirements.

7. Support 10G / 40G / 100G arbitrary channel OSNR optical power / BER monitoring, real-time optical parameters on-line monitoring, enhance network operation and maintenance efficiency.

8. Integrated OTDR function, through the monitoring board for online OTDR detection of fiber parameters, quickly locate the fiber failure point, locate the fiber degradation point.

9. Support the evolution of T-SDN, enhance service delivery efficiency, simplify network operation and maintenance, and enhance network intelligence. At the same time can also be achieved through the T-SDN cross-layer cross-domain network resources, unified scheduling and network intelligent management, and can support a wealth of APP applications and business innovation.
