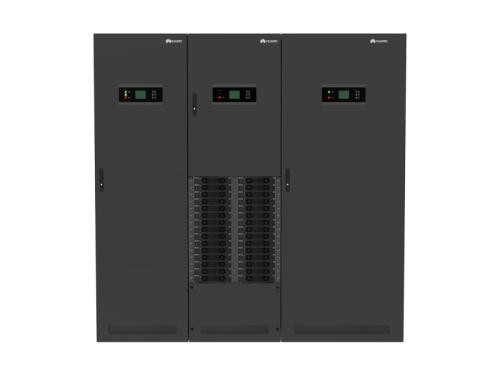

TP483000D Huawei Wireless Network 48V DC Power System Large Capacity

TP483000D Huawei Wireless Network 48V DC Power System Large Capacity

  • TP483000D Huawei Wireless Network 48V DC Power System Large Capacity
TP483000D Huawei Wireless Network 48V DC Power System Large Capacity
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: TP483000D
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Product Name: Huawei TP483000D Power Syetem Type: Outdoor Power System
Application: Wireless Network Central Office, Input Voltage: 260VAC~530VAC
Frequency: 45~66Hz, Rated 50Hz/60Hz Maximum Input Current: ≤13A (Vin:308VAC, 100% Load)
Power Factor: ≥ 0.99 Output Voltage: 42VDC~58VDC, Rated 53.5VDC
High Light:

TP483000D Huawei Wireless Network


Huawei 48V DC Power System


Huawei TP483000D

Huawei TP483000D 48V Large Capacity DC Power System

Huawei TP483000D is the first all-digital large capacity telecom power system in industry. The system consists of 1U 100A high efficiency rectifiers. The output of rectifier cabinet can reach 3000A, expandable up to 24000A. The system has impressive features such as high reliability, high efficiency, high power density, high capacity, low noise and easy maintenance.



•  Wireless network central office; fixed network central office, large capacity convergence site, enterprise network central office, data center.

Product Feature

• High reliability: MTBF of rectifier is over 540,000 hours, MTBF of system is over 500,000 hours
 The system complies with the CE standards. The rectifier module complies with the UL, CE and TUV standards
 Wide range of AC input: 260VAC~530VAC

 High power efficiency of rectifier, over 96%, saving huge energy
 High capacity: Max. 24,000A output can be achieved by parallel combination
 High power density: power density of module is up to 25.4W/inch³, far higher than the industry average level
 All-CAN communication, improves system’s response rate
 Support Huawei NetEco and the third network management system, saving OPEX
 Support in-band/out-band/IP monitoring, matching customer’s future evolution strategy mode
