Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TP4860C-D06A5 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | Huawei TP4860C-D06A5 Wall-Mounted Power System | Type: | Wall-Mounted Power System |
|---|---|---|---|
| Application: | Indoor Wireless Coverage Sites, Indoor WLAN | Weight: | ≤29kg(without Rectifier And Storage Battery) |
| High Light: | TP4860C-D06A5 Huawei Power Supply,TP4860C-D06A5,TP4860C-D06A5 wall mounted power supply |
||

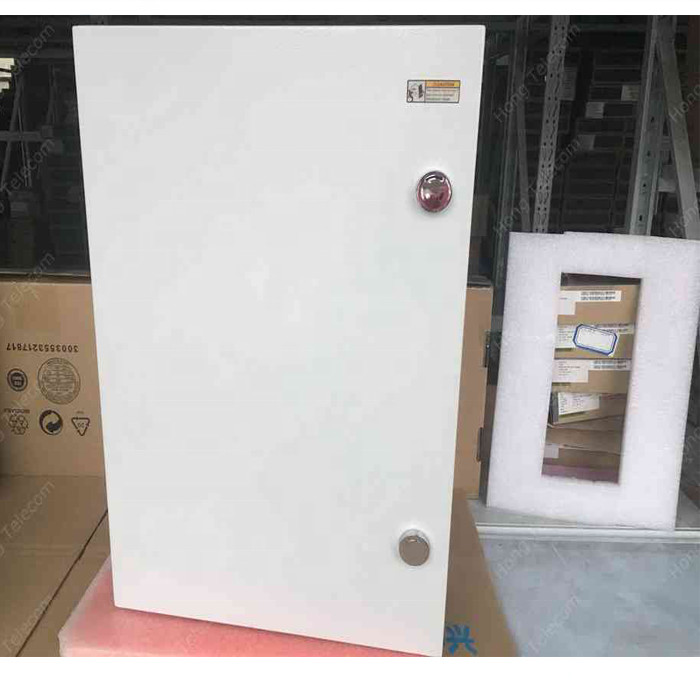

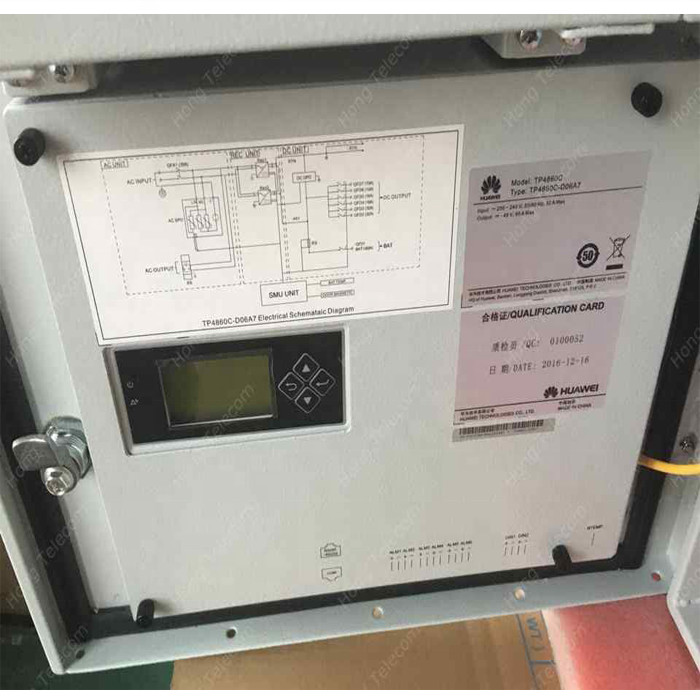

Huawei High Rectifier Efficiency Wall-Mounted Power System TP4860C-D06A5
Huawei TP4860C and TP4860H are 2 types of wall-mounted power system, which can convert from 220V AC single-phase or 110V AC dual-live wire input to stabilized -48V DC output. Its largest capacity is 60A. When
configured with inverter, it can output -48V DC and 220V AC simultaneously . It can be built in 20AH/40AH
VRLA battery or 40AH lithium-ion battery. It provides great performance such as compact design, high efficiency and flexible power backup.
Scenario:
Indoor wireless coverage sites power supply, Indoor WLAN power supply etc.
• High rectifier efficiency over 96% helps to save energy
• Support 870W/1000W/1600W rectifiers;
• Compact design makes it satisfies wall-mounted, pole-mounted and ground-mounted installation
• Protection level of outdoor power is up to IP55, low noise and high environment adaptability
• Intelligent battery management helps to prolong battery lifespan
• Support anti-reverse battery polarity connection, effectively avoid components damage
• Support site monitoring through dry contact or serial interface
...
