NIX-53 Hybrid Microwave Transmission 0.5U NIX53

NIX-53 Hybrid Microwave Transmission 0.5U NIX53

  • NIX-53 Hybrid Microwave Transmission  0.5U NIX53
  • NIX-53 Hybrid Microwave Transmission  0.5U NIX53
NIX-53 Hybrid Microwave Transmission  0.5U NIX53
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: NIX-53
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description

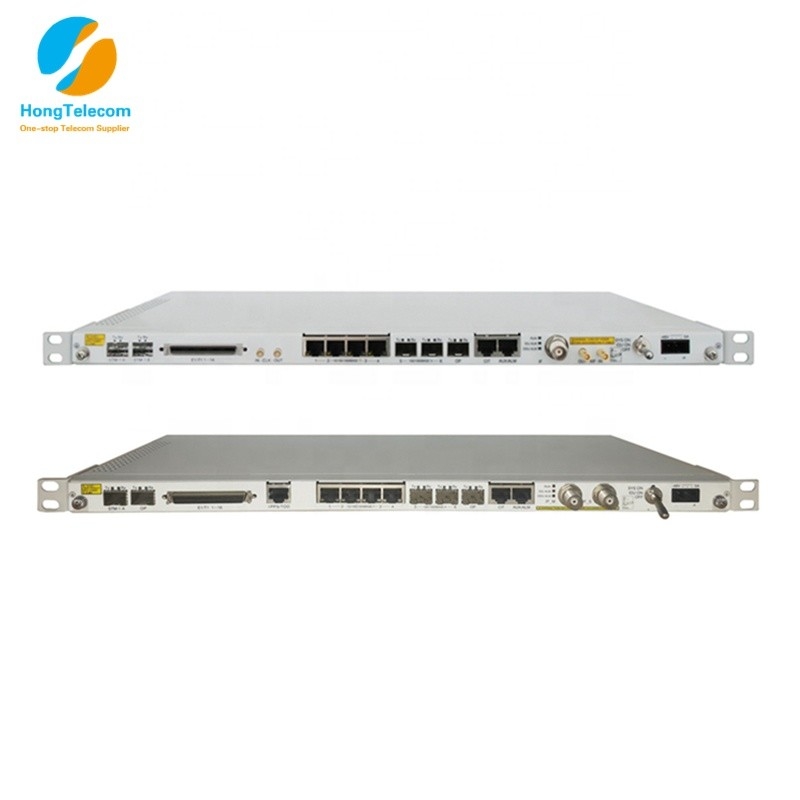

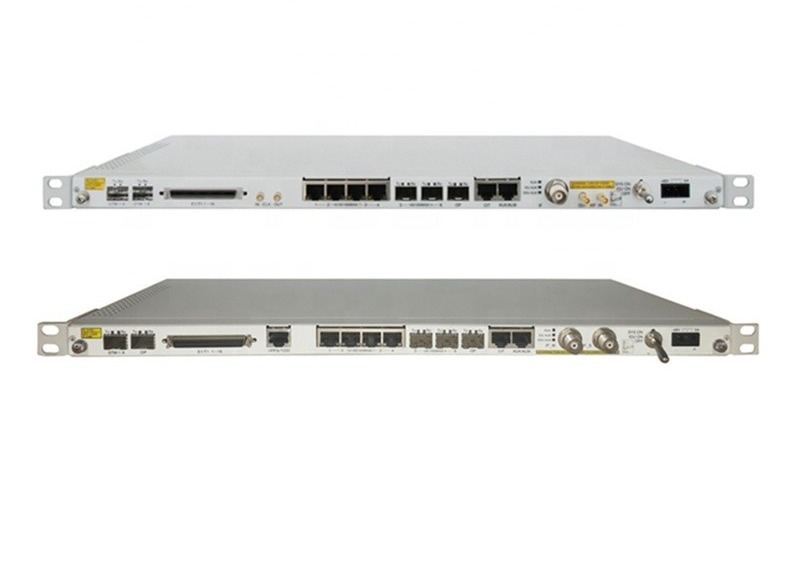

NIX-53 Chassis: 0.5U IDU Dimensions (H X W X D Mm ): 22 X 483 X 280 Mm

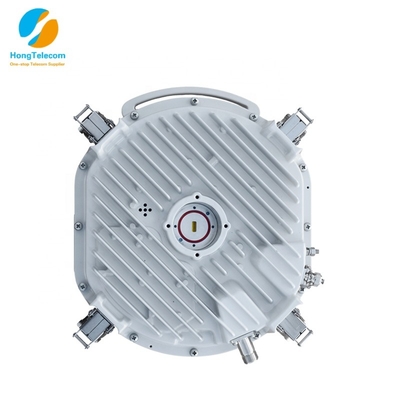

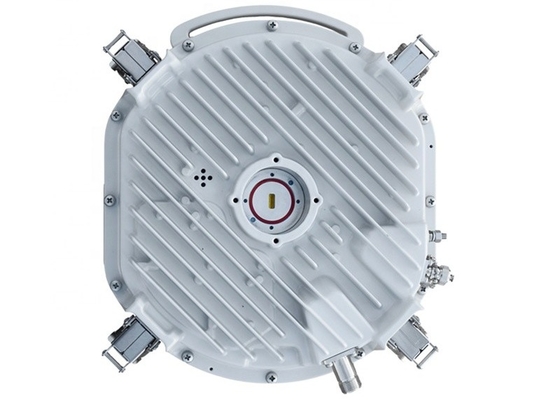

ODU Dimensions (H X W X D Mm ): 279 X 240 X 92 Mm IDU Weight (kg ): 3 KG
ODU Weight (kg ): 6.6 KG Power Consumption: 60W (1+0), Per System
Power Supply Voltage: -48V DC

Product Description

NIX-53 Hybrid Microwave Transmission 0.5U NIX53


Hybrid Microwave Transmission Solution NIX-53

Comba NIX-53 system offers full support for TDM services, as well as a rich set of advanced Carrier Ethernet services providing a wide range of new capabilities that meets the needs of mobile backhaul, ISPs, utilities, government and private networks.
NIX-53 coupled with full suite of management system (Web GUI and B/S T-NMS) simplify network provisioning and monitoring, and meet the most stringent SLAs.

NIX-53 Product Features
- 6-38GHz licensed bands
- ETSI & FCC channels: 7-112MHz
- QoS supported
- 10-1000 Mbps per radio carrier
- Nodal achitechture
- ACM supported: QPSK-2048QAM
- Integrated Ethernet switch


NIX-53 Hybrid Microwave Transmission  0.5U NIX53 0
NIX-53 Hybrid Microwave Transmission  0.5U NIX53 2
Product Specification
Type
NIX-53 Specification
Radio Parameters
Frequency Band
6 / 7 / 8 / 11 / 13 / 15 / 18 / 23 / 26 / 28 / 32 / 38GHz
Channel Bandwidth
ETSI: 7, 14, 28, 56,112MHz
FCC: 10, 20, 30, 40, 50MHz
Modulation
QPSK/16QAM/32QAM/64QAM/128QAM/ 256QAM/512QAM /1024QAM/2048QAM, ACM
Transmission Capacity
Maximum 1000Mbps per carrier
Performance
System Configuration
1+0, 1+1 (HSB / SD / FD),2+0 ,MRC,E-W,
Features
Hitless ACM, ATPC, AGC, FEC
Interface
Ethernet
4 x 10/100/1000Base-T (RJ-45)
2 x 100/1000Base-X(SFP)
1 x 100/1000/2000 Base-X(Reserved)
E1/T1*
Up to 16 xE1/T1 (Programmable), 120Ω balanced (RJ-45) or 75Ω unbalanced (BNC) via Interface Adapter
STM-1*
Up to 1 x STM-1 (SFP)
Serial Port
RS-232 via RJ-45 connector
LED Indicator
RUN, IDU Alarm, ODU Alarm, ETH
