DWDM ZXMP M721 ZTE SCOMD4 N3M1SCOMD4-5U 1US(II) 5US(II)

Product Details:

Place of Origin:	China
Brand Name:	ZTE
Certification:	CE FCC RoHS
Model Number:	ZXMP M721, N3M1SCOMD4

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

ZXMP M721 Sub-rack DX61:	1RU	ZXMP M721 Sub-rack DX62:	1RU
ZXMP M721 Sub-rack DX63:	1RU	ZXMP M721 Sub-rack CX66:	6U
ZXMP M721 Sub-rack CX66A:	6U	DWDM Application:	80x10G/100G/200G
CWDM Application:	18x2.5G Or 10x2.5G+8x10G

Product Overview

DWDM ZXMP M721 ZTE SCOMD4 N3M1SCOMD4-5U 1US(II) 5US(II)

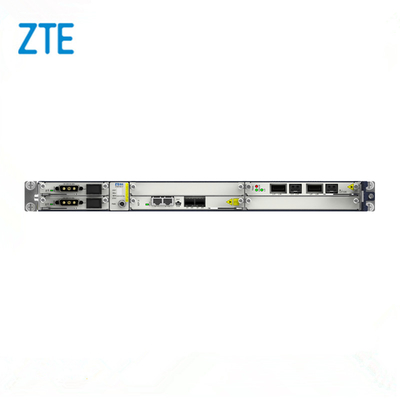

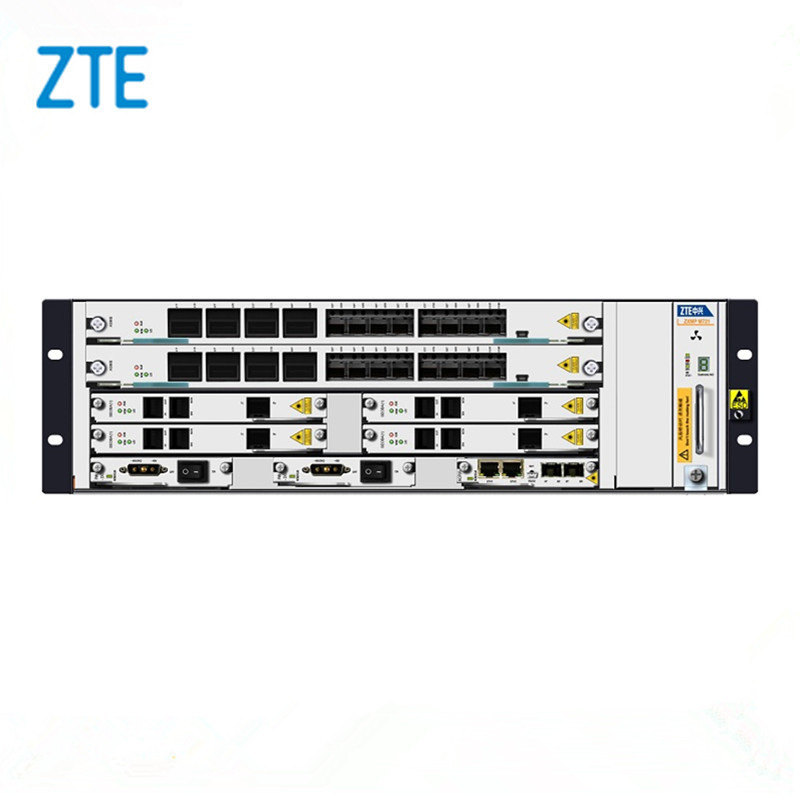

Product Appearance

The ZTE ZXMP M721

Rack(T-2200x600x300mm,Type IV)	N3M2DCM20-2C(A,LC)	DX62-DCF	DX62-DCB
Rack(T-2000x600x300mm,Type IV)	N3M2DCM40-2C(A,LC)	DX62-DCE	DX62-ACB
Rack(T-2200x600x300mm,Type III)	N3M2DCM10-2C(A,LC)	DX62-DCC	DX61-DC/ACB
Rack(T-2000x600x300mm,Type III)	N3M2DCM60-2C(A,LC)	DX62-ACF	DX61-DC/ACF
TS2C License	N3M2DCM80-2C(A,LC)	DX62-ACE	DX61-DC/ACE
TD2C License	N3M2DCM100-2C(A,LC)	DX62-ACC	DX61-DC/ACC
OTM License	N3M2DCM120-2C(A,LC)	DX62-DTC	N3M2NCP(II)
N3M1TS2CP license	N3M2DCM20-5C(A,LC)	DX62-ATC	N3M2NCP(I)
N3M1MQA2 license	N3M2DCM40-5C(A,LC)	DX62-DTF	N3M3NCP(I)
N3M1MQA1 license	N3M2DCM60-5C(A,LC)	DX62-ATF	N3M3NCP(II)
N3M1MJA license	N3M2DCM80-5C(A,LC)	DX62-DTE	N3M1SOP2(1550nm)
N3M1PW-DC	N3M2DCM100-5C(A,LC)	DX62-ATE	N3M1SOP2(1310nm)
N3M1PW-AC	N3M2DCM120-5C(A,LC)	DX62-DTB	N3M1SOP1(1550nm)
N3M1FAN	N3M2DCM Tray	DX62-ATB	N3M1SOP1(1310nm)

ZTE ZXMP M721 Product Specification

The ZTE ZXMP M721:

ZXMP M721 DX61 ( DC/AC Power )

ZXMP M721 DX62 ( DC/AC Power )

ZXMP M721 DX63 ( DC Power )

Rack dimension	2000/2200mm (H) × 600mm (W) × 300mm (D)
Sub-rack dimensions	1RU: 442mm (W) × 44mm (H) × 237.5mm (D) 2RU: 442mm (W) × 88.1mm (H) × 237.5mm (D)
Power supply	-48V or -60V DC (-72V~-40V) 110V or 220V AC (100V~240V)
Installation mode	ETS/IEC standard rack installation, hanging installation
Typical equipment power consumption	Single sub-rack(2RU DC input): < 280W Single sub-rack(2RU AC input): < 250W Single sub-rack(1RU): < 140W
Environmental parameter	Working temperature: 0℃~45℃ Working humidity: 10%~90% Storage temperature: -40℃~70℃
