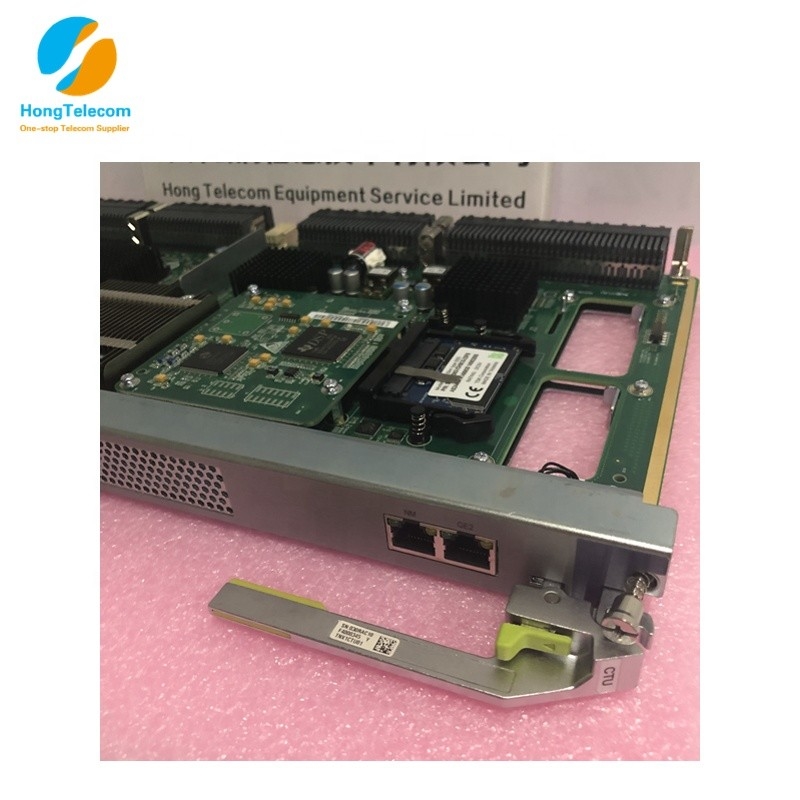

DWDM OSN 9800 P32 System Control and Communication Boards CTU TMP1CTU

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OSN 9800 P32

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Type:	Racks & Enclosure	Model:	TMP1CTU
Dimensions (H X W X D):	1390 Mm (54.7 In.) X 496 Mm (19.5 In.) X 315 Mm (12.4 In.)	Weight:	82 Kg (180.8 Lb.)
Standard Working Voltage:	-48 V Or -60 V DC Power Input

Product Introduction

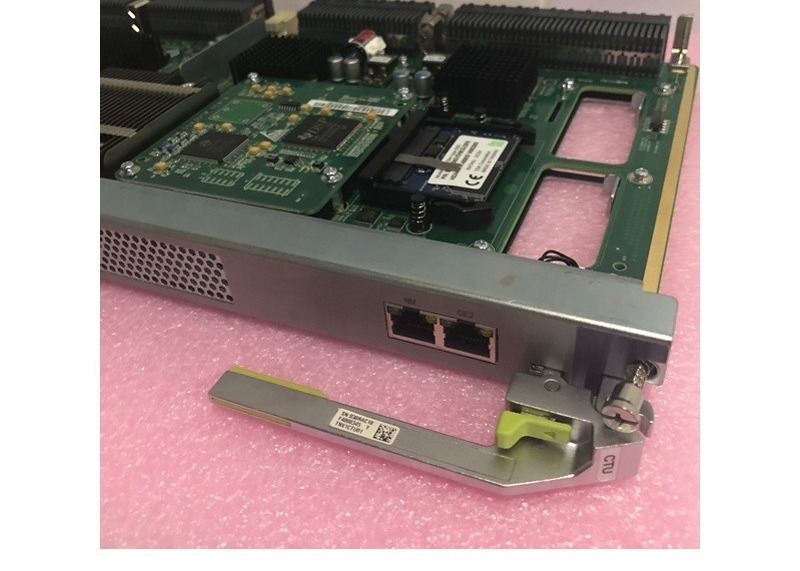

DWDM OSN 9800 P32 System Control and Communication Boards CTU TMP1CTU

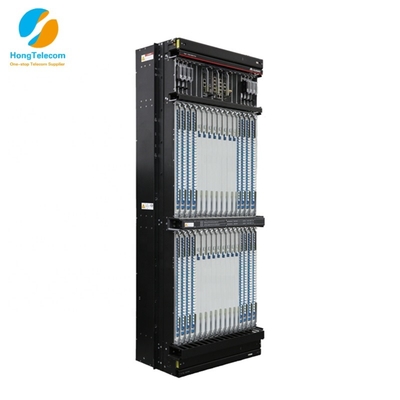

The huawei Optix OSN 9800 P32

Product Specifications

Subrack dimensions (mm)	1390 (H) x 496 (W) x 315 (D) (without cabinet)
Suitable cabinet	ETSI 300 cabinets, such as A63B
Max. number of slots for service boards	32
Max. number of wavelengths	Fixed grid: 96 wavelengths @50 GHz grid Flex grid: The maximum number of wavelengths is related to the width of the flex channel.
Wavelength range	DWDM system: 1529.16 nm to 1567.13 nm (extend C-band, ITU-T G.694.1)
Synchronization	* Synchronous Ethernet clock * IEEE 1588v2 * ITU-T G.8275.1
Power Supply	* Nominal working voltage:-48V DC/-60V DC * Working voltage range: * -48 V DC: -40 V to -57.6 V * -60 V DC: -48 V to -72 V

Our Warehouse

Our warehouses are located in Shenzhen, Shandong, Guangzhou and other places in China. The inventory value is over 5 million us dollars, occupies an area of 500㎡. Our export volumes is 1 million per month. We export products to Europe, America, the Middle East and Asia, etc.
