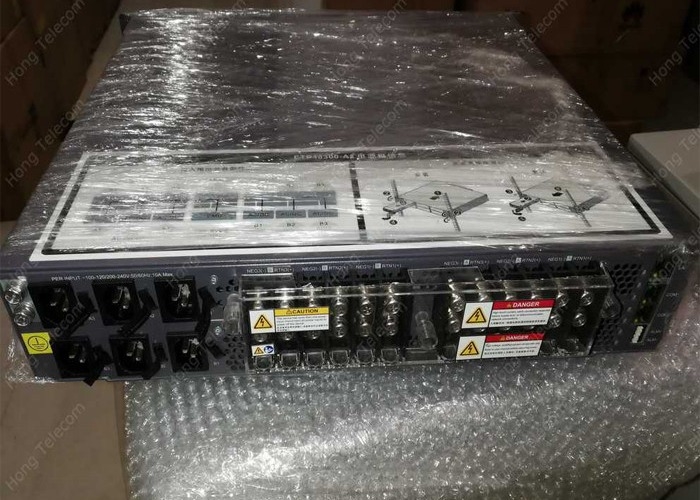

ETP48300-A2 Huawei Power Supply

ETP48300-A2 Huawei Power Supply

  • ETP48300-A2 Huawei Power Supply
ETP48300-A2 Huawei Power Supply
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: ETP48300-A2
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Model: ETP48300-A2 Rectifier Efficiency: >96%
Type: Embedded Power System Keywords: ETP48300-A2, Embedded Power Supply
Dimension(W*D*H): 482.6mm(W)*330mm(D)*219.5mm(5U, H) Rated Power: 3000W(176~300VAC)
Protection Level: IP20 AC Input Voltage: 380VAC/220VAC
Weight: ≤20kg (without Rectifiers)
High Light:

ETP48300-A2 Huawei Power Supply




ETP48300-A2 telecom rectifier 48v

Embedded Type Telecom Power System 48V DC ETP48300-A2

Embedded Type Telecom Power System 48V DC ETP48300-A2

Device Features

* Wide range of AC input voltage from 85V to 300V;
* Wide operation temperature range of rectifier from -40ºC to 75ºC;

* Online-swappable rectifier provides easy installation and maintenance;

* Standard installation structure design, adapting to various scenarios;
* Compact design, saving space and installation cost;
* High rectifier efficiency over 96% helps to save energy;
* Excellent rectifier dormancy function helps to increase system efficiency;
* Intelligent battery management and protection helps to prolong battery lifespan;
* Support environment monitoring and remote management through dry contact, serial interface or Ethernet interface;


Technical Specifications

Dimensions (H x W x D)
 482.6mm(W)×330mm(D)×219.5mm(5U, H)
Weight (empty)
≤20kg(without rectifiers and batteries)
Installation mode
· Installed on 19-inch rack, or embedded in cabinet
Cooling mode
· Natural cooling
Rectifier Input voltage
· 85VAC~300VAC, rated value: 220VAC
Communication port
· RS232/485, FE
Application Scenarios
·  Wireless base station ;
·  Transmission network ;
·  Communication network of enterprise
