WDM optical transmission OSN902 DCI Platform OSN 902

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OSN902

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Model:	OSN 902	Dimensions (H X W X D):	86.1 Mm X 442 Mm X 600 Mm
Maximum Capacity:	2.4 Tbit/s	Number Of Service Slots:	6
Cabinet:	19-inch Cabinet	Transport/Storage Temperature:	-40°C (-104°F) To +70°C (158°F)
Humidity:	5% To 95%, Non-condensing	Altitude:	< 5000 M
Rate Per Channel (maximum):	100G/200G

our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.

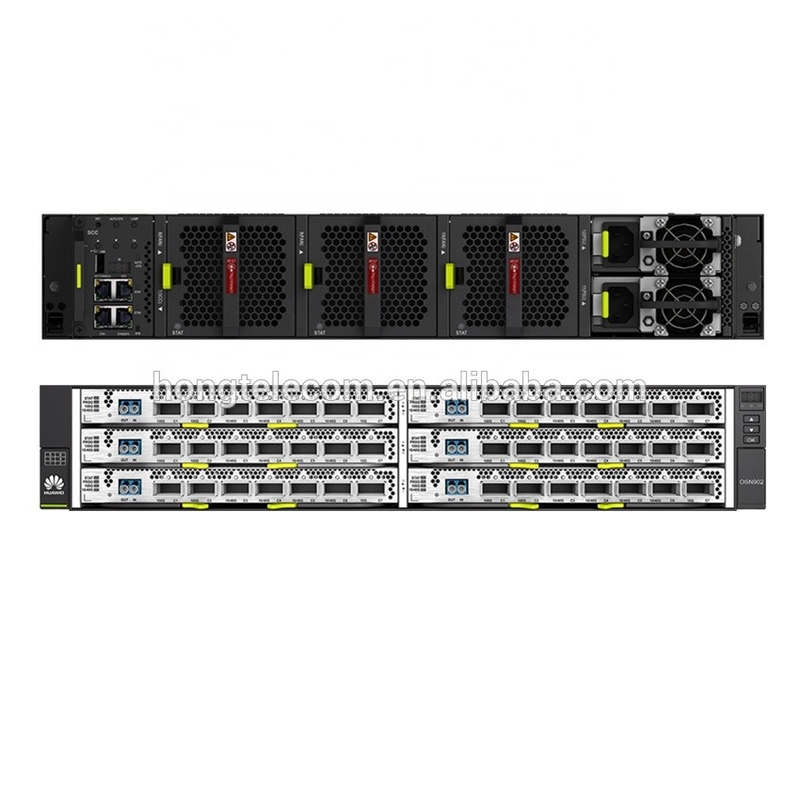

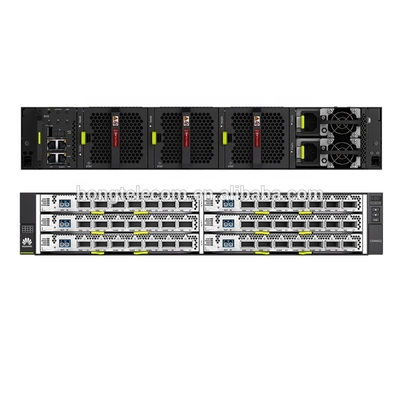

Huawei OSN902 DCI Platform

The OSN902 is a WDM transmission platform customized for Data Center Interconnect (DCI) applications. Its large transmission capacity, adaptation to installation conditions in DC equipment rooms, and simple management mode provide an optimal user experience on DCI carrier networks.

Based on open TSDN software architecture, the OSN902 provides various open interfaces. DCI users can perform secondary development to integrate this product's management into DC device management systems, reduce the difficulties in routine maintenance, and ensure the development of rapidly increasing DC services.

Product Specification

The Huawei OptiX OSN902 Specifications:

OptiX OSN902 Specifications	Details
Dimensions (H x W x D)	86.1 mm x 442 mm x 600 mm, 19 inch cabinet
Number of Service Slots	6 slots, 2.4T/Subrack
Line Side	Single Wavelength 100G (PDM-QPSK)/200G (PDM-16QAM) programmable
Client Side	Pluggable QSFP+/QSFP28, supporting 10 GE/40 GE/100 GE service access
Channel Spacing	100 GHz fixed grid for 40/48 wavelengths 50 GHz fixed grid for 80/96 wavelengths 37.5 GHz to 400 GHz flex grid
Rate per Channel (maximum)	100G/200G
Management	CLI/SNMP/NETCONF/U2000/Corba
Operational Features	L1 Encryption (AES256) LLDP
Power Supply	1+1 power supply redundancy AC power: 90V to 264V AC High voltage DC power: 192V to 288V HVDC
Heat Dissipation	2+1 fan module redundancy, ventilation from front to rear
