Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | TP48200A-HT15D3 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Product Name: | Huawei TP48200A-HT15D3 Power Cabinet | Application Scenarios: | Outdoor Carrier's Wireless Site; Enterprise Communication Network |
|---|---|---|---|
| System Capacity: | 200Ah | Dimension (W*D*H): | 650mm*650mm*1500mm |
| User Space: | 9U Or 25U | Heater: | 500W Or N/A |
| High Light: | TP48200A-HT15D3 Electrical Distribution Cabinet,9U 25U Electrical Distribution Cabinet,TP48200A-HT15D3 |
||

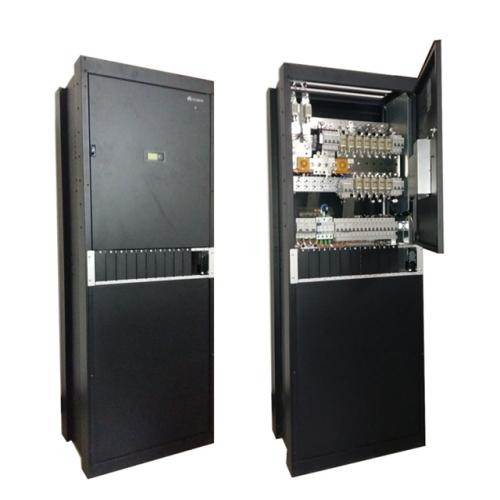

Telecom Power 48V 200Ah Outdoor Power Cabinet TP48200A-HT15D3
TP48200A(TP48400A) TP48200a-HD15A1 TP48200A-HT15D3 is an AC/DC outdoor power system that configures 48V/50A rectifier modules to supply rated of 200A(400A) output current, with various cooling system: heat exchanger(HEX), direct ventilation(DV) and TEC cooling. The power system has excellent performance such as wide range of AC input voltage, high power efficiency, intelligent battery management and remote monitoring.
Features:
• Cooling capacity up to 1500W, operation temperature can be -40ºC-45ºC, IP55 protect level, protect main equipment to be safe and reliable;
• High power efficiency of rectifier >98%, intelligent rectifier dormancy, saving energy;
• Support electronic labels, can be co-managed by HUAWEI main equipment OSS, saving management and maintenance cost;
• Intelligent battery management and online test, prolonging battery lifespan;
• Cooling system equipped in door, easy maintance;
Packing & Delivery
Delivery
1. 3-7 Working days after received the payment.
2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )
Packing
1. Original Carton Package.
2. As customers' requirement.
