Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | OSN 9800 U32 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | TNS2N504C01 TNS2N504C09 | OSN 9800 U32 Dimensions: | 1900x498x295mm |
|---|---|---|---|
| OSN9800 U32 Installation Rack: | ETSI 300/600mm Rack | Heat Dissipation: | Fan |
| Power Supply: | -48VDC/-60VDC | Rate Per Channel (Max.): | 100G, 200G, 400G, 1T, 2T |
| High Light: | TNS2N504C09 Huawei Telecom Equipment,TNS2N504 Huawei Telecom Equipment,DWDM OSN 9800 Huawei Platform |
||

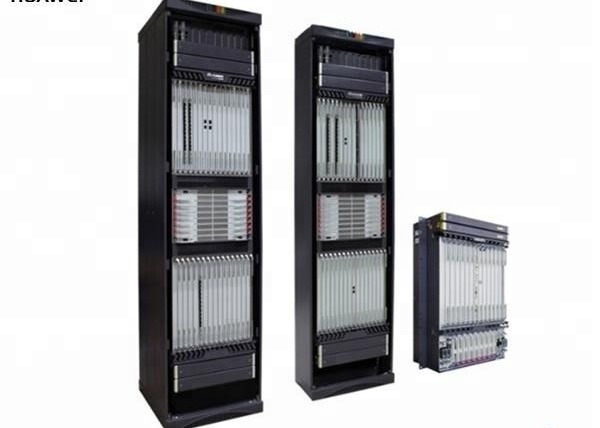

Huawei Optix OSN 9800 U64 U32 U16
The Huawei OptiX OSN 9800 Specifications:
|
Specifications
|
|
OSN 9800 U16
|
OSN 9800 U32
|
OSN 9800 U64
|
|||
|
Dimensions (HxWxD)
|
|
847x442x295mm
|
1900×498x295mm
|
2200x600x600mm(with cabinet)
|
|||
|
Number of Service Slots
|
|
14
|
32
|
64
|
|||
|
Switching
Capability
|
Optical
|
Up to 20-degree C-D-C-G ROADM
|
|
|
|||
|
|
Electrical
|
5.6Tbit/s universal switching
|
6.4 /12.8Tbit/s universal switching
|
12.8/25.6Tbit/s universal switching
|
|||
|
Number of
Ports |
Max OTU4 Ports
|
28/56
|
64/128
|
128/256
|
|||
|
|
Max 100GE Ports
|
28/56
|
64/128
|
128/256
|
|||
|
|
Max OTU3 Ports
|
28
|
64
|
128
|
|||
|
|
Max 40GE Ports
|
28
|
64
|
128
|
|||
|
|
Max OTU2 Ports
|
280
|
640
|
1280
|
|||
|
|
Max 10G Ports
|
280
|
640
|
1280
|
|||
|
|
Max GE/2.5G Ports
|
420
|
960
|
1920
|
|||
|
|
Max OTUC2 Ports
|
14
|
32
|
64
|
|||
|
|
Max OTUC4 Ports
|
7/14
|
16/32
|
32/64
|
|||
|
Channel Spacing
|
|
50/100GHz fixed grid for 40/80-ch
|
|
|
|||
|
|
|
Flex-grid
|
|
|
|||
|
Wavelength Range
|
|
DWDM: 1529.16 nm to 1560.61 nm (C Band, ITU-T G.694.1)
|
|
|
|||
|
Rate per Channel (Max.)
|
|
100G, 200G, 400G, 1T, 2T
|
|
|
|||
|
Service Types Supported
|
|
SDH, SONET, Ethernet, SAN, OTN, video
|
|
|
|||
|
Topology
|
|
Point-to-point, chain, star, ring, ring-with-chain, tangent ring, intersecting ring and mesh
|
|
|
|||
|
Redundancy
and Protection |
Equipment
|
1+1 power input protection, 1+1 fan protection, M:N switch board protection, 1+1 controller protection
|
|
|
|||
|
|
Network
|
OTN: Optical line protection, client 1+1 protection, ODUk SNCP, tributary SNCP, intra-board 1+1
protection,LPT, ASON/GMPLS PKT: PW APS, Tunnel APS, LAG |
|
|
|||
|
Optical Power Management
|
|
ALS, AGC, ALC, APE, IPA
|
|
|
|||
|
Synchronization
|
|
IEEE 1588v2, Sync-E
|
|
|
|||
|
|
|
2Mbit/s or 2MHz (with the SSM function), ITU-T G.703-compliant external clock source
|
|
|
|||
|
|
|
External clock source (1PPS+TOD)
|
|
|
|||
|
ASON/GMPLS
|
|
Automatic network discovery
|
|
|
|||
|
|
|
ODUk/λ level protection and restoration
|
|
|
|||
|
|
|
5-Level SLA (Service Level Agreement) provisioning
|
|
|
|||
|
|
|
End-to-end service configuration
|
|
|
|||
|
|
|
Shared Risk Link Group (SRLG)
|
|
|
|||
|
|
|
Traffic engineering
|
|
|
|||
|
T-SDN
|
|
Automation, IP+Optical , BOD
|
|
|
|||
|
Installation Rack
|
|
ETSI/19 inch rack
|
ETSI 300/600mm rack
|
ETSI 600mm rack
|
|||
|
Heat Dissipation
|
|
Fan
|
|
|
|||
|
Power Supply
|
|
-48VDC/-60VDC
|
|
|
|||
|
Operation Environment
|
|
Temperature:
Long-term operation: 5°C to 40°C Short-term operation: -5°C to 45°C |
|
|
|||
|
|
|
Relative humidity:
Long-term operation: 5% to 85% Short-term operation: 5% to 90% |
|
|
|||
