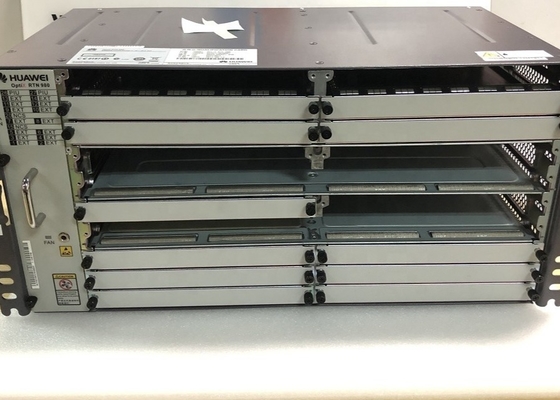

RTN 980 IP microwave transmission equipment HUAWEI RTN980

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	RTN980

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

OptiX RTN980:	5U	Channel Spacing:	3.5/7/14/28/40/50/56MHz
Maximum Throughput:	> 600Mbps	Working Temperature:	IDU -5℃~+60℃ ; ODU -35℃~+55℃
Relative Humidity:	IDU 5%~95% ,ODU 5%~100%	DC Power:	-38.4V ~ -57.6V
AC Power:	220V

Product Overview

OptiX RTN 980 IP microwave transmission requirements HUAWEI RTN980

BOM	Model	Description
88031HMX	SL8S00V1R501	Basic Software Package,V100R005(Per Subrack)
88031WUF	SL8S00V1R600	Basic Software Package,V100R006(Per Subrack)
88032JJT	SLBS00V1R700	RTN 980 Basic Software Package,V100R007(Per Subrack)
88032XPL	SLBS00V1R800	RTN 980 Basic Software Package,V100R008(Per Subrack)
88031LCA	SLBSFUNP9801	RTN 980 Value-Added Function Package, up to V100R005
88031HLQ	SLBSSFAFEE01	RTN 980 Software Annual Fee (with Value-Added Function), up to V100R005
04120247	C16E1A000	Trunk Cable,1.5m,75ohm,16E1,Anea 96F-I,2SYFVZP75-1.1/0.2616(S),2*D37M
25030717	C4506GY00	Power Cable,450V/750V,H07Z-K UL3386,6mm^2,Gray,58A,LSZH Cable,VDE,UL (Unit:meter)
25030703	CGND00606	Power Cable,450V/750V,H07Z-K UL3386,6mm^2,Black,58A,LSZH Cable,VDE,UL (Unit:meter)
25030697	CPWR00607	Power Cable,450V/750V,H07Z-K UL3386,6mm^2,Blue,58A,LSZH Cable,VDE,UL (Unit:meter)
02120558	LE0MDCPDBX00	Front-access-maintained Cabinet Power Distribution Box
25030731	P-6mm^2-Red-LSZH	Power Cable,450V/750V,H07Z-K UL3386,6mm^2,Red,58A,LSZH Cable,VDE,UL (Unit:meter)

Technical Specifications

The OptiX RTN 980 adopts a split structure. The system consists of the IDU 980 and the ODU. Each ODU is connected to the IDU 980 through an IF cable.

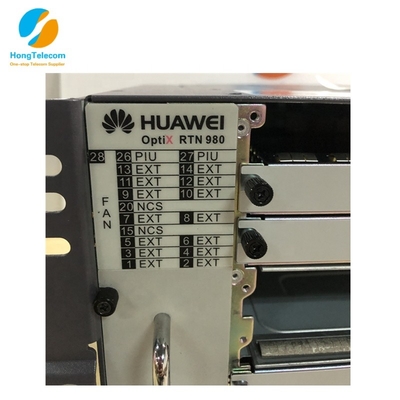

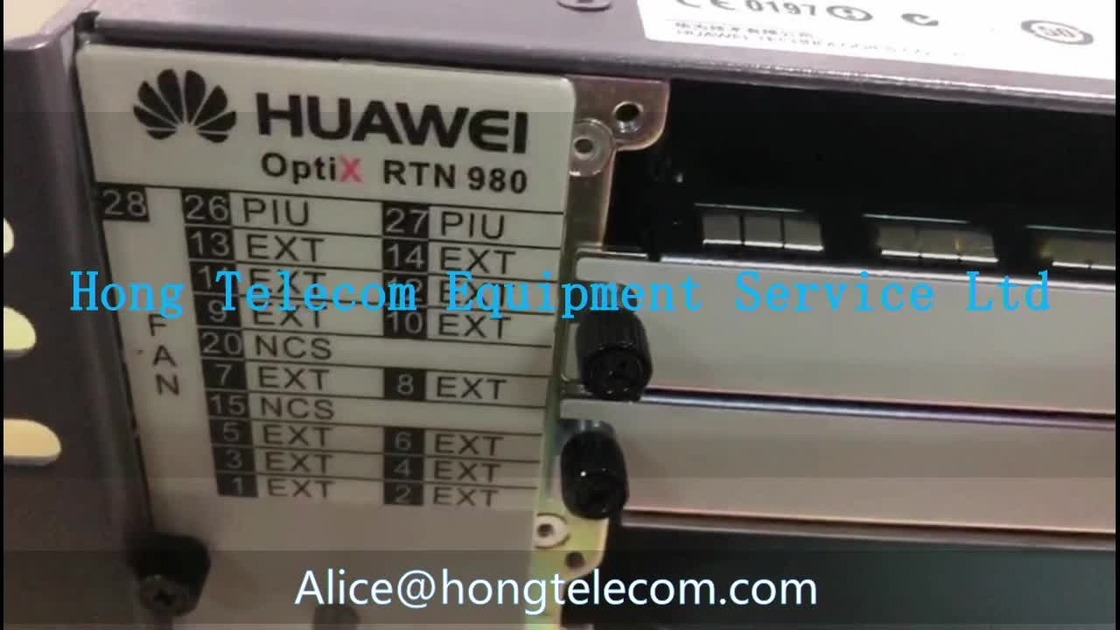

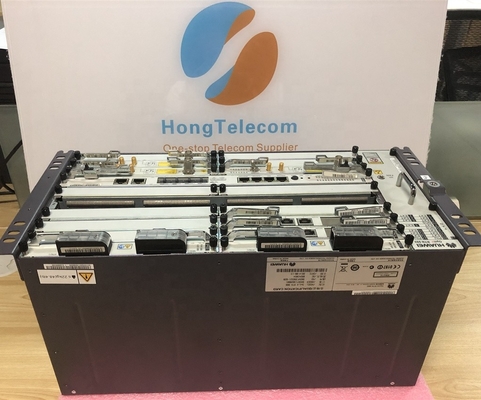

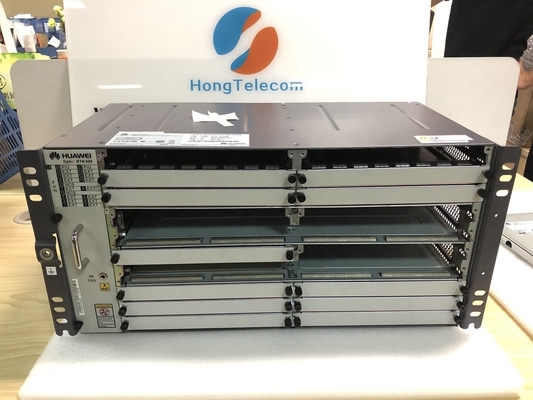

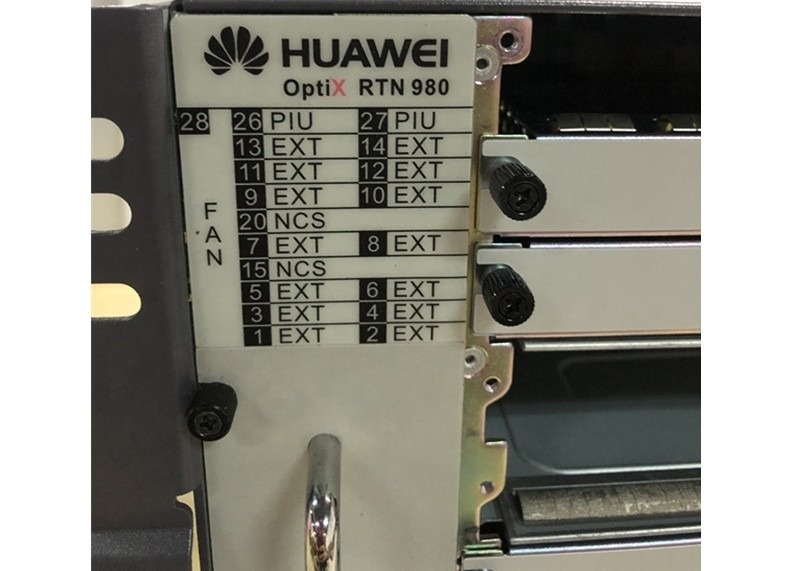

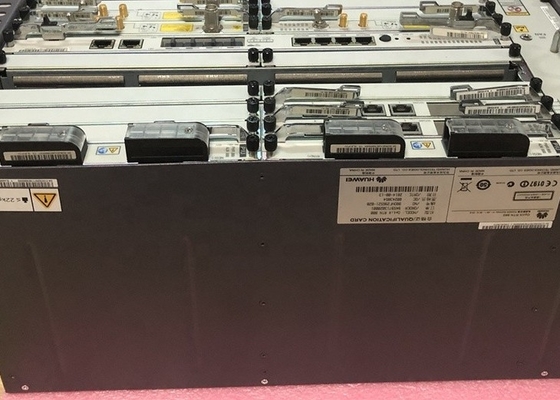

IDU 980
The IDU 980 is the indoor unit for an OptiX RTN 980 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

IDU 980 Item	Description
Chassis height	5U
Pluggable	Supported
The maximum number of radio directions	20
RF configuration mode	N+0 non-protection configuration Nx(1+0) non-protection configuration 1+1 protection configuration N+1 protection configuration XPIC configuration 2CA configuration 4x4 MIMO configuration
Service interface type	Native E1 interface Smart E1 interface STM-1 optical/electrical interface STM-4 optical interface FE optical/electrical interface GE optical/electrical interface 2.5GE optical interface 10GE optical interface

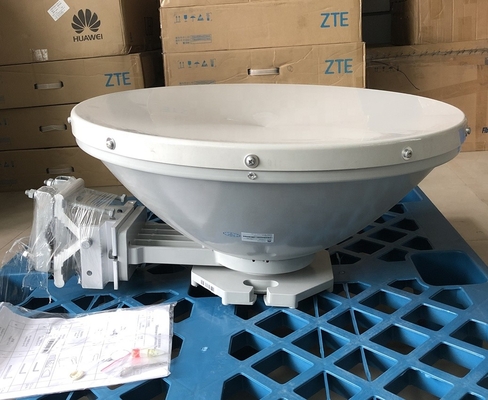

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.
The OptiX RTN 900 product series can use the RTN 600 ODU and RTN XMC ODU, covering the entire frequency band from 6 GHz to 42 GHz.

RTN XMC ODUs that the OptiX RTN 980 supports

ODU type	Frequency band	Highest-order Modulation	Channel spacing
XMC-2	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz	2048QAM (13/15/18/23/38 GHz, 7/8 GHz XMC-2E) 1024QAM (6/10/10.5/11/26/28/32/42 GHz) 256QAM (7/8 GHz Normal)	3.5/7/14/28/40/50/56 MHz
XMC-2H	6/7/8/11 GHz	2048QAM	7/14/28/40/56 MHz
XMC-3	7/8/11/13/15/18/23/26/28/32/38 GHz	4096QAM (7/8/11/13/15/18/23/26 GHz) 2048QAM (28/32/38 GHz)	3.5/7/14/28/40/56 MHz (7/8/11/13/15/18/23/26/28/38 GHz) 3.5/7/14/28/40/56/112 MHz (32 GHz)
XMC-3W	7/8/13/18/15/23 GHz	4096QAM	3.5/7/14/28/40/56 MHz
XMC-3H	15/18/23/28/38 GHz	8192QAM (28/40/56 MHz) 4096QAM (112 MHz) 2048QAM (14 MHz) 1024QAM (7 MHz)	3.5/7/14/28/40/56/112 MHz
XMC-5D	13/15/18 GHz	4096QAM (28/40/56/112 MHz) 2048QAM (7/14 MHz)	7/14/28/40/56/112 MHz

RTN 600 ODUs that the OptiX RTN 980 supports

Item	High-Power ODU	Standard Power ODU	Low Capacity ODU
ODU type	HP, HPA	SP, SPA	LP
Frequency band	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38 GHz (HP ODU) 6/7/8/11/13/15/18/23 GHz (HPA ODU)	7/8/11/13/15/18/23/26/38 GHz (SP ODU) 6/7/8/11/13/15/18/23 GHz (SPA ODU)	7/8/11/13/15/18/23 GHz
Highest-order Modulation	256QAM	256QAM	16QAM
Channel spacing	7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz) 7/14/28 MHz (10.5 GHz)	3.5/7/14/28 MHz	3.5/7/14/28 MHz
