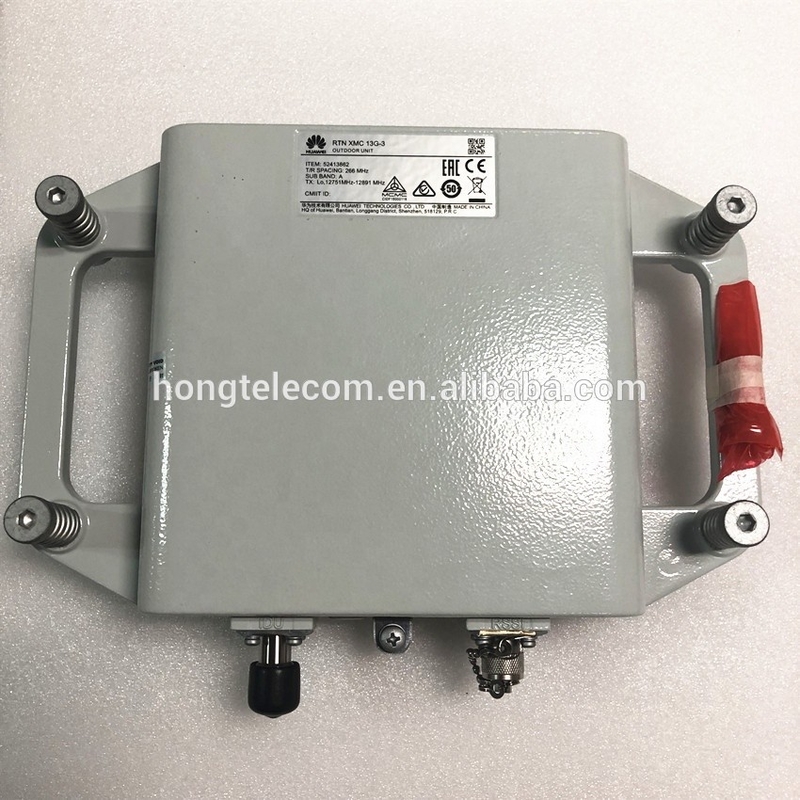

RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G)

RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G)

  • RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G)
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G)
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: RTN 905, ODU(XMC-2-38G)
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Channel Spacing: 3.5/7/14/28/40/50/56MHz Maximum Throughput: > 600Mbps
Working Temperature: IDU -5℃~+60℃ ; ODU -35℃~+55℃ Relative Humidity: IDU 5%~95% ,ODU 5%~100%
DC Power: -38.4V ~ -57.6V AC Power: 220V

Contact Us
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 0

52413088 ODU(XMC-2-38G) Microwave Outdoor Unit, RTN XMC,38G,-2,1260MHz,Sub Band B,Low site,H ,37604MHz,38192MHz,Without doc,WR-28,H01

Huawei's RTN 900 series is the industry's first TDM/Hybrid/Packet/Routing integrated IP microwave product. It can meet voice transmission requirements in the 2G era, voice and data transmission requirements in the 3G era, as well as broadband data transmission requirements in the LTE era, effectively protecting operator investments in infrastructure.

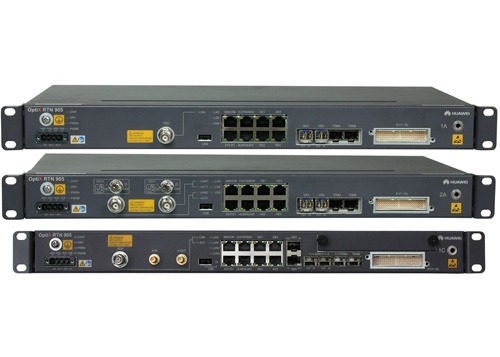

OptiX RTN 905

Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and hybrid networking. OptiX RTN 900 Series systems support voice transmission on 2G networks, voice and data services on 3G networks, and broadband data services on LTE networks.

RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 2
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 4
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 6
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 8
Features

1.  All-IP: Full Service Transmission, Smooth Network Evolution
As the industry's first IP microwave product that supports E2E MPLS-TP and IP/MPLS (L3VPN), RTN 900 can be used to build connectivity-oriented packet networks. It supports unified transmission of TDM/ATM/IP services and smooth evolution to packet networks, allowing operators to fully utilize existing network infrastructure.

RTN 900 takes the lead in supporting both high-precision IEEE 1588v2 and synchronous Ethernet, meeting phase and frequency synchronization requirements of 2G, 3G, and LTE base stations. This feature means less GPS equipment is needed on the base station side, reducing GPS deployment and maintenance costs, which in turn reduces network TCO.

2.
Ultra Broadband: Efficient Mobile Backhaul

RTN 900 uses hitless adaptive modulation (AM), which supports switching among 13 levels of modulation schemes (QPSK to 4096QAM), to adjust bandwidth based on link quality over air interfaces. This feature enhances the spectral efficiency. Compared with the fixed modulation mode, the AM technology increases transmission bandwidth six-fold.
RTN 900 applies the cross polarization interference cancellation (XPIC) and four-layer frame header compression technologies. With these technologies, the maximum capacity of a channel can reach 2.5 Gbit/s, providing large bandwidth for mobile backhaul.
With enhanced physical link aggregation (EPLA), RTN 900 can aggregate a maximum of 12 IF links, enabling load sharing of up to 10 Gbit/s Ethernet services and meeting the bandwidth requirements of LTE.

3.  Networking Microwave Solution, Reducing CAPEX and OPEX
RTN 900 has a built-in TDM/packet dual-bus switching platform, which can implement E2E switching of TDM and packet services, allowing quick service provisioning and multi-direction networking.
RTN 900 and optical transmission equipment can be managed by a unified NMS, enabling E2E service deployment. Huawei also provides full-outdoor microwave solutions, providing the right gear for each deployment area.
Up to September 2014, Huawei had deployed 1 million microwave hops in more than 100 countries for over 30 of the top 50 global operators.

Related Products
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 10
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 12
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 14

HUAWEI RTN310

HUAWEI RTN360

HUAWEI RTN380

RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 16
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 18

HUAWEI RTN905

HUAWEI RTN910

RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 20
RTN 905 Microwave Outdoor Unit RTN XMC 52413075 52413088 ODU(XMC-2-38G) 22

HUAWEI RTN950A

HUAWEI RTN980

RTN905
RTN910
RTN950A
RTN980
Support frequency
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz
Channel spacing
3.5/7/14/28/40/50/56MHz
Maximum RF direction
1U/2
2U/6
2U/6
5U/14
Maximum throughput
> 600Mbps
Packet switching capability
8Gbps
10Gbps
10Gbps
22Gbps
Interface Type
E1/STM-1/FE/GE
E1/STM-1/FE/GE
E1/STM-1/FE/GE
E1/STM-1/STM-4 /FE/GE
IEEE1588v2
SUPPORT
Working environment
Working temperature:   IDU -5℃~+60℃ ; ODU -35℃~+55℃

Relative humidity:   IDU 5%~95% ,ODU 5%~100%
Power supply range
DC Power -38.4V ~ -57.6V

AC Power 220V
IDU Weight
2.7kg
5.4kg
5.4kg
15.4kg
