Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |

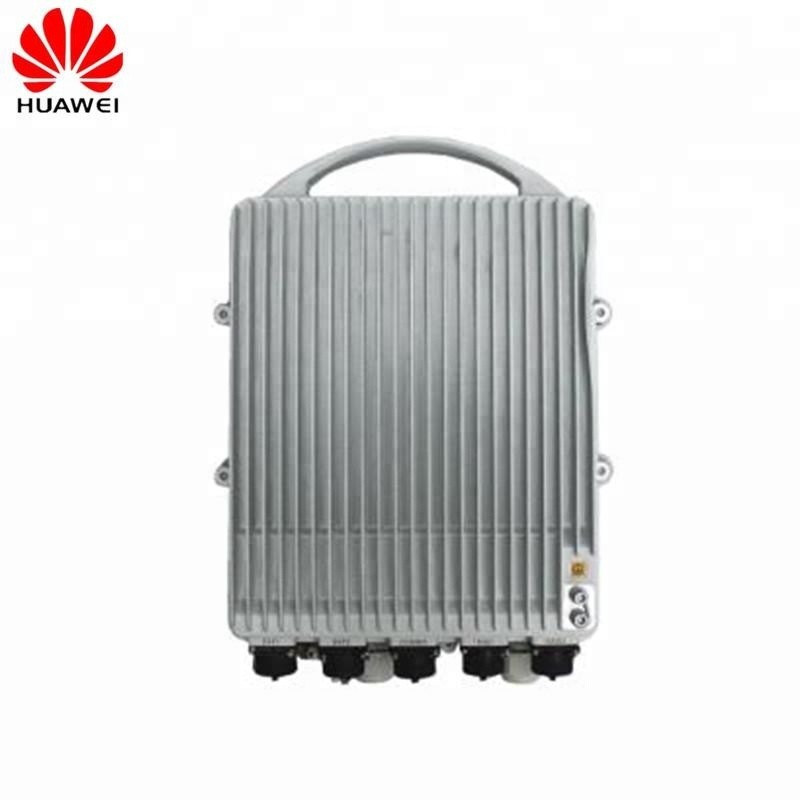

| Model Number: | RTN 380H |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | RTN 380H | Dimensions (H X W X D): | 320 Mm X 265 Mm X 95 Mm |
|---|---|---|---|
| Frequency Bands: | 71-76 GHz And 81-86 GHz | Channel Spacing: | 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, And 750 MHz |
| RF Configuration Mode 1: | 1+0 Mode | RF Configuration Mode 2: | 2+0 Mode |
| RF Configuration Mode 3: | 1+1 Hot Standby (HSB) | RF Configuration Mode 4: | CCDP (common Mode) |
| RF Configuration Mode 5: | XPIC (enhanced Mode) | RF Configuration Mode 6: | Multiple RF Directions |
RTN 380 specifications meet the high bandwidth requirements in E-Band microwave transmission. RTN 380 also has unique advantages in maintenance capabilities.
Item | RTN 380H specifications |
Microwave types | IP microwave over native Ethernet Microwave carrying common public radio interface (CPRI) services Microwave carrying open base station architecture initiative (OBSAI) services |
Frequency bands | 71-76 GHz and 81-86 GHz |
Channel spacing | Common mode: 250 MHz, 500 MHz, 750 MHz, 1000 MHz, 1500 MHz, and 2000 MHz Enhanced mode: 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, 750 MHz, 1000 MHz, 1500 MHz, and 2000 MHz |
Modulation schemes | Common mode: BPSK, QPSK, 16QAM Strong, 16QAM, 32QAM, 64QAM, 128QAM, and 256QAM Enhanced mode: BPSK, QPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 512QAM, and 1024QAM |
Capacity | Maximum air capacity: 10 Gbit/s Maximum air-interface service throughput: 10 Gbit/s Maximum switching capacity: 42 Gbit/s |
RF configuration modes | 1+0 2+0 1+1 hot standby (HSB) CCDP (common mode) XPIC (enhanced mode) Multiple RF directions |
Channel configuration modes | Adjacent channel alternate polarization (ACAP) Adjacent channel co-polarized (ACCP) Co-channel dual polarization (CCDP) |
AMAC | Supported |
ATPC | Supported |
Super Dual Band | Support for working as a secondary device to form a Super Dual Band solution together with the RTN 900 Support for working as a primary advice to form a full-outdoor Super Dual Band solution together with the RTN 320/RTN 380H when it works in enhanced mode. Support for working as a primary device to form a Super Dual Band solution together with third-party common-band microwave links when it works in enhanced mode. |
Service ports | Three 10GE SFP optical ports, one GE electrical port, and one power over Ethernet (P&E) port for transmitting Ethernet services (two 10GE SFP ports can also use GE electrical modules) Three CPRI ports for transmitting CPRI services Three OBSAI ports for transmitting OBSAI services |
Service types | Native Ethernet services: E-Line service and E-LAN service PW-carried Ethernet services: E-Line service, E-Aggr service, and E-LAN (VPLS) service (VPLS standing for virtual private LAN service) CPRI services operating at Option 2 to Option 7 rates OBSAI services operating at 1.536 Gbit/s and 3.072 Gbit/s |
QoS/HQoS | Supported |
MPLS Tunnel | Supported |
PWE3 | Supported |
Clock features | 1.Supported clock sources: Microwave link clock Synchronous Ethernet clock 2.IEEE 1588v2 time synchronization 3.ITU-T G.8275.1 time synchronization |
Power supply modes | Direct current (DC) power or Power over Ethernet, (generally, connected to an RTN B20 PI) |
Dimensions (H x W x D) | 320 mm x 265 mm x 95 mm |
Antennas | 0.2 m, 0.3 m, and 0.6 m dish antennas 0.3 m flat antennas |
HUAWEI RTN310
HUAWEI RTN360
HUAWEI RTN380
RTN310 | RTN360 | RTN380 | |||
Support frequency | 13/15/18/23/38GHz | 59-64GHz | 71-86GHz | ||
Channel spacing | 7/14/28/56MHz | 200MHz | 62.5/125/250/500/750MHz | ||
Modulation mode | QPSK Strong~2048QAM Light | 160QAM | QPSK Strong~64 QAM | ||
Throughput | 2Gbps Max | 400Mbps | 4Gbps Max | ||
Business interface | GE | GE | GE, CPRI interface | ||
USB interface | Support | Support | Support | ||
Working environment | Working temperature : -35℃~+55℃ Relative humidity: 5%~100% | ||||
Power supply range | Support Ethernet power supply; Support DC power : -38.4V ~ -57.6V | ||||
Weight | 6kg | 2.5kg | 3.8kg | ||
HUAWEI RTN905
HUAWEI RTN910
HUAWEI RTN950A
HUAWEI RTN980
