Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | RTN310 |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Working Temperature: | -35℃~+55℃ | Relative Humidity: | 5%~100% |
|---|---|---|---|
| DC Power: | -38.4V ~ -57.6V |
RTN300 series of new generation of outdoor IP microwave transmission system
Huawei RTN300 series, is a highly integrated full-outdoor microwave products. Including RTN310, RTN360, RTN380 three products. RTN300 series is the microwave equipment, all the features are integrated in an outdoor box, to achieve zero-site full outdoor installation;
The RTN310 is a full-band microwave in the conventional frequency range and requires the use of a conventional frequency band. The RTN360 is a V-band microwave, the RTN380 is an E-band microwave, and the E / V-band is a free band in most countries. Light-charged band. As a result, the RTN300 Series provides enterprise customers with a complete outdoor microwave transmission solution with low network costs and low operating costs.

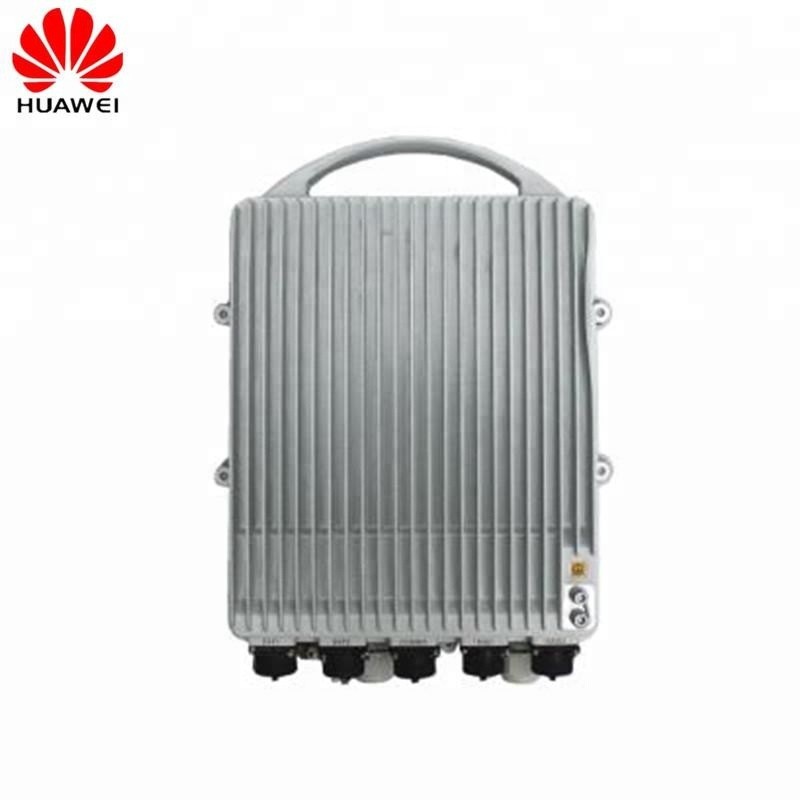

HUAWEI RTN310
HUAWEI RTN360
HUAWEI RTN380
RTN310 | RTN360 | RTN380 | |||
Support frequency | 13/15/18/23/38GHz | 59-64GHz | 71-86GHz | ||
Channel spacing | 7/14/28/56MHz | 200MHz | 62.5/125/250/500/750MHz | ||
Modulation mode | QPSK Strong~2048QAM Light | 160QAM | QPSK Strong~64 QAM | ||
Throughput | 2Gbps Max | 400Mbps | 4Gbps Max | ||
Business interface | GE | GE | GE, CPRI interface | ||
USB interface | Support | Support | Support | ||
Working environment | Working temperature : -35℃~+55℃ Relative humidity: 5%~100% | ||||
Power supply range | Support Ethernet power supply; Support DC power : -38.4V ~ -57.6V | ||||
Weight | 6kg | 2.5kg | 3.8kg | ||
1. Large bandwidth:
RTN310 support up to 2Gbps / carrier frequency large bandwidth, continuous expansion of the network worry;RTN360 support a single device 400Mbps transmission, close to zero-site deployment worry-free;RTN380 support a single device 4Gbps high-capacity transmission, to meet the backbone of large-capacity short-range return.
2. High reliability:
Support network-level, link-level, device-level multi-level protection; to meet the IP65 dustproof and waterproof 8KA mine grade requirements to ensure reliable operation in harsh environments in various fields.
3. Good luck:
Support engineers under the tower operation and maintenance, without climbing tower; support the deployment of USB configuration to enhance efficiency; support 360-degree automatic sweep, easy to select frequency.
HUAWEI RTN905
HUAWEI RTN910
HUAWEI RTN950A
HUAWEI RTN980
1. 3-7 Working days after received the payment.
2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )
1. Original HUAWEI Carton Package.
2. As customers' requirement.
Contact Person: Mr. Leo yang
Tel: +86 15684227158
