Name: OSN 1800 AC Power DWDM Equipment HUAWEI OSN1800 I
Brand: Uonel Co.Limtied
SKU: OSN 1800
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

AC Power: 110V - 220V

OSN 1800 I Size: 44*435*220mm

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: OSN 1800

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

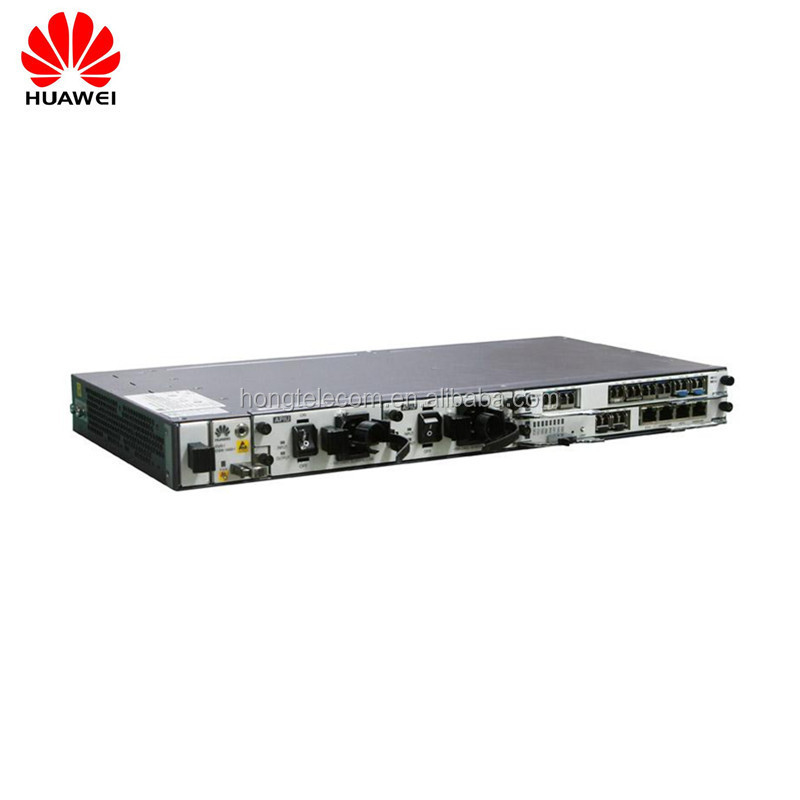

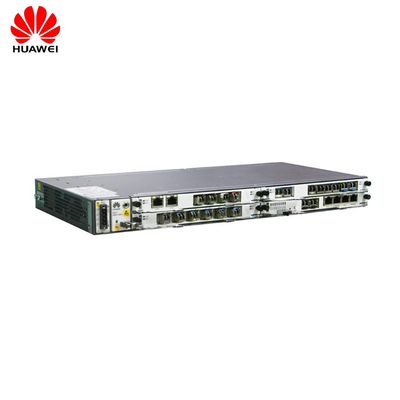

OSN 1800 AC Power DWDM Equipment HUAWEI OSN1800 I

Product Description

Integrated with both OTN and WDM features, the OptiX OSN 1800 enables various services at the metropolitan network edge, such as FBB, leased line, and wireless services(MBB and front-haul), to share WDM network resources for unified transmission of services on the same network. The following issues of access and transport networks can be resolved:

1. How to realize unified transmission of multiple services ranging from 100 Mbit/s to 10Gbit/s~100 Gbit/s
2. How to provide networks with long-haul transmission features and fewer transmission nodes
3. How to slash maintenance and operation costs
4. How to effectively reduce the ever-increasing equipment power consumption and electricity costs
5. How to realize smooth upgrade of networks and safeguard investments

	OSN 1800 I	OSN 1800 II
Device Size	44(H)435(W)220(D) mm	88(H)435(W)220(D) mm
Business Slot	3 Slots	7 Slots
Capacity	4 wave access (OTM)	8 wave protection (OADM)
Max Wave	CWDM: 8 Wave ; DWDM: 40 Wave
Single channel maximum rate	100 Gbits/s (OTU4)
Install mode	19''/23'' Cabinet , ETSI 300mm/600mm cabinet the wireless base station outdoor cabinet, FTTx outdoor cabinet, hanging wall,
Power supply mode	AC: 110-220V OR DC: -48/-60V (Support 1+1 backup power input )

Features

1. Transmission of all services over a single network: the OptiX OSN 1800 encapsulates all services, from low-rate services (such as FE services) to high-bandwidth services (such as 10G/100G services of any protocol), into OTN frames for transmission. A highly integrated 1 U chassis can access 16 GE services and 2 U chassis can access 48 GE services.

2. Long-distance transmission with fewer nodes: The standard OTN interface supports the forward error correction (FEC) function. After OTN technology is applied to the traditional CWDM system, a transmission distance of up to 120 km (33 dB) is supported, a great improvement compared to the traditional 80 km limit. When EDFA is added, the transmission can be further increased to 170 km, long enough for metropolitan transmission.

3. Lower maintenance cost and operation cost: Multi-service, long-distance, and large-capacity transmission helps simplify the network structure. The service processing and switching equipment, network management system (NMS), and OSS are all configured at the central node in the system. Equipment with simplified transport functions is deployed in unattended equipment rooms in remote areas for wide coverage. OTN inband management is supported. Unified management and maintenance of all SDH and WDM/OTN equipment can be achieved without any additional investment on the NMS.

4. Hybrid networking of CWDM and DWDM: This networking mode enables smooth upgrade from CWDM to DWDM.

5. Environment-friendly with lower power consumption: The "All over WDM/OTN" technology helps service equipment be deployed centrally at large sites and directly connected to the client equipment by distance extension technology. The number of end nodes can be decreased by 30% to 90%. The OptiX OSN 1800 adopts natural heat dissipation and uses AC power. The case-like design facilitates flexible deployment at any site. A typical 1 U chassis consumes less than 25 W, which is less than the power consumption of a table lamp.

Packing & Delivery

Delivery

1. 3-7 Working days after receive the payment.

2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )

Packing

1. Original HUAWEI Carton Package.

2. As customers' requirement.
