OptiXtrans E9600 Intelligent Optical Transmission Platform OptiXtrans E9612

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	OptiXtrans E9612

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Model:	OptiXtrans E9612	OptiXtrans DC908 Dimensions:	347.2 X 442 X 291 Mm
Number Of Service Slots:	13	Rate Per Channel (maximum):	100G/200G/400G/600G

Product Introduction

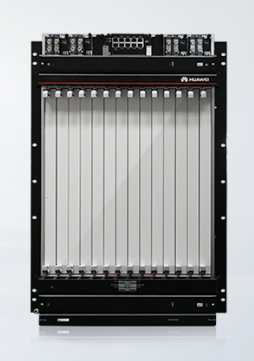

OptiXtrans E9600 Intelligent Optical Transmission Platform OptiXtrans E9612

OptiXtrans E9600

OptiXtrans E9600 is a large-capacity, intelligent, optical-electrical integrated, next generation Multi-Service Optical Transport Network (MS-OTN) platform for enterprise all-optical networking 2.0 (ON2.0).

The new-generation terabit cross-connect chip can process OTN, Virtual Circuit (VC), and packet services of different
granularities and smoothly evolve to OTN+. With 7 nm technology, high integration, and low power consumption, access of services is supported at any rate, from 100 Mbit/s to 400 GE. Per-wavelength capacity can be adjusted between 100 Gbit/s to 800 Gbit/s as needed. AI-enabled Operations and Maintenance (O&M) achieves autonomous-driving networks to cope with the increase in network scale and O&M complexity.

Product Specification

Parameters	OptiXtrans E9612	OptiXtrans E9624
Dimensions (H x W x D)	347.2 x 442 x 291 mm	747.2 x 442 x 295 mm
Number of Service Slots	13	12/24
Cross-connect Type	N/A	ODUk/PKT/VC
Cross-connect Capability	N/A	1:1 mode: 4.8T/2.4T/1.92T
Cross-connect Capability	N/A		1:3 mode: 10T/2T/1.6T
Channel Spacing	100 GHz fixed grid for 48/60 wavelengths
		50 GHz fixed grid for 96/120 wavelengths
		37.5 GHz to 400 GHz flex grid
Rate per Channel (maximum)	100G/200G/400G/600G
Services	SDH/SONET, Ethernet, SAN, OTN, Video, PDH (E1 & TPS)
Wavelength Range	DWDM: 1524.50 nm to 1572.06 nm (C band, ITU-T G.694.1)
Power Supply	–48 V DC/–60 V DC
