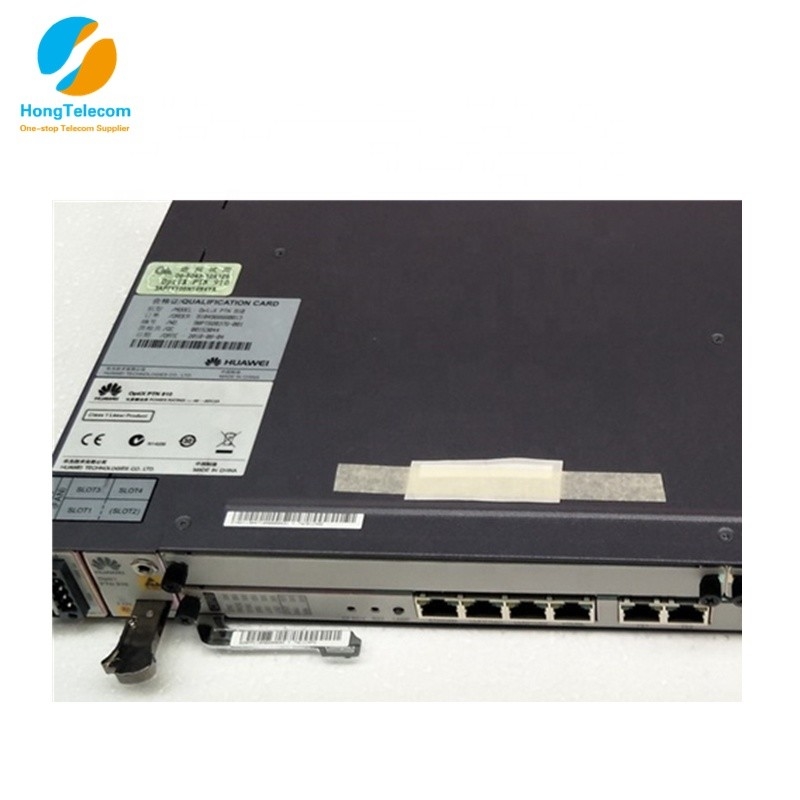

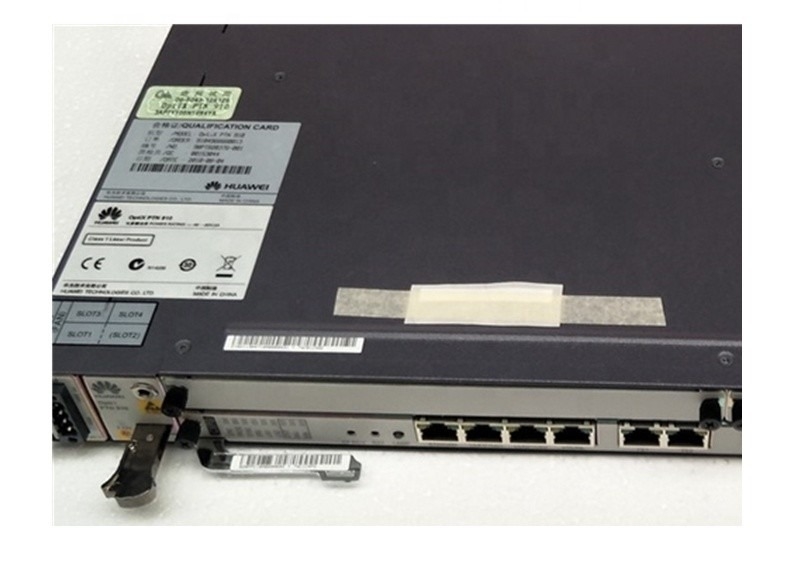

OptiX RTN 910 SLA1CSHCB System Board CSHC 03020SQD SLA1CSHC

Negotiable
MOQ
Negotiable
Price
OptiX RTN 910 SLA1CSHCB System Board CSHC 03020SQD SLA1CSHC
Features Gallery Product Description Request A Quote
Features
Specifications
Model: SLA1CSHC
IDU 910 Chassis: 1U
Microwave Directions: 1 Or 2
RF Configuration Mode 1: 1+0 Non-protection
RF Configuration Mode 2: 2+0 Non-protection
RF Configuration Mode 3: 1+1 Protection
RF Configuration Mode 4: XPIC Configuration
ODU Type: XMC-2
Frequency Band: 11/18/23 GHz
Channel Spacing: 30/40/50 MHz
Highlight:

OptiX RTN 910 System Board

,

SLA1CSHCB System Board

,

03020SQD Huawei Board
Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OptiX RTN 910
Payment & Shipping Terms
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Product Description
Product Overview



03020SQD SLA1CSHC OptiX RTN 910,SLA1CSHCB,16*E1(75ohm)/2*STM-1(SFP)/2*FE(RJ45)/2*GE(SFP),Hybrid System Control and Cross-connect Board,1*1





Device Attributes


BOM
Model
SFP Module Collection (STM-1&STM-4)
88030SYB
SLAS00V1R300
Basic Software Package,V100R003(Per Subrack)
88031HMW
SLAS00V1R501
Basic Software Package,V100R005(Per Subrack)
88031WTY
SLAS00V1R600
Basic Software Package,V100R006(Per Subrack)
88031LBX
SLASFUNP9101
RTN 910 Value-Added Function Package, up to V100R005
88031HLN
SLASSFAFEE01
RTN 910 Software Annual Fee (with Value-Added Function), up to V100R005
88030AVC
SLASUPDATE01
RTN 910,Software Release Entitlement(Per Subrack,R(N)->R(N+1))
88031HSY
SLDSASSIST01
TP-Assist Basic Function Fee for MW Access node (Per Subrack)
88031YXM
SLDSASSIST02
TP-Assist Enhanced Function Fee for MW Access node (Per Subrack)

Technical Specifications

The OptiX RTN 910 adopts a split structure. The system consists of the IDU 910 and the ODU. Each ODU is connected to the IDU through an IF cable.
IDU 910
The IDU 910 is the indoor unit for an OptiX RTN 910 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

IDU 910 Item
Description
Chassis height
1U
Pluggable
Supported
Number of microwave directions
1 or 2
RF configuration mode (Long Haul)
1+0 non-protection configuration
2+0 non-protection configuration
1+1 protection configuration
XPIC configuration
Service interface type
FE electrical interface
GE electrical interface
GE optical interface

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.

Item
High Power ODU
ODU type
XMC-2
Frequency band
11/18/23 GHz
Microwave modulation mode
QPSK/16QAM/32QAM/64QAM/128QAM/256QAM
Channel spacing
30/40/50 MHz
