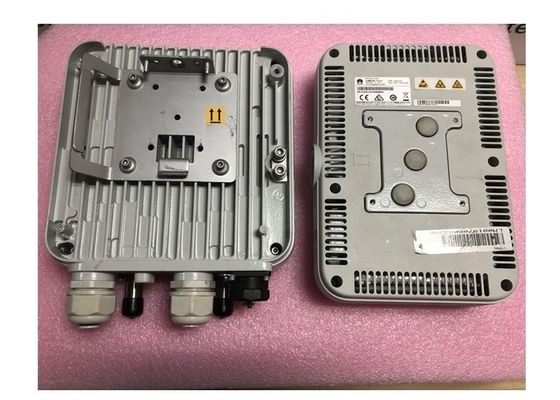

Microwave RTN 380A E-band eSFP kit 02230WWA SLEMSFPK01

SLEMSFPK01 multi-mode eSFP kit (for GE or 1.25G CPRI),0.55km
SLEMSFPK02 multi-mode eSFP kit for 2.5GE or 3G CPRI,0.3km
SLESSFPK04 Single-Mode eSFP kit for 2.5GE or 6G CPRI,2km
SLESSFPK05 Single-Mode eSFP kit for 2.5GE or 6G CPRI,10km
SLESSFPK06 Single-Mode eSFP kit for 10GE or 10G CPRI,1.4km
SLESSFPK07 Single-Mode eSFP kit for 10GE or 10G CPRI,10km
SLEMSFPK04 Multi-Mode eSFP kit for 10GE or 10G CPRI,0.1km


The RTN 380A can provide large-capacity backhaul microwave links or aggregation links on a mobile communications network or a private network.

As E-band full outdoor radio equipment, the RTN 380A has the following characteristics:

*  The RTN 380A operates at 71-76 GHz or 81-86 GHz frequency bands. It features large capacity, low inter-site interference, and rich frequency spectrum resources, as compared with radio equipment that operates at 6-42 GHz frequency bands. Therefore, RTN 380As can form a backhaul network for base stations densely deployed in a city and provide large-capacity backhaul links for aggregation sites. In addition, the RTN 380A can provide high-bandwidth microwave links for transmitting Ethernet services on a metro optical Ethernet in areas where optical fibers are difficult to lay out.

* As compact full outdoor radio equipment, the RTN 380A integrates all functions in a chassis and does not need an extra installation site. Therefore, it allows carriers to construct and operate networks at lower costs than traditional split radio equipment.

On a mobile communications network, RTN 380As are mainly used to:

* Support protection such as PLA and 1+1 HSB. Provide large-capacity backhaul microwave links for 3G/LTE base stations especially those that are densely deployed in urban areas.

* Provide large-capacity aggregation links for 3G/LTE base stations and implement multi-direction aggregation when working with OptiX RTN 900s.

* Work with the CSG to provide a microwave channel solution for transparent transmission on the IP RAN.

* Work with OptiX RTN 900 to implement the Super Dual Band solution through EPLA. This solution provides high-bandwidth, long-distance, and high-availability backhaul links. Super Dual Band Relay extends the E-band link transmission distance to three times the transmission distance of a single-hop E-band link.

Delivery

1. 3-7 Working days after received the payment.

2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )

Packing

1. Original HUAWEI Carton Package.

2. As customers' requirement.
