Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.
 |
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CE FCC RoHS |
| Model Number: | RTN380A |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export carton package |
| Delivery Time: | 7-15 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 Piece/Pieces per Week |
| Model: | SLEMSITE67 | RTN380A Dimensions (H X W X D): | 265 Mm X 265 Mm X 65 Mm |
|---|---|---|---|
| Microwave Type 1: | IP Microwave Over Native Ethernet | Microwave Type 2: | Microwave Carrying CPRI Services |
| Frequency Bands: | 71-76 GHz And 81-86 GHz | Channel Spacing: | 62.5 MHz, 125 MHz, 250 MHz, 500 MHz, And 750 MHz |
| RF Configuration Mode 1: | 1+0 Mode | RF Configuration Mode 2: | 2+0 Mode |
| RF Configuration Mode 3: | 1+1 HSB Mode | RF Configuration Mode 4: | Multi-directional Mode |
SLEMSITE65 RTN 380A High site(500Mbps capacity, 250MHz channel space, 1GE interface)
SLEMSITE67 RTN 380A High site(1000Mbps capacity, 250MHz channel space, 1GE interface)
SLEMSITE69 RTN 380A High site(2000Mbps capacity, 500MHz channel space, 1GE interface)
SLEMSITE71 RTN 380A High site(3000Mbps capacity, 750MHz channel space, 1GE interface)
SLEMSITE73 RTN 380A High site(4000Mbps capacity, 1000MHz channel space, 1GE interface)
SLEMSITE75 RTN 380A High site(5000Mbps capacity, 1000MHz channel space, 1GE interface)
SLEMSITE77 RTN 380A High site(6000Mbps capacity, 1000MHz channel space, 1GE interface)
SLEMSITE117 RTN 380A High site(1000Mbps capacity, 250MHz channel space, 1GE interface), wifi module
SLEMSITE119 RTN 380A High site(2000Mbps capacity, 500MHz channel space, 1GE interface), wifi module
SLEMSITE121 RTN 380A High site(3000Mbps capacity, 750MHz channel space, 1GE interface), wifi module
SLEMSITE123 RTN 380A High site(4000Mbps capacity, 1000MHz channel space, 1GE interface), wifi module
SLEMSITE125 RTN 380A High site(5000Mbps capacity, 1000MHz channel space, 1GE interface), wifi module
SLEMSITE127 RTN 380A High site(6000Mbps capacity, 1000MHz channel space, 1GE interface), wifi module

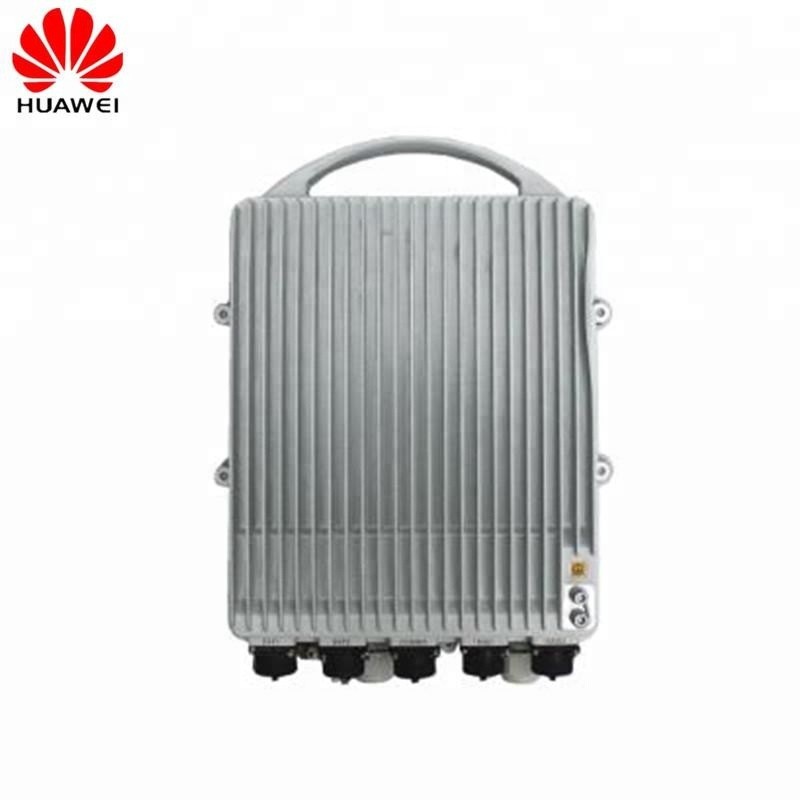

The RTN 380A can provide large-capacity backhaul microwave links or aggregation links on a mobile communications network or a private network.
As E-band full outdoor radio equipment, the RTN 380A has the following characteristics:
* The RTN 380A operates at 71-76 GHz or 81-86 GHz frequency bands. It features large capacity, low inter-site interference, and rich frequency spectrum resources, as compared with radio equipment that operates at 6-42 GHz frequency bands. Therefore, RTN 380As can form a backhaul network for base stations densely deployed in a city and provide large-capacity backhaul links for aggregation sites. In addition, the RTN 380A can provide high-bandwidth microwave links for transmitting Ethernet services on a metro optical Ethernet in areas where optical fibers are difficult to lay out.
* As compact full outdoor radio equipment, the RTN 380A integrates all functions in a chassis and does not need an extra installation site. Therefore, it allows carriers to construct and operate networks at lower costs than traditional split radio equipment.
On a mobile communications network, RTN 380As are mainly used to:
* Support protection such as PLA and 1+1 HSB. Provide large-capacity backhaul microwave links for 3G/LTE base stations especially those that are densely deployed in urban areas.
* Provide large-capacity aggregation links for 3G/LTE base stations and implement multi-direction aggregation when working with OptiX RTN 900s.
* Work with the CSG to provide a microwave channel solution for transparent transmission on the IP RAN.
* Work with OptiX RTN 900 to implement the Super Dual Band solution through EPLA. This solution provides high-bandwidth, long-distance, and high-availability backhaul links. Super Dual Band Relay extends the E-band link transmission distance to three times the transmission distance of a single-hop E-band link.
RTN 380A & RTN 380E specifications meet the high bandwidth requirements in E-Band microwave transmission. RTN 380A also has unique advantages in maintenance capabilities.
HUAWEI RTN310
HUAWEI RTN360
HUAWEI RTN380
HUAWEI RTN905
HUAWEI RTN910
HUAWEI RTN950A
HUAWEI RTN980
