Name: Microwave RTN360 Full-outdoor radio transmission RTN 360
Brand: Uonel Co.Limtied
SKU: RTN 360
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Model: RTN 360

Dimensions (H X W X D): 192.5 Mm X 192.5 Mm X 70 Mm

Weight: 2.5 Kg

Antenna: Built-in Panel Antenna

Operating Frequency Band: 59 GHz To 64 GHz

Maximum Air Capacity: ≥ 600 Mbit/s

Maximum Air-interface Service Throughput: ≥ 1.6 Gbit/s

Maximum Switching Capacity: 8 Gbit/s

Typical Transmission Distance: 300 M

RF Configuration Mode: 1+0 Configuration

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: RTN 360

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

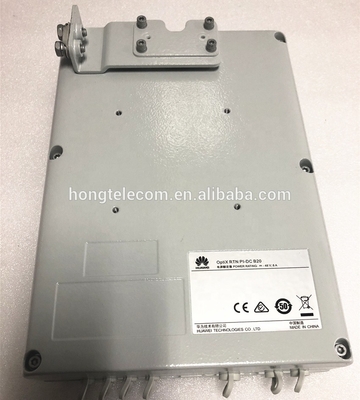

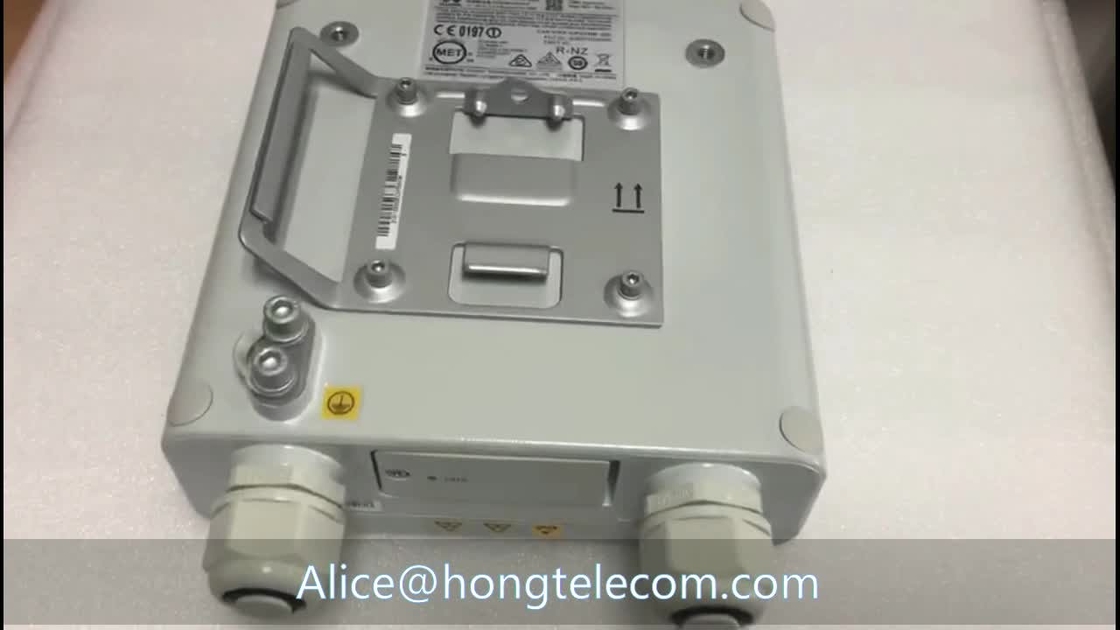

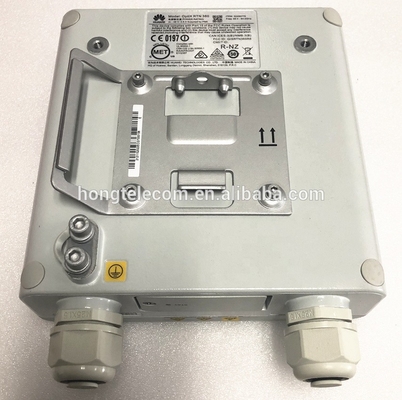

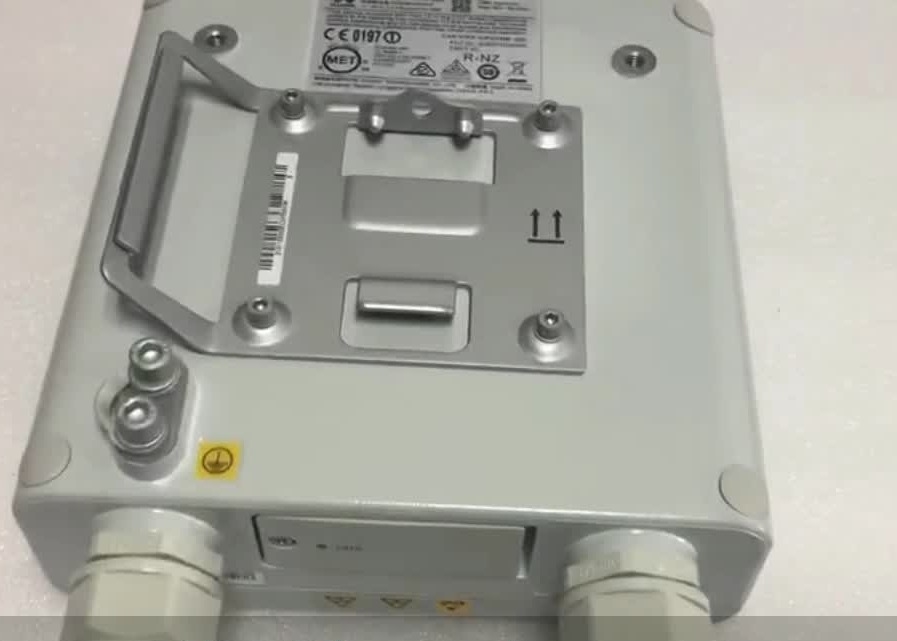

Microwave RTN360 Full-outdoor radio transmission RTN 360

Product Description

Microwave RTN360 Full-outdoor radio transmission RTN 360

RTN 360 can work with the small cell site gateway (SCSG) to provide a microwave channel solution for transparent transmission for small cells on the IP RAN.

Item	Specifications
Operating frequency band	59 GHz to 64 GHz
Duplex mode	TDD
Radio working mode (modulation scheme/channel spacing)	Modulation scheme: QPSK, 16QAM, 32QAM Channel spacing: 200 MHz
AM	Supported
Capacity	Maximum air capacity: ≥ 600 Mbit/s Maximum air-interface service throughput: ≥ 1.6 Gbit/s Maximum switching capacity: 8 Gbit/s
Typical transmission distance	300 m
Service port	Two GE electrical service ports
Two GE electrical service ports	1+0 configuration
Service type	Native Ethernet services: E-Line service and E-LAN service PW-carried Ethernet services: E-Line service, E-Aggr service, and E-LAN (VPLS) service (VPLS standing for virtual private LAN service)
QoS/HQoS	Supported
MPLS Tunnel	Supported
PWE3	Supported
Clock feature	Clock sources: microwave link clocks and synchronous Ethernet clocks IEEE 1588v2 time synchronization ITU-T G.8275.1 time synchronization
Power supply mode	Power over Ethernet, supplied by the AC power injector (PI), DC power injector (PI), and RTN 900 IDUs.
Dimensions (H x W x D)	192.5 mm x 192.5 mm x 70 mm
Weight	2.5 kg
Antenna	Built-in panel antenna

our business scope include Router/Switch/BRAS, GPON/EPON/FTTX, Optical TRANSMISSION(SDH/DWDM/PTN/Microwave), DSLAM/PSTN/MSAG/MSAN, Firewall/Security Gateway, Power Energy/UPS/indoor Outdoor Cabinet, Video Conference, WLAN etc., We also supply used and refurbished wireless and core network, including Huawei/Ericsson/ NSN/Alcatel/ZTE, GSM/UMTS/LTE, BBU, RRU, BTS.
