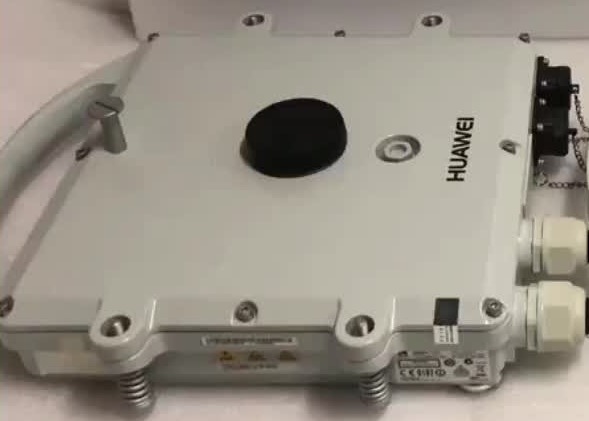

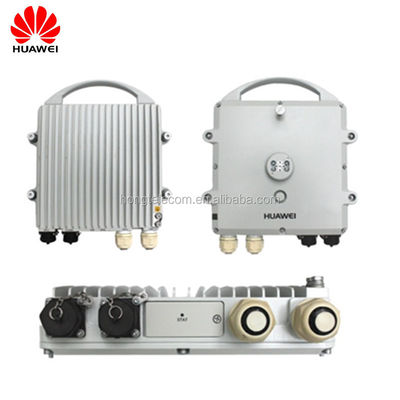

Microwave link odu rtn huawei RTN380

Microwave link odu rtn huawei RTN380

  • Microwave link odu rtn huawei RTN380
  • Microwave link odu rtn huawei RTN380
  • Microwave link odu rtn huawei RTN380
Microwave link odu rtn huawei RTN380
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: RTN380
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
Working Temperature: -35℃~+55℃ Relative Humidity: 5%~100%
DC Power: -38.4V ~ -57.6V

Contact Us
Microwave link odu rtn huawei RTN380 0

RTN300 series of new generation of outdoor IP microwave transmission system

Huawei RTN300 series, is a highly integrated full-outdoor microwave products. Including RTN310, RTN360, RTN380 three products. RTN300 series is the microwave equipment, all the features are integrated in an outdoor box, to achieve zero-site full outdoor installation;

The RTN310 is a full-band microwave in the conventional frequency range and requires the use of a conventional frequency band. The RTN360 is a V-band microwave, the RTN380 is an E-band microwave, and the E / V-band is a free band in most countries. Light-charged band. As a result, the RTN300 Series provides enterprise customers with a complete outdoor microwave transmission solution with low network costs and low operating costs.


Microwave link odu rtn huawei RTN380 2
Microwave link odu rtn huawei RTN380 4
Microwave link odu rtn huawei RTN380 6

HUAWEI RTN310

HUAWEI RTN360

HUAWEI RTN380

RTN310
RTN360
RTN380
Support frequency
13/15/18/23/38GHz
59-64GHz
71-86GHz
Channel spacing
7/14/28/56MHz
200MHz
62.5/125/250/500/750MHz
Modulation mode
QPSK Strong~2048QAM Light
160QAM
QPSK Strong~64 QAM
Throughput
2Gbps Max
400Mbps
4Gbps Max
Business interface
GE
GE
GE, CPRI interface
USB interface
Support
Support
Support
Working environment
Working temperature :  -35℃~+55℃
Relative humidity:   5%~100%
Power supply range
Support Ethernet power supply;
Support DC power : -38.4V ~ -57.6V
Weight
6kg
2.5kg
3.8kg
Features

1. Large bandwidth:

RTN310 support up to 2Gbps / carrier frequency large bandwidth, continuous expansion of the network worry;RTN360 support a single device 400Mbps transmission, close to zero-site deployment worry-free;RTN380 support a single device 4Gbps high-capacity transmission, to meet the backbone of large-capacity short-range return.

2. High reliability:

Support network-level, link-level, device-level multi-level protection; to meet the IP65 dustproof and waterproof 8KA mine grade requirements to ensure reliable operation in harsh environments in various fields.

3. Good luck:

Support engineers under the tower operation and maintenance, without climbing tower; support the deployment of USB configuration to enhance efficiency; support 360-degree automatic sweep, easy to select frequency.
