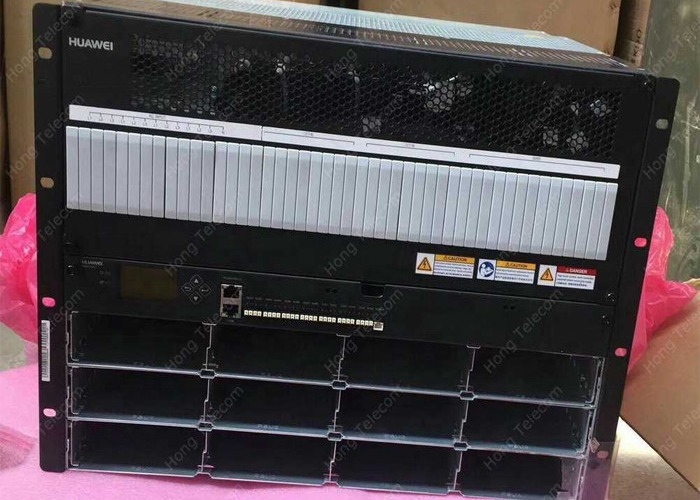

IP20 Huawei ETP48600-C8A1 Telecom Power Supply 48v DC

Negotiable
MOQ
Negotiable
Price
IP20 Huawei ETP48600-C8A1 Telecom Power Supply 48v DC
Features Gallery Product Description Request A Quote
Features
Specifications
Model: ETP48600-C8A1
Rectifier Efficiency: >96%
Type: Embedded Power System
Keywords: ETP48600-C8A1, Embedded Power Supply
Dimension(W*D*H): 482.6mm(W)*330mm(D)*219.5mm(5U, H)
Rated Power: 3000W(176~300VAC)
Protection Level: IP20
AC Input Voltage: 380VAC/220VAC
Weight: ≤20kg (without Rectifiers)
Highlight:

ETP48600-C8A1 Telecom Power Supply 48v

,

IP20 Telecom Power Supply 48v

,

Huawei ETP48600-C8A1
Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: ETP48600-C8A1
Payment & Shipping Terms
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Product Description
Embedded Type Telecom Power System 48V DC ETP48600-C8A1

Embedded Type Telecom Power System 48V DC ETP48600-C8A1

Device Features

* Wide range of AC input voltage from 85V to 300V;

* Wide operation temperature range of rectifier from -40ºC to 75ºC;


* Online-swappable rectifier provides easy installation and maintenance;


* Standard installation structure design, adapting to various scenarios;

* Compact design, saving space and installation cost;

* High rectifier efficiency over 96% helps to save energy;

* Excellent rectifier dormancy function helps to increase system efficiency;

* Intelligent battery management and protection helps to prolong battery lifespan;

* Support environment monitoring and remote management through dry contact, serial interface or Ethernet interface;



Technical Specifications

Item
Specification
Dimensions (H x W x D)
 219.5 mm x 482.6 mm x 330 mm
Weight (empty)
≤20kg(without rectifiers and batteries)
Installation mode
· Installed on 19-inch rack, or embedded in cabinet
Cooling mode
· Natural cooling
Rectifier Input voltage
· 85VAC~300VAC, rated value: 220VAC
Communication port
· RS232/485, FE
Application Scenarios
·  Wireless base station ;
·  Transmission network ;
·  Communication network of enterprise
