HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A

HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A

  • HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A
  • HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: RTN 905, VHLP3-7W-HW1A
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
RTN905 Diamension: 442mm X220mm X44mm Maximum Throughput: > 600Mbps
Working Temperature: IDU -5℃~+60℃ ; ODU -35℃~+55℃ Relative Humidity: IDU 5%~95% ,ODU 5%~100%
DC Power: -38.4V ~ -57.6V AC Power: 220V
IDU 905 1E Radio Directions: 1 IDU 905 2E Radio Directions: 2
IDU 905 2F Radio Directions: 2

Contact Us
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 0

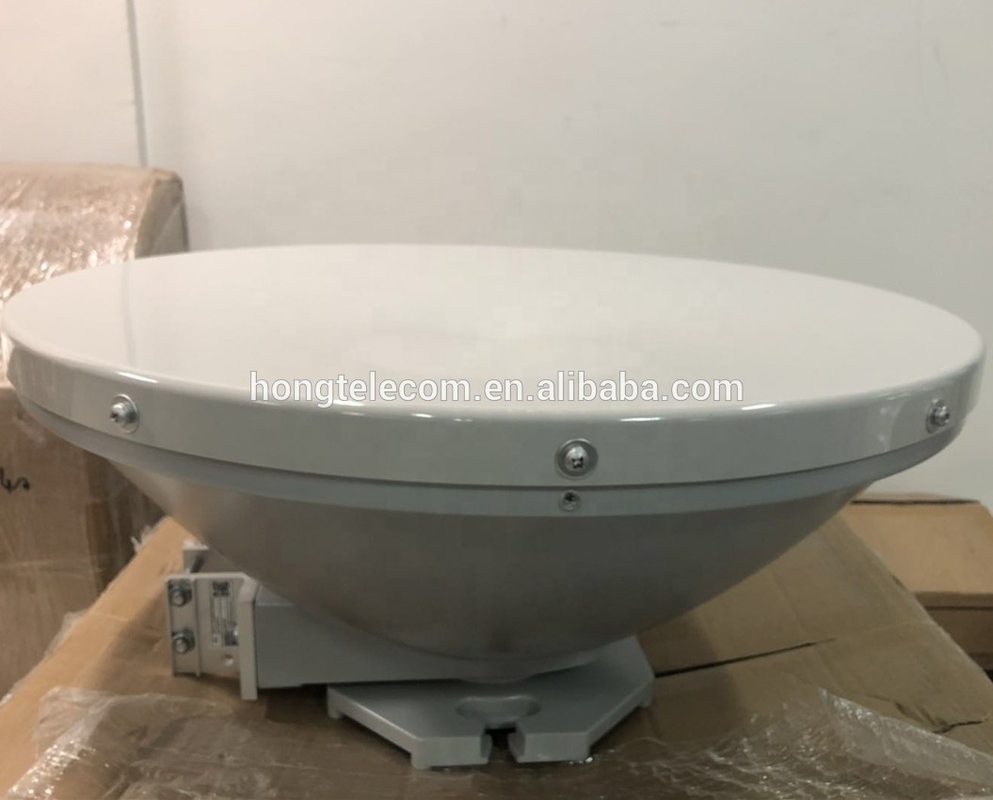

52430909 VHLP3-7W-HW1A Microwave Antenna,A07S10HAC,7/8G,1000mm,HP,single,Direct(XMC)/Separate(All RTN ODU) Mount,35.5dBi,2.6deg,30dB,With English doc


We provide the following Enhanced Combining and Distribution Unit for OptiX RTN 905 :


Microwave Accessory,Coupler,6G,UDR70,3dB XMC,With English doc
Microwave Accessory,Coupler,7&8G,UBR84,3dB XMC,With English doc
Microwave Accessory,Coupler,10/11G,UBR100,3dB XMC,With English doc
Microwave Accessory,Coupler,13G,UBR120,3dB XMC,With English doc
Microwave Accessory,Coupler,15G,UBR140,3dB XMC,With English doc

Microwave Accessory,Coupler,18G,UBR220,3dB XMC,With English doc
Microwave Accessory,Coupler,23G,UBR220,3dB XMC,With English doc
Microwave Accessory,Coupler,26G,UBR220,3dB XMC,With English doc
Microwave Accessory,Coupler,28G,UBR320,3dB XMC,With English doc
Microwave Accessory,Coupler,32G,UBR320,3dB XMC,With English doc

Microwave Accessory,Coupler,38G,UBR320,3dB XMC,With English doc
Microwave Accessory,Coupler,42G,UG383/U-R400,3dB XMC,With English doc
Microwave Accessory,Coupler,6G,UDR70,6dB XMC,With English doc
Microwave Accessory,Coupler,7&8G,UBR84,6dB XMC,With English doc
Microwave Accessory,Coupler,10/11G,UBR100,6dB XMC,With English doc

Microwave Accessory,Coupler,13G,UBR120,6dB XMC,With English doc
Microwave Accessory,Coupler,15G,UBR140,6dB XMC,With English doc
Microwave Accessory,Coupler,18G,UBR220,6dB XMC,With English doc
Microwave Accessory,Coupler,23G,UBR220,6dB XMC,With English doc
Microwave Accessory,Coupler,26G,UBR220,6dB XMC,With English doc

Microwave Accessory,Coupler,28G,UBR320,6dB XMC,With English doc
Microwave Accessory,Coupler,32G,UBR320,6dB XMC,With English doc
Microwave Accessory,Coupler,38G,UBR320,6dB XMC,With English doc
Microwave Accessory,Coupler,42G,UG383/U-R400,6dB XMC,With English doc


OptiX RTN 905

Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and hybrid networking. OptiX RTN 900 Series systems support voice transmission on 2G networks, voice and data services on 3G networks, and broadband data services on LTE networks.


The OptiX RTN 905 provides a generic platform for TDM/Hybrid/Packet/Routing microwave transmission, meeting the backhaul requirements of various mobile networks. The OptiX RTN 905 is access-layer microwave equipment. It can independently constitute a network or jointly constitute a network with the OptiX RTN 910/910A/950/950A/980.


The OptiX RTN 905 can provide a route microwave solution for LTE bearer networks. In this solution, the OptiX RTN 905 functions as a CSG and works with routers that function as ASGs and RSGs to provide end-to-end L3VPN services. The routers can be Huawei CX600s or other routers.

HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 2
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 4
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 6
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 8
Components

The OptiX RTN 905 adopts a split structure. The system consists of the IDU 905 and the ODU. Each ODU is connected to the IDU 905 through an IF cable.

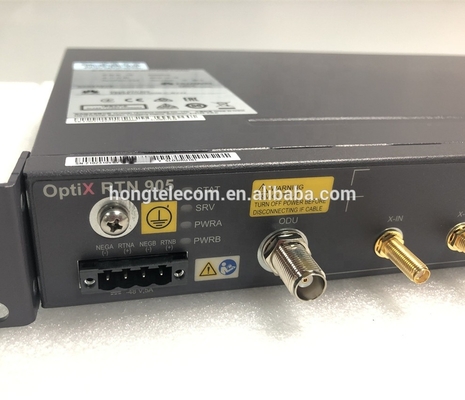

IDU 905
The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

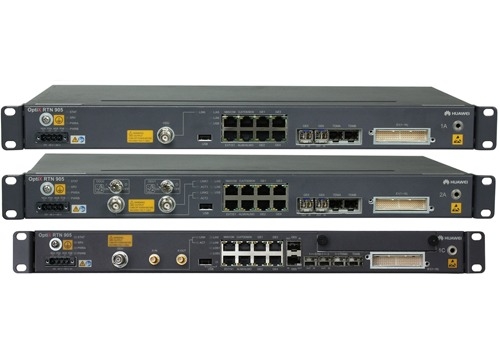

Features of the IDU 905

Type
IDU 905 1E
IDU 905 2E
IDU 905 2F
Chassis height
1U
Extended subcard
Supported
Service interface
4 x GE electronic interface
4 x GE/FE optical interface or GE electrical interface (SFP)b
2 x 2.5GE optical interface (SFP+/SFP)c
16 x E1 interface
1 x multifunction cascading interfacea, b
1 x E1 services cascading interfaceb
2 x STM-1 interface
2 x 10GE optical interface (SFP+)a
2 x 10GE/2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP)a
2 x 2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP)
4 x GE electrical interface
2 x STM-1 interface
16 x E1 interface
Radio type
Integrated IP radio (E1 + Ethernet)
Integrated IP radio (STM-1 + Ethernet)
SDH radio
Highest modulation
2048QAM
8192QAM
Number of radio directions
1
2
2
RF configuration mode
1+0
1+1 HSB/FD/SD (NE cascading)
XPIC (NE cascading)
2x(1+0)
2+0
1+1 HSB/FD/SD
Intra-board XPIC
2x(1+0)
2+0
1+1 HSB/FD/SD
Intra-board XPIC
2CA

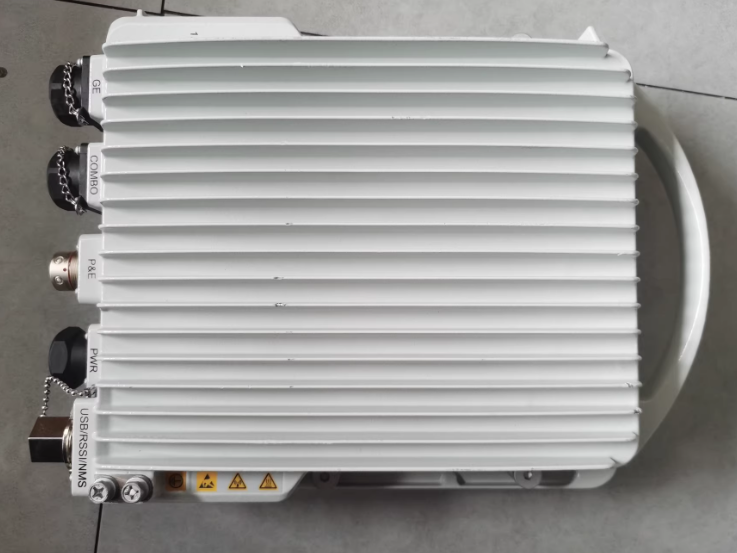

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.

The OptiX RTN 900 product series can use the RTN 600 ODU and RTN XMC ODU, covering the entire frequency band from 6 GHz to 42 GHz.

 RTN XMC ODUs that the OptiX RTN 905 supports

ODU type
Frequency band
Highest-order Modulation
Channel spacing
XMC-2
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz
2048QAM (13/15/18/23/38 GHz, 7/8 GHz XMC-2E)
1024QAM (6/10/10.5/11/26/28/32/42 GHz)
256QAM (7/8 GHz Normal)
3.5/7/14/28/40/50/56 MHz
XMC-2H
6/7/8/11 GHz
2048QAM
7/14/28/40/56 MHz
XMC-3
7/8/11/13/15/18/23/26/28/32/38 GHz
2048QAM
7/14/28/40/56 MHz (7/8/11/13/15/18/23/26/28/32/38 GHz)
XMC-3
7/8/13/18/15/23 GHz
2048QAM
7/14/28/40/56 MHz
XMC-3H
15/18/23/28/38 GHz
8192QAM (28/40/56 MHz)
4096QAM (112 MHz)
2048QAM (14 MHz)
1024QAM (7 MHz)
7/14/28/40/56/112 MHz
XMC-5D
13/15/18 GHz
4096QAM (28/40/56/112 MHz)
2048QAM (7/14 MHz)
7/14/28/40/56/112 MHz

RTN 600 ODUs that the OptiX RTN 905 supports

Item
High-Power ODU
Standard Power ODU
ODU type
HP, HPA
SP, SPA
Frequency band
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38 GHz (HP)
6/7/8/11/13/15/18/23 GHz (HPA)
7/8/11/13/15/18/23/26/38 GHz (SP ODU)
6/7/8/11/13/15/18/23 GHz (SPA ODU)
Highest-order Modulation
256QAM
256QAM
Channel spacing
7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz)
7/14/28 MHz (10.5 GHz)
3.5/7/14/28 MHz
Related Products

OptiX RTN 900 Product Family

The OptiX RTN 900 series provide various service interfaces and can be installed easily and configured flexibly. The OptiX RTN 900 series provide a solution that can integrate TDM microwave, Hybrid microwave, and Packet microwave technologies according to the networking scheme for the sites, achieving smooth upgrade from TDM microwave to Hybrid microwave, and from Hybrid microwave to Packet microwave. This solution meets the transmission requirements of 2G, 3G, and LTE services while also allowing for future network evolution and convergence.

There are some types of OptiX RTN 900 Packet microwave products: OptiX RTN 910A, OptiX RTN 905, OptiX RTN 905 s, OptiX RTN 910, OptiX RTN 950, OptiX RTN 950A, and OptiX RTN 980. Users can choose the product best suited for their site.

HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 10
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 12

HUAWEI RTN905

HUAWEI RTN910

HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 14
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 16

HUAWEI RTN950A

HUAWEI RTN980
RTN905
RTN910
RTN950A
RTN980
Support frequency
6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz
Channel spacing
3.5/7/14/28/40/50/56MHz
Maximum RF direction
1U/2
2U/6
2U/6
5U/14
Maximum throughput
> 600Mbps
Packet switching capability
8Gbps
10Gbps
10Gbps
22Gbps
Interface Type
E1/STM-1/FE/GE
E1/STM-1/FE/GE
E1/STM-1/FE/GE
E1/STM-1/STM-4 /FE/GE
IEEE1588v2
SUPPORT
Working environment
Working temperature:   IDU -5℃~+60℃ ; ODU -35℃~+55℃

Relative humidity:   IDU 5%~95% ,ODU 5%~100%
Power supply range
DC Power -38.4V ~ -57.6V

AC Power 220V
IDU Weight
2.7kg
5.4kg
5.4kg
15.4kg
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 18
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 20
HUAWEI RTN 905 RTN905 Microwave Antenna A07S10HAC 52430909 VHLP3-7W-HW1A 22

HUAWEI RTN310

HUAWEI RTN360

HUAWEI RTN380
