Power Cable,10m,2.5mm^2,TB4PIN+4*T2.5^2BL,14UL3386BL-I+14UL3386B-I,LSZH
Power Cable,10m,2.5mm^2,TB4PIN+4*T2.5^2BL,14UL3386BL-I+14UL3386R-I,for Australia only,LSZH
Power Cable,10m,2.5mm^2,TB4PIN+4*T2.5^2BL,14UL3386BL-I+14UL3386GY-I,For UK Use Only,LSZH
Power Cable,600V,UL3386,14AWG,Blue,28.5A,UL (Unit:meter)
Power Cable,600V,UL3386,14AWG,Black,28.5A,UL (Unit:meter)
Power Cable,600V,UL3386,14AWG,Red,28.5A,UL (Unit:meter)
Power Cable,600V,UL3386,14AWG,Gray,28.5A,UL (Unit:meter)
External Cable Set,Onsite Cable,Kit of 16mm^2 Power Cable and Terminal(LSZH)
Power Cable,450V/750V,H07Z-K UL3386,16mm^2,Blue,107A,LSZH Cable,VDE,UL (Unit:meter)
Power Cable,450V/750V,H07Z-K UL3386,16mm^2,Black,107A,LSZH Cable,VDE,UL (Unit:meter)
Power Cable,450V/750V,H07Z-K UL3386,16mm^2,Yellow/Green,107A,LSZH Cable,VDE,UL (Unit:meter)
Power Cable,450V/750V,H07Z-K UL3386,16mm^2,Red,107A,LSZH Cable,VDE,UL (Unit:meter)
External Cable Set 227IEC02(RV),25mm^2(Blue,Black,Red,Yellow/Green)
Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Blue,112A,CCC,CE (Unit:meter)
Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Black,112A,CCC,CE (Unit:meter)
Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Yellow/Green,112A,CCC,CE (Unit:meter)
Power Cable,450V/750V,60227 IEC 02(RV),25mm^2,Red,112A,CCC,CE (Unit:meter)
OptiX RTN 905
Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and hybrid networking. OptiX RTN 900 Series systems support voice transmission on 2G networks, voice and data services on 3G networks, and broadband data services on LTE networks.
The OptiX RTN 905 provides a generic platform for TDM/Hybrid/Packet/Routing microwave transmission, meeting the backhaul requirements of various mobile networks. The OptiX RTN 905 is access-layer microwave equipment. It can independently constitute a network or jointly constitute a network with the OptiX RTN 910/910A/950/950A/980.
The OptiX RTN 905 can provide a route microwave solution for LTE bearer networks. In this solution, the OptiX RTN 905 functions as a CSG and works with routers that function as ASGs and RSGs to provide end-to-end L3VPN services. The routers can be Huawei CX600s or other routers.
Components

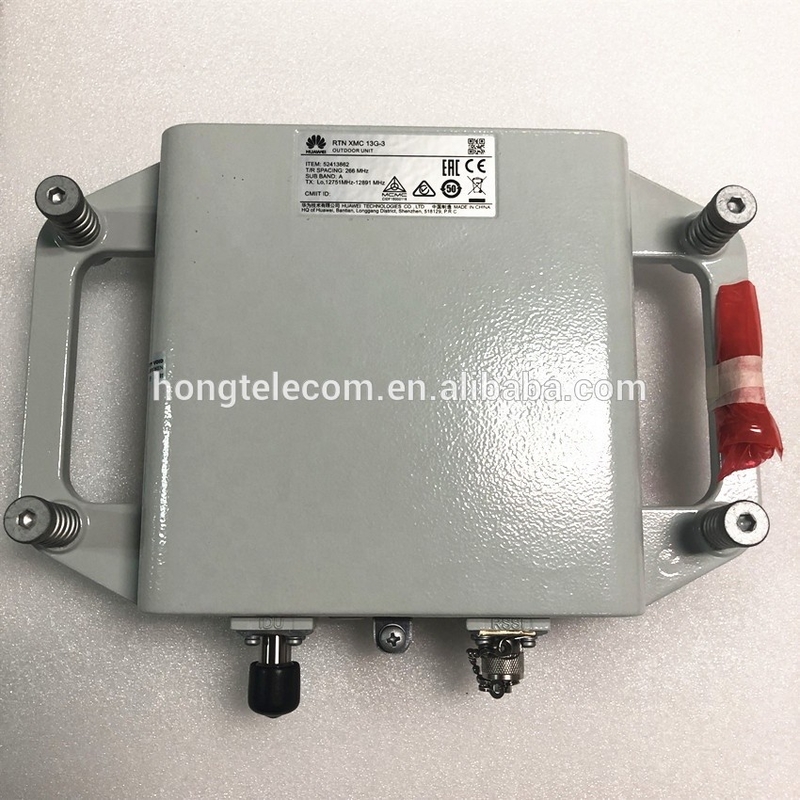

The OptiX RTN 905 adopts a split structure. The system consists of the IDU 905 and the ODU. Each ODU is connected to the IDU 905 through an IF cable.

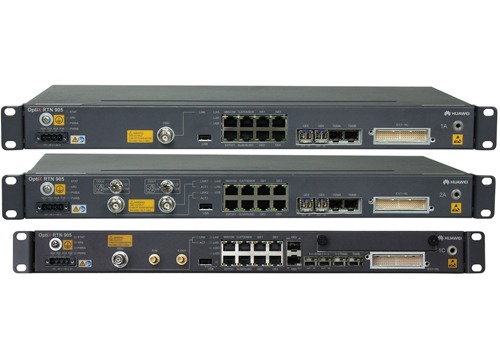

IDU 905

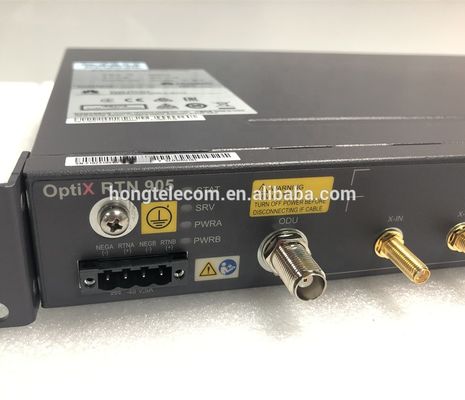

The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.
Features of the IDU 905
Type
IDU 905 1E
IDU 905 2E
IDU 905 2F
Chassis height
1U
Extended subcard
Supported
Service interface
4 x GE electronic interface
4 x GE/FE optical interface or GE electrical interface (SFP)b
2 x 2.5GE optical interface (SFP+/SFP)c
16 x E1 interface
1 x multifunction cascading interfacea, b
1 x E1 services cascading interfaceb
2 x STM-1 interface
2 x 10GE optical interface (SFP+)a
2 x 10GE/2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP)a
2 x 2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP)
4 x GE electrical interface
2 x STM-1 interface
16 x E1 interface
Radio type
Integrated IP radio (E1 + Ethernet)
Integrated IP radio (STM-1 + Ethernet)
SDH radio
The OptiX RTN 900 series provide various service interfaces and can be installed easily and configured flexibly. The OptiX RTN 900 series provide a solution that can integrate TDM microwave, Hybrid microwave, and Packet microwave technologies according to the networking scheme for the sites, achieving smooth upgrade from TDM microwave to Hybrid microwave, and from Hybrid microwave to Packet microwave. This solution meets the transmission requirements of 2G, 3G, and LTE services while also allowing for future network evolution and convergence.
There are some types of OptiX RTN 900 Packet microwave products: OptiX RTN 910A, OptiX RTN 905, OptiX RTN 905 s, OptiX RTN 910, OptiX RTN 950, OptiX RTN 950A, and OptiX RTN 980. Users can choose the product best suited for their site.
