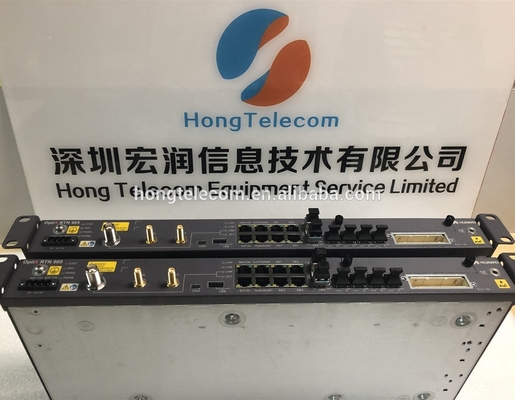

HUAWEI RTN905 Microwave system RTN 905 IDU 03031TUX ANPM000GPS01

Name: HUAWEI RTN905 Microwave system RTN 905 IDU 03031TUX ANPM000GPS01
Brand: Huawei
SKU: RTN 905, ANPM000GPS01
Availability: InStock
ISBN: 13956454

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	RTN 905, ANPM000GPS01

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

RTN905 Diamension:	442mm X220mm X44mm	Maximum Throughput:	> 600Mbps
Working Temperature:	IDU -5℃~+60℃ ; ODU -35℃~+55℃	Relative Humidity:	IDU 5%~95% ,ODU 5%~100%
DC Power:	-38.4V ~ -57.6V	AC Power:	220V
IDU 905 1E Radio Directions:	1	IDU 905 2E Radio Directions:	2
IDU 905 2F Radio Directions:	2

03031TUX ANPM000GPS01 AE 905S-Basic Configuration(GPS Timing SFP Module,PTP master,SyncE,1.25Gb/s,SMA Coaxial Connector)

SFP Module Collection for OptiX RTN 905 :

SFP-FE-SX-MM1310 Optical Transceiver,SFP,1310nm,STM1,-19~-14dBm,-30dBm,LC,MM,2km
eSFP-FE-LX-SM1310 Optical Transceiver,eSFP,1310nm,STM1,-15~-8dBm,-28dBm,LC,SM,15km
eSFP-FE-LH40-SM1310 Optical Transceiver,eSFP,1310nm,STM1,-5~0dBm,-37dBm,LC,SM,40km
eSFP-FE-LH80-SM1550 Optical Transceiver,eSFP,1550nm,STM1,-5~0dBm,-37dBm,LC,SM,80km

eSFP-850nm-1000Base-Sx/FC200 MM Optical Transceiver,eSFP,850nm,2.125Gb/s(Multi rate) ,-9.5~-2.5dBm,-17dBm,LC,MM,0.5km
eSFP-1310nm-1000Base-Lx SM Optical transceiver,eSFP,1310nm,1.25Gb/s,-9~-3dBm,-20dBm,LC,Single Mode,10km
eSFP-1310nm-1000Base-Vx Optical Transceiver,eSFP,1310nm,1.25Gb/s,-5~0dBm,-23dBm,LC,SM,40km
eSFP-1550nm-1000Base-Zx/FC100 Optical Transceiver,eSFP,1550nm,1.25Gb/s,-2~5dBm,-23dBm,LC,SM,80km
SFP-1000BaseT 1000BASE-T (RJ45) SFP Electrical Module,Auto Negotiate,100m

eSFP(S)-850nm-FC400 MM Optical Transceiver,eSFP,850nm,4.25G multi-rate,-9dBm~-1.5dBm,-15dBm,LC,MM,0.3km
OSV002N01 Optical Transceiver,SFP+,1310nm,6.144G,-8.4dBm~+0.5dBm,-13.8dBm,LC,SM,2km
OSV010N01 Optical Transceiver,SFP+,1310nm,6.144G,-8.4dBm-0.5dBm,-13.8dBm,LC,SM,10km

STM1E-SFP02 Electrical Active Module-Copper Transceiver,SFP,STM-1e
SFP-FE-SX-MM1310 Optical Transceiver,SFP,1310nm,STM1,-19~-14dBm,-30dBm,LC,MM,2km
eSFP-FE-LX-SM1310 Optical Transceiver,eSFP,1310nm,STM1,-15~-8dBm,-28dBm,LC,SM,15km
eSFP-FE-LH40-SM1310 Optical Transceiver,eSFP,1310nm,STM1,-5~0dBm,-37dBm,LC,SM,40km
eSFP-FE-LH80-SM1550 Optical Transceiver,eSFP,1550nm,STM1,-5~0dBm,-37dBm,LC,SM,80km

OptiX RTN 905

Flexible radio transmission equipment providing high-availability microwave links for TDM, IP-based, and hybrid networking. OptiX RTN 900 Series systems support voice transmission on 2G networks, voice and data services on 3G networks, and broadband data services on LTE networks.

The OptiX RTN 905 provides a generic platform for TDM/Hybrid/Packet/Routing microwave transmission, meeting the backhaul requirements of various mobile networks. The OptiX RTN 905 is access-layer microwave equipment. It can independently constitute a network or jointly constitute a network with the OptiX RTN 910/910A/950/950A/980.

The OptiX RTN 905 can provide a route microwave solution for LTE bearer networks. In this solution, the OptiX RTN 905 functions as a CSG and works with routers that function as ASGs and RSGs to provide end-to-end L3VPN services. The routers can be Huawei CX600s or other routers.

Components

The OptiX RTN 905 adopts a split structure. The system consists of the IDU 905 and the ODU. Each ODU is connected to the IDU 905 through an IF cable.

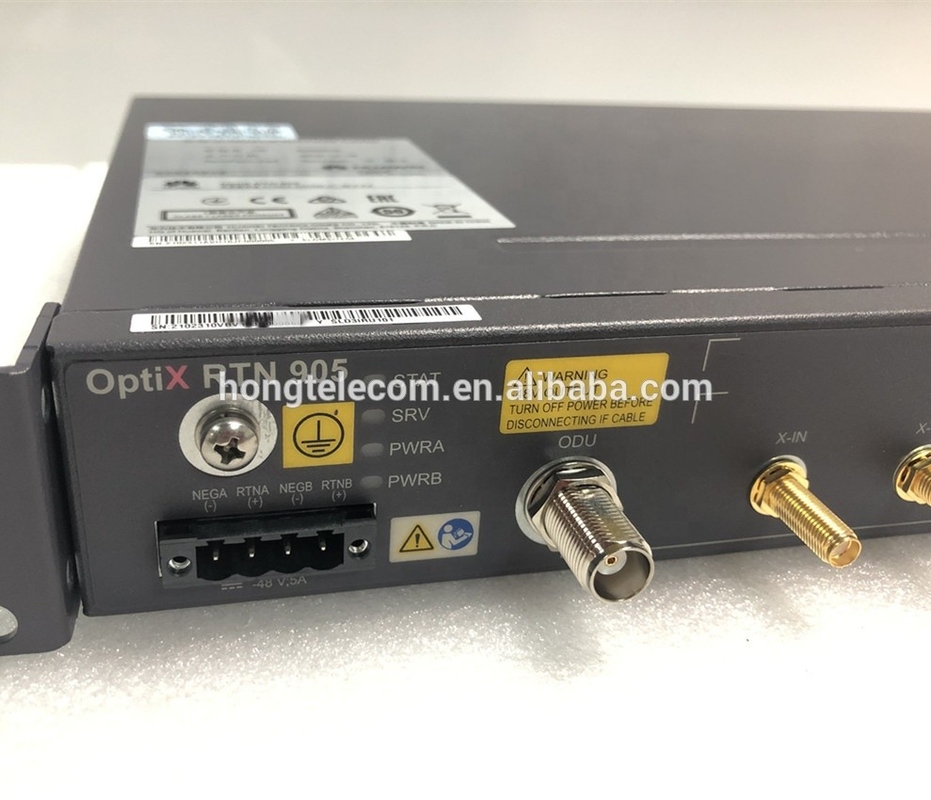

IDU 905
The IDU 905 is the indoor unit for an OptiX RTN 905 system. It receives and multiplexes services, performs service processing and IF processing, and provides the system control and communications function.

Features of the IDU 905

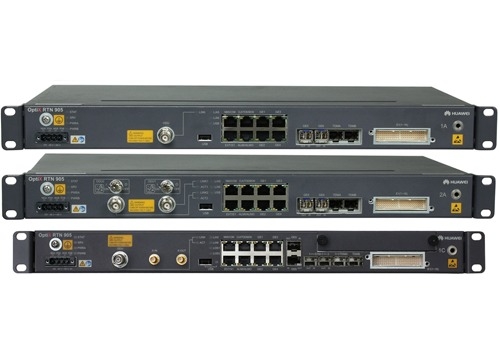

Type	IDU 905 1E	IDU 905 2E	IDU 905 2F
Chassis height	1U
Extended subcard	Supported
Service interface	4 x GE electronic interface 4 x GE/FE optical interface or GE electrical interface (SFP)b 2 x 2.5GE optical interface (SFP+/SFP)c 16 x E1 interface 1 x multifunction cascading interfacea, b 1 x E1 services cascading interfaceb 2 x STM-1 interface		2 x 10GE optical interface (SFP+)a 2 x 10GE/2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP)a 2 x 2.5GE/GE/FE optical interface or GE electrical interface (SFP+/SFP) 4 x GE electrical interface 2 x STM-1 interface 16 x E1 interface
Radio type	Integrated IP radio (E1 + Ethernet) Integrated IP radio (STM-1 + Ethernet) SDH radio
Highest modulation	2048QAM		8192QAM
Number of radio directions	1	2	2
RF configuration mode	1+0 1+1 HSB/FD/SD (NE cascading) XPIC (NE cascading)	2x(1+0) 2+0 1+1 HSB/FD/SD Intra-board XPIC	2x(1+0) 2+0 1+1 HSB/FD/SD Intra-board XPIC 2CA

ODU
The ODU is the outdoor unit for the OptiX RTN 900. It converts frequencies and amplifies signals.

The OptiX RTN 900 product series can use the RTN 600 ODU and RTN XMC ODU, covering the entire frequency band from 6 GHz to 42 GHz.

RTN XMC ODUs that the OptiX RTN 905 supports

ODU type	Frequency band	Highest-order Modulation	Channel spacing
XMC-2	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz	2048QAM (13/15/18/23/38 GHz, 7/8 GHz XMC-2E) 1024QAM (6/10/10.5/11/26/28/32/42 GHz) 256QAM (7/8 GHz Normal)	3.5/7/14/28/40/50/56 MHz
XMC-2H	6/7/8/11 GHz	2048QAM	7/14/28/40/56 MHz
XMC-3	7/8/11/13/15/18/23/26/28/32/38 GHz	2048QAM	7/14/28/40/56 MHz (7/8/11/13/15/18/23/26/28/32/38 GHz)
XMC-3	7/8/13/18/15/23 GHz	2048QAM	7/14/28/40/56 MHz
XMC-3H	15/18/23/28/38 GHz	8192QAM (28/40/56 MHz) 4096QAM (112 MHz) 2048QAM (14 MHz) 1024QAM (7 MHz)	7/14/28/40/56/112 MHz
XMC-5D	13/15/18 GHz	4096QAM (28/40/56/112 MHz) 2048QAM (7/14 MHz)	7/14/28/40/56/112 MHz

RTN 600 ODUs that the OptiX RTN 905 supports

Item	High-Power ODU	Standard Power ODU
ODU type	HP, HPA	SP, SPA
Frequency band	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38 GHz (HP) 6/7/8/11/13/15/18/23 GHz (HPA)	7/8/11/13/15/18/23/26/38 GHz (SP ODU) 6/7/8/11/13/15/18/23 GHz (SPA ODU)
Highest-order Modulation	256QAM	256QAM
Channel spacing	7/14/28/40/56 MHz (6/7/8/10/11/13/15/18/23/26/28/32/38 GHz) 7/14/28 MHz (10.5 GHz)	3.5/7/14/28 MHz

Related Products

OptiX RTN 900 Product Family

The OptiX RTN 900 series provide various service interfaces and can be installed easily and configured flexibly. The OptiX RTN 900 series provide a solution that can integrate TDM microwave, Hybrid microwave, and Packet microwave technologies according to the networking scheme for the sites, achieving smooth upgrade from TDM microwave to Hybrid microwave, and from Hybrid microwave to Packet microwave. This solution meets the transmission requirements of 2G, 3G, and LTE services while also allowing for future network evolution and convergence.

There are some types of OptiX RTN 900 Packet microwave products: OptiX RTN 910A, OptiX RTN 905, OptiX RTN 905 s, OptiX RTN 910, OptiX RTN 950, OptiX RTN 950A, and OptiX RTN 980. Users can choose the product best suited for their site.

HUAWEI RTN905

HUAWEI RTN910

HUAWEI RTN950A

HUAWEI RTN980

	RTN905	RTN910	RTN950A	RTN980
Support frequency	6/7/8/10/10.5/11/13/15/18/23/26/28/32/38/42 GHz
Channel spacing	3.5/7/14/28/40/50/56MHz
Maximum RF direction	1U/2	2U/6	2U/6	5U/14
Maximum throughput	> 600Mbps
Packet switching capability	8Gbps	10Gbps	10Gbps	22Gbps
Interface Type	E1/STM-1/FE/GE	E1/STM-1/FE/GE	E1/STM-1/FE/GE	E1/STM-1/STM-4 /FE/GE
IEEE1588v2	SUPPORT
Working environment	Working temperature: IDU -5℃~+60℃ ; ODU -35℃~+55℃ Relative humidity: IDU 5%~95% ,ODU 5%~100%
Power supply range	DC Power -38.4V ~ -57.6V AC Power 220V
IDU Weight	2.7kg	5.4kg	5.4kg	15.4kg

HUAWEI RTN310

HUAWEI RTN360

HUAWEI RTN380
