Huawei RTN605 MINI PDH/IP radio transmission system HUAWEI OptiX RTN 605

Name: Huawei RTN605 MINI PDH/IP radio transmission system HUAWEI OptiX RTN 605
Brand: Huawei
SKU: RTN 605
Availability: InStock
ISBN: 13956404

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	RTN 605

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

OptiX RTN 605 Chassis:	1U	Pluggable:	Not Supported
Microwave Directions:	1	RF Configuration Mode 1:	1+0 Non-protection (IDU 605 1D/1E)
RF Configuration Mode 2:	1+1 Protection (IDU 605 2D/2E)

Huawei RTN605 MINI PDH/IP radio transmission system HUAWEI OptiX RTN 605

The OptiX RTN 605 is a set of Mini radio equipment. It supports one microwave direction, and provides radio tail access solution

The OptiX RTN 605 is of a split structure, consisting of the IDU 605 and the ODU. Each ODU is connected to the IDU 605 through an IF cable.

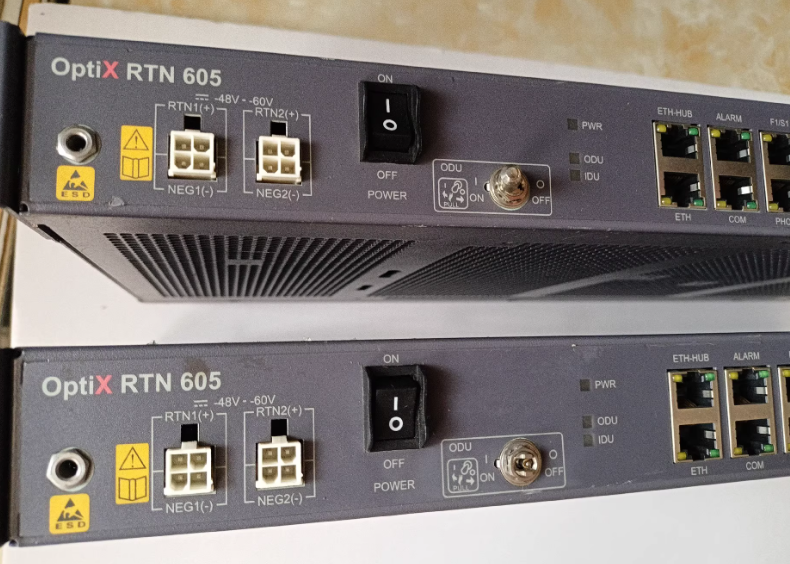

IDU 605
The IDU 605 is the indoor unit of the OptiX RTN 605. It accesses services, performs multiplexing/demultiplexing and IF processing of the services, and provides system control and communication function.

IDU 605 Item	IDU 605 1D/2D	IDU 605 1E/2E
Chassis height	1U	1U
Pluggable	Not supported	Not supported
Service interfaces	E1	E1, FE, GE
Ethernet processing capability	Not supported	Supports the VLAN and QinQ. Supports Layer 2 switching, supports EPLAN and EVPLAN. Supports EVPL. Supports QoS (including CAR and CoS) functions, traffic classification based on port, four priority queues, and SP or WRR queue scheduling Supports Ethernet OAM based on IEEE 802.1 ag and IEEE 802.3 ah Supports the LAG. Supports the Synchronous Ethernet.
Radio type	Mini PDH radio	Mini IP radio
Number of microwave directions	1
RF configuration mode	1+0 non-protection (IDU 605 1D/1E) 1+1 protection (IDU 605 2D/2E)

Outdoor Unit ODU

The ODU is the outdoor unit of the OptiX RTN 605. It performs frequency conversion and amplification of signals.

The OptiX RTN 605 provide a complete ODU solution. OptiX RTN 605 supports the RTN 600 ODU. Generally, the OptiX RTN 605 is configured with the low capacity for PDH ODU. If required in certain special scenarios, the OptiX RTN 605 can also be configured with the standard power ODU.

RTN 600 ODUs supported by the OptiX RTN 605

RTN 605 Item	Low Capacity for PDH ODU	Standard Power ODU
ODU type	LP and LPA	SP and SPA
Frequency band	7/8/11/13/15/18/23 GHz (LP ODU) 7/8/11/13/15/18/23/26/32/38 GHz (LPA ODU)	7/8/11/13/15/18/23/26/38 GHz (SP ODU) 6/7/8/11/13/15/18/23 GHz (SPA ODU)
Frequency band	QPSK/16QAM	QPSK/16QAM/32QAM/64QAM/128QAM/256QAM (SP ODU) QPSK/16QAM/32QAM/64QAM/128QAM (SPA ODU)
Channel spacing	3.5/7/14/28 MHz	3.5/7/14/28 MHz
