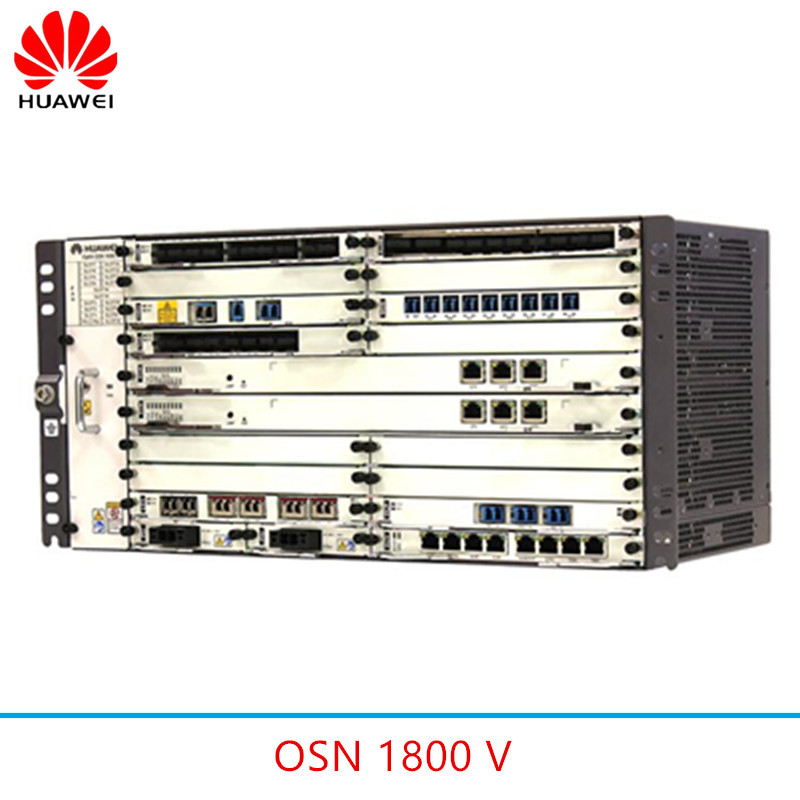

Name: Huawei OTN DWDM OSN1800 equipment Huawei OSN 1800 V
Brand: Uonel Co.Limtied
SKU: OSN 1800 V
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Type: Transmission

OSN1800 V Dimension: 221(H)*442(W)*224(D)mm

Max CWDM: 8 Wave

Max DWDM: 40 Wave

AC Power: 110~220V

DC Power: -48/-60V( Support 1+1)

Basic Infomation

Place of Origin: China

Brand Name: Huawei

Certification: CE FCC RoHS

Model Number: OSN 1800 V

Payment & Shipping Terms

Packaging Details: Export carton package

Delivery Time: 7-15 days

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 200 Piece/Pieces per Week

Gallery

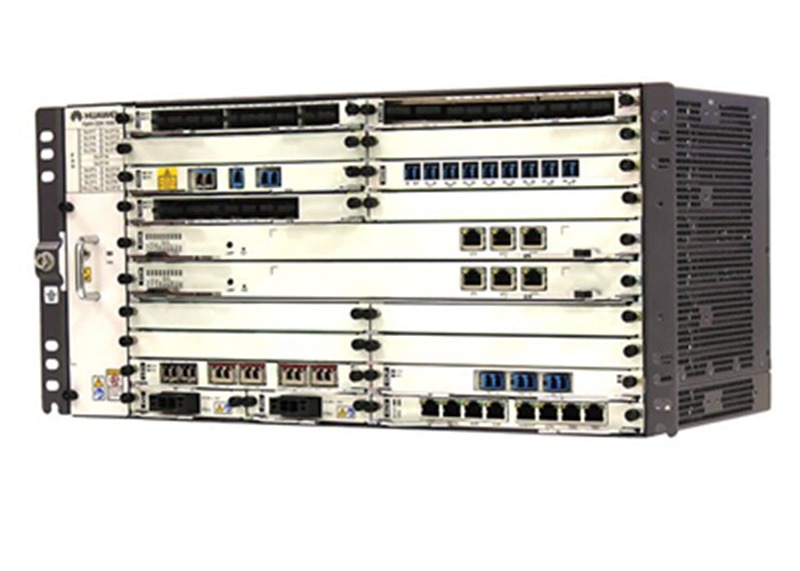

Huawei OTN DWDM OSN1800 equipment Huawei OSN 1800 V

Product Description

OptiX OSN 1800 V is a new generation of packet enhanced multi service optical transport platform, 5U high integration to fill the needs of the metropolitan device configuration.

Support OTN/PKT unified switching function, Ethernet, TDM, line 2M~10G full service access, and integrated MPLS-TP function, solve the metropolitan area network following fiber resources shortage, as enterprise network, campus network, data center network provides a low cost and high efficiency multi service broadband access solutions.

	OSN 1800 V
Device Size	221(H)442(W)224(D)mm

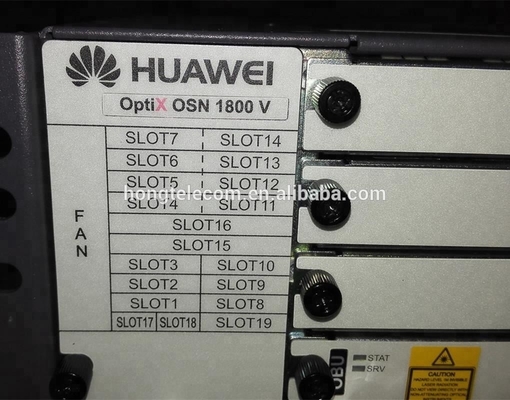

Business Slot	AD Slot: 12 ; DC Slot: 14
Capacity	OTN: 800G ODUK( K=0,1,2,2e,flex )
Max Wave	CWDM: 8 Wave ; DWDM: 40 Wave
Single channel maximum rate	100 Gbits/s (OTU4)
Install mode	19''/23'' Cabinet , ETSI 300mm/600mm cabinet
Power supply mode	AC: 110-220V OR DC: -48/-60V (Support 1+1 backup power input )

Features

Efficient, flexible and reliable multi service optical transport platform

1. Bandwidth worry: system optical layer supports dense wave 40*100G=4T capacity. Unified access matrix, PKT/OTN unified access, unified switching, bandwidth utilization;

2. flexible deployment: 5U support 19/23 'high size cabinet, while supporting AC/DC power supply, support pre installation, pre disc fiber, pre configured and remote automatic adjustment function, reduce the difficulty and cost of project delivery;

3. High reliability: provides a variety of device level and network level protection, full protection business.

Packing & Delivery

Delivery

1. 3-7 Working days after receive the payment.

2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )

Packing

1. Original HUAWEI Carton Package.

2. As customers' requirement.
