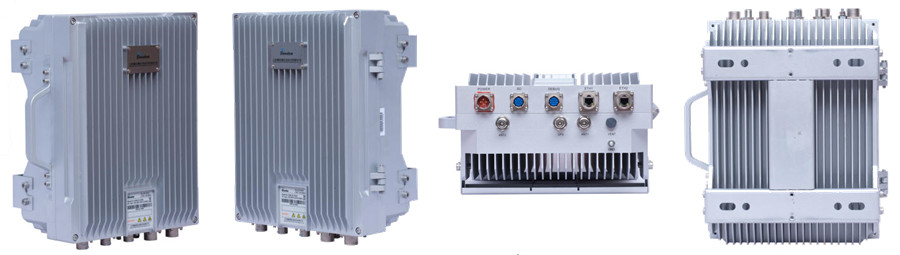

Huawei BTS Remote Radio Units RRU5902 02312SFY 02312QHG For DBS3900&DBS5900

The Remote Radio Unit (RRU) consists of the high-speed interface unit, signal processing unit, power amplifier, duplexer,
extension ports, and power module.

The RRU performs the following functions:

* Receives downlink baseband data from the BBU and sends uplink baseband data to the BBU.
* Receives RF signals from the antenna system, down-converts the signals to intermediate frequency (IF) signals, amplifies the IF signals, performs analog-to-digital conversion, and up-converts RF signals to the transmit (TX) band.
* Multiplexes receive (RX) and TX signals on the RF channel so that these signals can share the same antenna channel, and filters the RX and TX signals.
* Provides a built-in Bias Tee (BT). The built-in BT couples RF signals and OOK signals and transmits them through the TX/RX port A. The built-in BT also supplies power to the tower mounted amplifier (TMA).
* The RRU can work with the Monitoring Extension Box (MEB). The MEB can transmit external RS-485 communication signals and dry node monitoring signals into the RRU, implementing information monitoring and reporting.

* When an RRU is equipped with an AC/DC power module, the RRU and the power module together are called an AC RRU.
