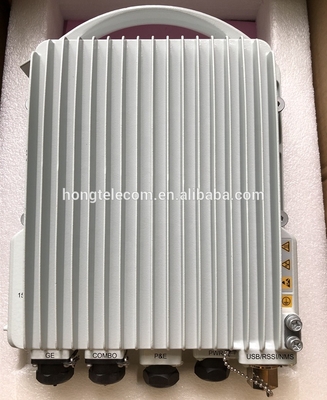

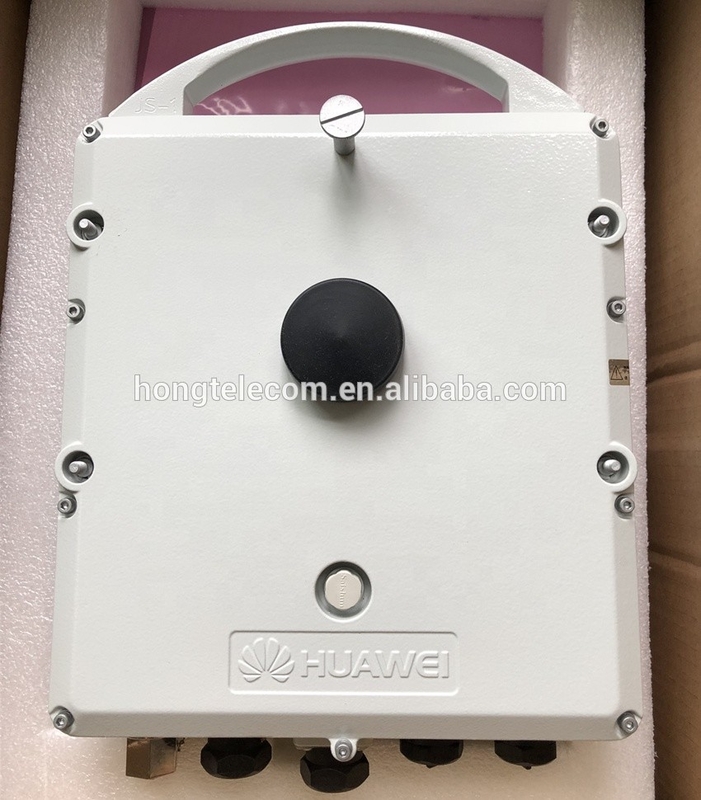

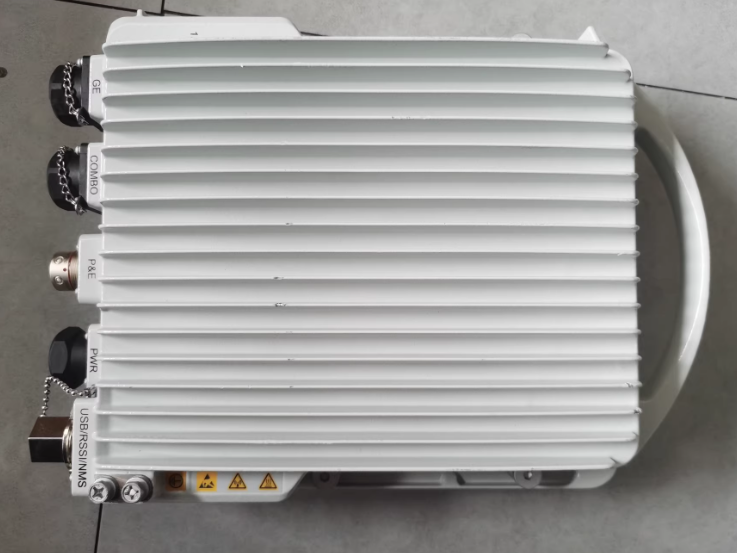

Full Outdoor MicroWave RTN 310 High site 38G-3 F3831260AHA F3831260BHA

Negotiable
MOQ
Negotiable
Price
Full Outdoor MicroWave RTN 310 High site 38G-3 F3831260AHA F3831260BHA
Features Gallery Product Description Request A Quote
Features
Specifications
Model: F3831260AHA F3831260BHA
RTN 310 Chassis Dimensions (H X W X D): 210 X 210 X 90 Mm
Microwave Type: IP Microwave Over Native Ethernet
Frequency Bands: 26/28/32 GHz
Channel Spacings: 7/14/28/40/56 MHz
RF Configuration Mode 1: 1+0 Configuration
RF Configuration Mode 2: 2+0 Configuration
RF Configuration Mode 3: 1+1 HSB/FD/SD Configuration
RF Configuration Mode 4: Multi-directional Site Configuration
RF Configuration Mode 5: XPIC Configuration
Basic Infomation
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: RTN 310
Payment & Shipping Terms
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Product Description
52450403 F3831260AHA Full Outdoor MicroWave,RTN 310,38G,-3,F3831260AHA,1260MHz,Sub Band A,High site,H,38304MHz,38892MHz,DC,2,without doc,WR-28,H01
52450405 F3831260BHA Full Outdoor MicroWave,RTN 310,38G,-3,F3831260BHA,1260MHz,Sub Band B,High site,H,38864MHz,39452MHz,DC,2,without doc,WR-28,H01

C0CC2P002 High Speed Cable,SFP Transmission Cable,2.0m,SFP20M,CC2P0.5B,SFP20M,For Outdoor UV-Resistant LSZH,IP65/IP67
F1330266AHA Full Outdoor MicroWave,RTN 310,13G,-3,F1330266AHA,266MHz,Sub Band A,High site,H,13017MHz,13136MHz,DC,2,Without doc,WR-75,H01
F1330266ALA Full Outdoor MicroWave,RTN 310,13G,-3,F1330266ALA,266MHz,Sub Band A,Low site,H,12751MHz,12870MHz,DC,2,Without doc,WR-75,H01
F1330266BHA Full Outdoor MicroWave,RTN 310,13G,-3,F1330266BHA,266MHz,Sub Band B,High site,H,13129MHz,13248MHz,DC,2,Without doc,WR-75,H01
F1330266BLA Full Outdoor MicroWave,RTN 310,13G,-3,F1330266BLA,266MHz,Sub Band B,Low site,H,12863MHz,12982MHz,DC,2,Without doc,WR-75,H01

F1530315AHA Full Outdoor MicroWave,RTN 310,15G,-3,F1530315AHA,315/322MHz,Sub Band A,High site,H,14942MHz,15061MHz,DC,2,without doc,WR-62,H01
F1530315ALA Full Outdoor MicroWave,RTN 310,15G,-3,F1530315ALA,315/322MHz,Sub Band A,Low site,H,14627MHz,14746MHz,DC,2,without doc,WR-62,H01
F1530315BHA Full Outdoor MicroWave,RTN 310,15G,-3,F1530315BHA,315/322MHz,Sub Band B,High site,H,15040MHz,15159MHz,DC,2,without doc,WR-62,H01
F1530315BLA Full Outdoor MicroWave,RTN 310,15G,-3,F1530315BLA,315/322MHz,Sub Band B,Low site,H,14725MHz,14844MHz,DC,2,without doc,WR-62,H01
F1530315CHA Full Outdoor MicroWave,RTN 310,15G,-3,F1530315CHA,315/322MHz,Sub Band C,High site,H,15138MHz,15257MHz,DC,2,without doc,WR-62,H01

F1530315CLA Full Outdoor MicroWave,RTN 310,15G,-3,F1530315CLA,315/322MHz,Sub Band C,Low site,H,14823MHz,14942MHz,DC,2,without doc,WR-62,H01
F1530420AHA Full Outdoor MicroWave,RTN 310,15G,-3,F1530420AHA,420MHz,Sub Band A,High site,H,14921MHz,15145MHz,DC,2,without doc,WR-62,H01
F1530420ALA Full Outdoor MicroWave,RTN 310,15G,-3,F1530420ALA,420MHz,Sub Band A,Low site,H,14501MHz,14725MHz,DC,2,without doc,WR-62,H01
F1530420BHA Full Outdoor MicroWave,RTN 310,15G,-3,F1530420BHA,420MHz,Sub Band B,High site,H,15138MHz,15348MHz,DC,2,without doc,WR-62,H01
F1530420BLA Full Outdoor MicroWave,RTN 310,15G,-3,F1530420BLA,420MHz,Sub Band B,Low site,H,14718MHz,14928MHz,DC,2,without doc,WR-62,H01

F2831008BHA Full Outdoor MicroWave,RTN 310,28G,-3,F283HA,High site,H,28976MHz,29481MHz,27968MHz,28473MHz,POE,4,Without doc,WR-28,H01,1008MHz,Sub Band B,28976MHz,29481MHz
F2831008BLA Full Outdoor MicroWave,RTN 310,28G,-3,F283LA,Low site,H,27968MHz,28473MHz,28976MHz,29481MHz,POE,4,Without doc,WR-28,H01,1008MHz,Sub Band B,27968MHz,28473MHz
F3230812AHA Full Outdoor MicroWave,RTN 310,32G,-3,F323HA,High site,H,32627MHz,33019MHz,31815MHz,32207MHz,POE,4,Without doc,WR-28,H01,812MHz,Sub Band A,32627MHz,33019MHz
F3230812ALA Full Outdoor MicroWave,RTN 310,32G,-3,F323LA,Low site,H,31815MHz,32207MHz,32627MHz,33019MHz,POE,4,Without doc,WR-28,H01,812MHz,Sub Band A,31815MHz,32207MHz
F3230812BHA Full Outdoor MicroWave,RTN 310,32G,-3,F323HA,High site,H,32991MHz,33383MHz,32179MHz,32571MHz,POE,4,Without doc,WR-28,H01,812MHz,Sub Band B,32991MHz,33383MHz

F3230812BLA Full Outdoor MicroWave,RTN 310,32G,-3,F323LA,Low site,H,32179MHz,32571MHz,32991MHz,33383MHz,POE,4,Without doc,WR-28,H01,812MHz,Sub Band B,32179MHz,32571MHz
F3831260AHA Full Outdoor MicroWave,RTN 310,38G,-3,F3831260AHA,1260MHz,Sub Band A,High site,H,38304MHz,38892MHz,DC,2,without doc,WR-28,H01
F3831260ALA Full Outdoor MicroWave,RTN 310,38G,-3,F3831260ALA,1260MHz,Sub Band A,Low site,H,37044MHz,37632MHz,DC,2,without doc,WR-28,H01
F3831260BHA Full Outdoor MicroWave,RTN 310,38G,-3,F3831260BHA,1260MHz,Sub Band B,High site,H,38864MHz,39452MHz,DC,2,without doc,WR-28,H01
F3831260BLA Full Outdoor MicroWave,RTN 310,38G,-3,F3831260BLA,1260MHz,Sub Band B,Low site,H,37604MHz,38192MHz,DC,2,without doc,WR-28,H01

OptiX RTN 310 (RTN 310 for short) is a full-outdoor product in the OptiX RTN radio transmission system series.



The RTN 310 supports the integrated model.


All functions of the RTN 310 are integrated in an outdoor chassis, which helps to implement zero footprint installation and improves installation efficiency.



Two types of integrated RTN 310 are available: RTN 310 housing an SLC1SHXA2 board and RTN 310 housing an SLC1SXA3 board


Item
RTN 310 Housing an SHXA2 Board
RTN 310 Housing an SXA3 Board
Frequency band
13 GHz, 15 GHz, 18 GHz, 23 GHz, and 38 GHz
26 GHz, 28 GHz, and 32 GHz
Power supply mode
PoE or DC
PoE
Service port
One GE optical port + one GE electrical port, or two optical ports
Two GE optical ports + one GE electrical port

Positioning

1 The RTN 310 is used to provide transmission solutions with low network construction cost for mobile communication networks and private networks.

2 Compared with the traditional split microwave equipment, the RTN 310 integrates all its functions in an outdoor chassis, thereby implementing zero footprint installation. Therefore, the RTN 310 can provide carriers with full-outdoor radio transmission solutions with low network construction cost and operating expense.

3 The RTN 310 supports flexible networking. RTN 310s can form ring or chain backhaul networks for various IP base stations on existing or new networks.

4 The RTN 310 supports 2048QAM, XPIC, PLA, and 1+1 HSB/FD/SD. It can provide high-bandwidth backhaul links for high-capacity 3G/LTE base stations.

5 The main RTN 310 applications on mobile communication networks are as follows:
*  RTN 310 independently form tree or ring backhaul networks to provide links with high capacity, bandwidth, and reliability for 3G/LTE base stations.
* The RTN 310 works with the existing OptiX RTN 900 to provide multi-directional aggregation sites and more functions.
* The RTN 310 works with the ATN to provide a microwave channel solution for transparent transmission on the IP RAN.


Specification
Item
Specifications
Microwave type
IP microwave over native Ethernet
Frequency bands
26/28/32 GHz
Channel spacings
7/14/28/40/56 MHz
Modulation schemes
QPSK Strong/QPSK/16QAM Strong/16QAM/32QAM/64QAM/128QAM/256QAM/512QAM/512QAM Light/1024QAM/1024QAM Light/2048QAM
RF configuration modes
1+0 configuration
2+0 configuration
1+1 HSB/FD/SD configuration
Multi-directional site configuration
XPIC configuration
Channel configuration modes
ACAP
ACCP
CCDP
AM
Supported
ATPC
Supported
Ethernet frame header compression
Supported
PLA
Supported
LLDP
Supported
Service ports
Two FE/GE optical ports
One GE electrical port, which provides the PoE function
Service types
Ethernet services:
E-Line services based on port, port+VLAN, port+QinQ
E-LAN services based on IEEE 802.1D, IEEE 802.1Q, and IEEE 802.1ad bridges
QoS/HQoS
Supported
Clock features
Supported clock sources:
*  Microwave link clock
*  Synchronous Ethernet clock

1588v2 time synchronization
Power supply modes
PoE (power supply through the PI or other PSE equipment)
Chassis dimensions
(H x W x D)
210 mm x 210 mm x 90 mm
Antenna
Single-polarized antennas and dual-polarized antennas with a diameter of 0.3 m to 1.2 m as well as the corresponding antenna feeder accessories
Packing & Delivery

Delivery

1. 3-7 Working days after received the payment.

2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )

Packing

1. Original HUAWEI Carton Package.

2. As customers' requirement.
