E-band full-outdoor microwave transmission device RTN 380AX

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CE FCC RoHS
Model Number:	RTN 380AX

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiable
Price:	Negotiable
Packaging Details:	Export carton package
Delivery Time:	7-15 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 Piece/Pieces per Week

Contact Now

Detailed Product Description

Model:	RTN 380AX	Large Capacity:	10 GE Air-interface Capacity
10GE Ports:	SFP Optical Ports Or DSFP Port	High Modulation Mode:	Up To 512QAM

Product Description

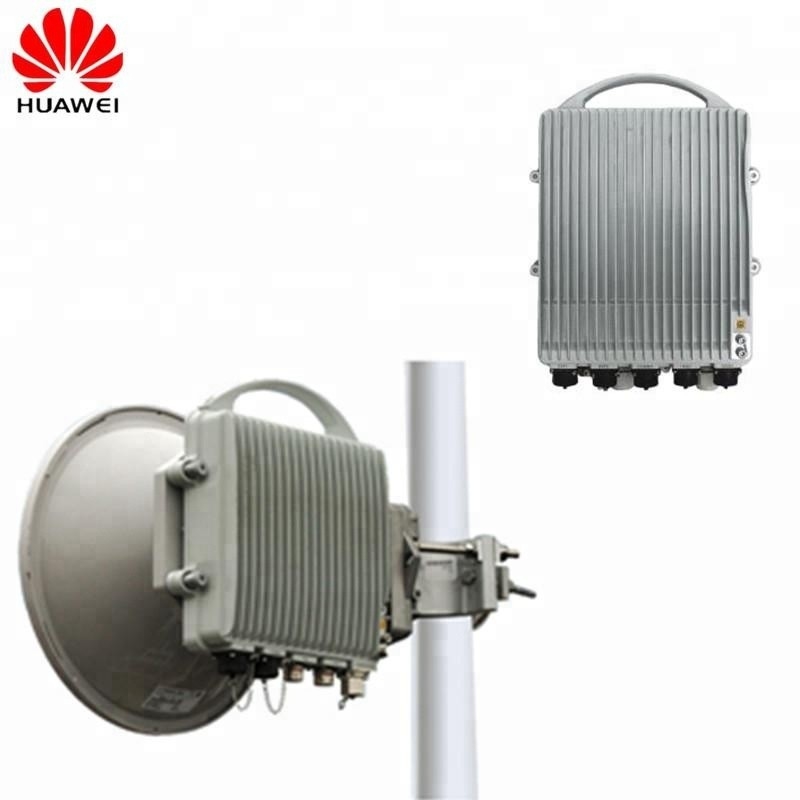

E-band full-outdoor microwave transmission device RTN 380AX

The RTN 380AX is a full-outdoor microwave transmission device operating at 71–76 or 81–86 GHz frequency bands (E-band). The RTN
380AX is applicable to mobile communications networks or dedicated networks. It features large capacity, low inter-site
interference, and rich spectrum resources. It provides large-capacity microwave backhaul or aggregation links and can be used as a
supplement to metro optical networks.
The RTN 380AX is available in two types. One type of RTN 380AX supports only the P&E power supply mode. The other type of RTN
380AX supports two power supply modes: DC and P&E.

RTN 380AX Module Collection
02312MHX	SLEMSITE156	RTN 380AX Low site(DC+P&E option, with 2000Mbps capacity, 500MHz channel space and 1GE interface)
02312MJA	SLEMSITE155	RTN 380AX High site(DC+P&E option, with 2000Mbps capacity, 500MHz channel space and 1GE interface)
PI Module Suite
02312DUC	PI-DC B21	OptiX RTN,PI-DC B21,power injector
Antenna And Antenna Suite Accessories
52431759	A80S03HAC	Microwave Antenna,A80S03HAC,80GHz,300mm,HP,Single Polarization,Compact Mount,43.8dBi,0.9deg,27dB,With English doc
Software
88035QAQ	SLEABASV1R190	RTN 380A/380AX Basic Software Package V100R019(Per Host)
88031LYJ	SLEAMACF01	E-band AMAC Function
Hardware RTU
88034VEH	SLESGEPKS02	RTU-E-band The Additional GE Port (Per Port)
88034VFG	SLEL10GES01	RTU-E-band 10GE Port (Per Port)

Related Products

HUAWEI RTN310

HUAWEI RTN360

HUAWEI RTN380

	RTN310	RTN360	RTN380
Support frequency	13/15/18/23/38GHz	59-64GHz	71-86GHz
Channel spacing	7/14/28/56MHz	200MHz	62.5/125/250/500/750MHz
Modulation mode	QPSK Strong~2048QAM Light	160QAM	QPSK Strong~64 QAM
Throughput	2Gbps Max	400Mbps	4Gbps Max
Business interface	GE	GE	GE, CPRI interface
USB interface	Support	Support	Support
Working environment	Working temperature : -35℃~+55℃ Relative humidity: 5%~100%
Power supply range	Support Ethernet power supply; Support DC power : -38.4V ~ -57.6V
Weight	6kg	2.5kg	3.8kg
