Shenzhen Uonel Technology Co., Ltd. is a Global Provider of Telecommunication Equipment and Services.

Home ProductsHuawei Telecom Equipment

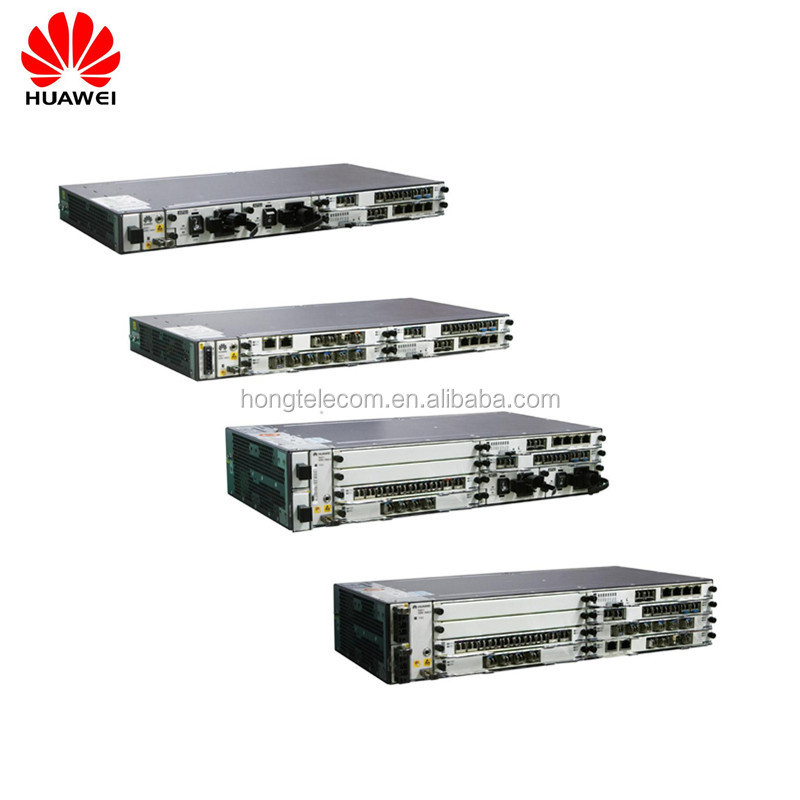

DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU

DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU

  • DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU
DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU
Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CE FCC RoHS
Model Number: OptiX OSN 1800
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export carton package
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 Piece/Pieces per Week
Contact Now
Detailed Product Description
DC Power: -48V / -60V AC Power: 110V - 220V
OSN 1800 I Size: 44*435*220mm OSN 1800 II Size: 88*435*220mm

Contact Us
DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 0
Product Description

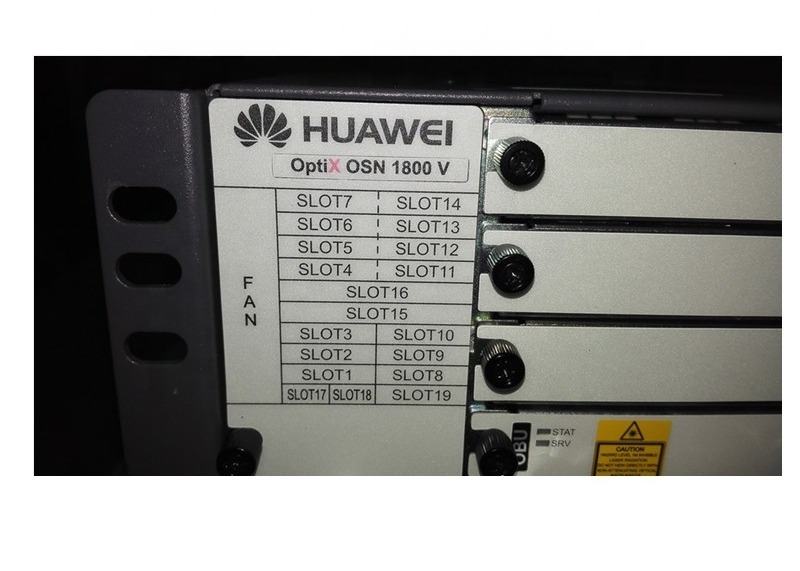

TNF2OBU: Optical booster board

We can offer all boards of Huawei OSN 1800 as below:

TNF1CE6
TNF1CP6
TNF2CP6
TNF1CP8
TNF2ELOM (COMP)
TNF2ELOM (STND)
TNF2ELOM (C9LOG)
TNF1ELQM
TNF1LDE
TNF1LDGF
TNF1LDGF2
TNF2LDGF2
TNF1LDX
TNF1LEG16
TNF1LEM18
TNF1LOE
TNF1LQG
TNF1LQM
TNF2LQM
TNF1LQM2
TNF2LQM2 (STND)
TNF2LQM2 (C9LQM2)
TNF2LQM2 (VA8)
TNF1LQPL
TNF1LQPU
TNF1LSPL
TNF1LSPR
TNF1LSX
TNF2LSX
TNF1LWX2
TNF1TSP
TNF1FC16Q
TNF5TOA
TNF5TQX
TNF5TDX
TNF5ND2
TNF5HUNQ2
TNF5HSNQ2
TNF5EM20
TNF1EF8F
TNF1EM6F
TNF1EG4C
TNF1EX1
TNF1CQ1
TNF1MD1
TNF1FAN
TND1FAN
TNF5FAN
TNC1PIU
TND1PIU
TNF5PIU
TNF1APIU
TNF5APIU
TNF1MR4
TNF1MR4S
TNF1MR8
TNF1SBM1
TNF1SBM2
TNF1SBM4
TNF1SBM8
TNF1DFIU01
TNF1DFIU02
TNF1DSFIU01
TNF1DSFIU02
TNF1FIU
TNF2FIU
TNF1X40
TNF1OBU
TNF2OBU
TNF1OPU
TNF1CTL
TNF1SCC
TNF3SCC
TNF1UXCL
TNF1UXC
TNF5UXCM
TNF5UXCME
TNF5XCH
TNF1ST2
TNF1AUX
TNF1SP3D
TNF1PL3T
TNF1SL1Q
TNF1SL4D
TNF5SLNO
TNF5SL64D
TNF1EGS4
TNF1EFS8
TNF1DMD1
TNF1DMD1S
TNF1DMD2
TNF1DMD2S
TNF1EMR2
TNF1EMR4
TNF1EMR8
TNF1MD8
TNF1MD8S
TNF1MD8M
TNF1MD16M
TNF1MR1
TNF1MR1S
TNF1MR2
TNF1MR2S
TNF1OLP
TNF1SCS
TNF1LSPU

Integrated with both OTN and WDM features, the OptiX OSN 1800 enables various services at the metropolitan network edge, such as FBB, leased line, and wireless services(MBB and front-haul), to share WDM network resources for unified transmission of services on the same network. The following issues of access and transport networks can be resolved:

1. How to realize unified transmission of multiple services ranging from 100 Mbit/s to 10Gbit/s~100 Gbit/s
2. How to provide networks with long-haul transmission features and fewer transmission nodes
3. How to slash maintenance and operation costs
4. How to effectively reduce the ever-increasing equipment power consumption and electricity costs
5. How to realize smooth upgrade of networks and safeguard investments

DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 2
HUAWEI OSN 1800I (DC Power)
DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 4

HUAWEI OSN 1800I (AC Power)

DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 6

HUAWEI OSN 1800II (DC Power)

DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 8

HUAWEI OSN 1800II (AC Power)

OSN 1800 I
OSN 1800 II
Device Size
44(H)*435(W)*220(D) mm
88(H)*435(W)*220(D) mm
Business Slot
3 Slots
7 Slots
Capacity
4 wave access (OTM)
8 wave protection (OADM)
Max Wave
CWDM: 8 Wave ; DWDM: 40 Wave
Single channel maximum rate
100 Gbits/s (OTU4)
Install mode
19''/23'' Cabinet , ETSI 300mm/600mm cabinet the wireless base station outdoor cabinet, FTTx outdoor cabinet, hanging wall, derrick

Power supply mode
AC: 110-220V OR DC: -48/-60V (Support 1+1 backup power input )
Features

1. Transmission of all services over a single network: the OptiX OSN 1800 encapsulates all services, from low-rate services (such as FE services) to high-bandwidth services (such as 10G/100G services of any protocol), into OTN frames for transmission. A highly integrated 1 U chassis can access 16 GE services and 2 U chassis can access 48 GE services.

2. Long-distance transmission with fewer nodes: The standard OTN interface supports the forward error correction (FEC) function. After OTN technology is applied to the traditional CWDM system, a transmission distance of up to 120 km (33 dB) is supported, a great improvement compared to the traditional 80 km limit. When EDFA is added, the transmission can be further increased to 170 km, long enough for metropolitan transmission.

3. Lower maintenance cost and operation cost: Multi-service, long-distance, and large-capacity transmission helps simplify the network structure. The service processing and switching equipment, network management system (NMS), and OSS are all configured at the central node in the system. Equipment with simplified transport functions is deployed in unattended equipment rooms in remote areas for wide coverage. OTN inband management is supported. Unified management and maintenance of all SDH and WDM/OTN equipment can be achieved without any additional investment on the NMS.

4. Hybrid networking of CWDM and DWDM: This networking mode enables smooth upgrade from CWDM to DWDM.

5. Environment-friendly with lower power consumption: The "All over WDM/OTN" technology helps service equipment be deployed centrally at large sites and directly connected to the client equipment by distance extension technology. The number of end nodes can be decreased by 30% to 90%. The OptiX OSN 1800 adopts natural heat dissipation and uses AC power. The case-like design facilitates flexible deployment at any site. A typical 1 U chassis consumes less than 25 W, which is less than the power consumption of a table lamp.

Related Products
DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 10

HUAWEI OSN 3500

DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 12

HUAWEI Metro 100


DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 14

HUAWEI OSN 1500A

DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 16

HUAWEI PTN 3900

DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 18

HUAWEI PTN 1900

DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 20

HUAWEI OSN 8800 T64

Our Company
DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 22
Certifications
DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 24
Warehouse
DWDM transmission system OSN1800 HUAWEI OBU TNF2OBU 26
Packing & Delivery

Delivery

1. 3-7 Working days after receive the payment.

2. Shipment: Sea transportation & Air transportation ( DHL / UPS / TNT / Fedex / EMS )

Packing

1. Original HUAWEI Carton Package.

2. As customers' requirement.
