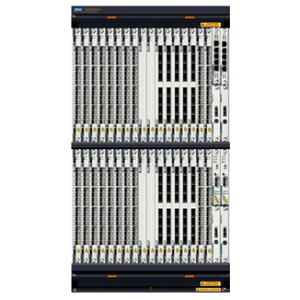

DWDM products ZXONE 8300 N2M1WDM Subrack NX4 ZTE WDM

We can offer all boards of ZTE ZXONE 8300 :

The rapid growth of IP services and the increasing complexity of network topologies require the transport network to realize the end-to-end fast service of services and the capability of multi-service particle access and multi-directional scheduling. At the same time, the flattening of data networks and the IP of mobile networks Further to the transmission network to bring a greater capacity scheduling needs.

ZTE's large-capacity crossover device, the ZXONE 8300 & 8500, supports ODUk-based high-capacity layer cross-over and wavelength-based optical layer crossover to meet service scheduling requirements of various types and granularity.

1. Large capacity ODUk electrical cross
ZXONE 8300 products support 0.8T / 1.6T / 3.2T large-capacity electrical cross-connect, realize ODU0 / 1/2 / 2e / 3 / flex and other particles non-blocking electrical cross for network aggregation, the core node. In this case,

2. Support the complete OTN expenses, the business management is finer
Industry-wide full support for OTN-based electrical layer, optical layer overhead detection and processing, the real end-to-end business management.
Electrical layer, optical layer joint detection, more detailed business management level, fault location more quickly.

3. A variety of flexible business access
STM-N, FE / GE / 10GE / 40GE, OTU1 / 2/3, DVB, ESCON, FC and so on to support 100M-40G any service.
Common service access boards, to meet the needs of operators mixed transmission of a variety of business, effectively reduce the number of spare parts.

4. Photoelectric hybrid cross, intelligent scheduling
Optical layer support 2-9 dimensional ROADM, realize the wavelength end to end automatic configuration;
Electric layer through the T-level electrical cross, to achieve ODUk end-to-end automatic configuration;
Load WASON, realize intelligent control of the optical layer and electrical plane, shorten service deployment time, provide multiple recovery paths for critical services, enhance the survivability of services, and improve the utilization rate of network resources.

5. Perfect clock, time transmission technology
Full support for in-band / out-of-band transmission 1588V2, support synchronous Ethernet transmission, strong support for 3G and LTE deployment.

6. Advanced PIC solutions
PIC technology can integrate the key optical devices (lasers, modulators, detectors, multiplexers, demultiplexers) necessary for WDM systems onto a single chip, optoelectronic integration technology to simplify the management of equipment fiber; bulk expansion, Deploy "zero wait".
Support OTN cross, without any limit plate, the wavelength can be allocated continuously.

7. Ethernet over OTN
L2 aggregation to provide a flexible bandwidth compression ratio for low APRU value data services to provide flexible pipeline.
Bypass function, reduce the investment of router port, improve the efficiency of data transmission, reduce the cost of network construction.

8. High integration, green energy
A single board can access 2-way 40G services or 8-way 10G services or 16-channel 2.5G-rate services. The single-subrack supports 3.2T electrical cross-connect capacity, effectively saving the equipment room area.
Low power consumption, help operators build green energy-saving network.

9. High-reliability system architecture
The main control unit, the power module unit, the clock unit supports redundant 1 +1 hot backup;
The cross unit is equipped with advanced cubic protection (unique cross plate M: N protection), which greatly improves the safety of the equipment.

10 carrier-class reliable protection
Optical fiber grade: Line 1 + 1 protection, optical multiplex section 1 + 1 protection, optical multiplexing section shared protection;
Optical channel level: optical channel sharing protection, optical channel 1 + 1 protection;
ODUk level: ODUk 1 + 1 protection, ODUk shared protection;
L2 layer: ESR protection.
